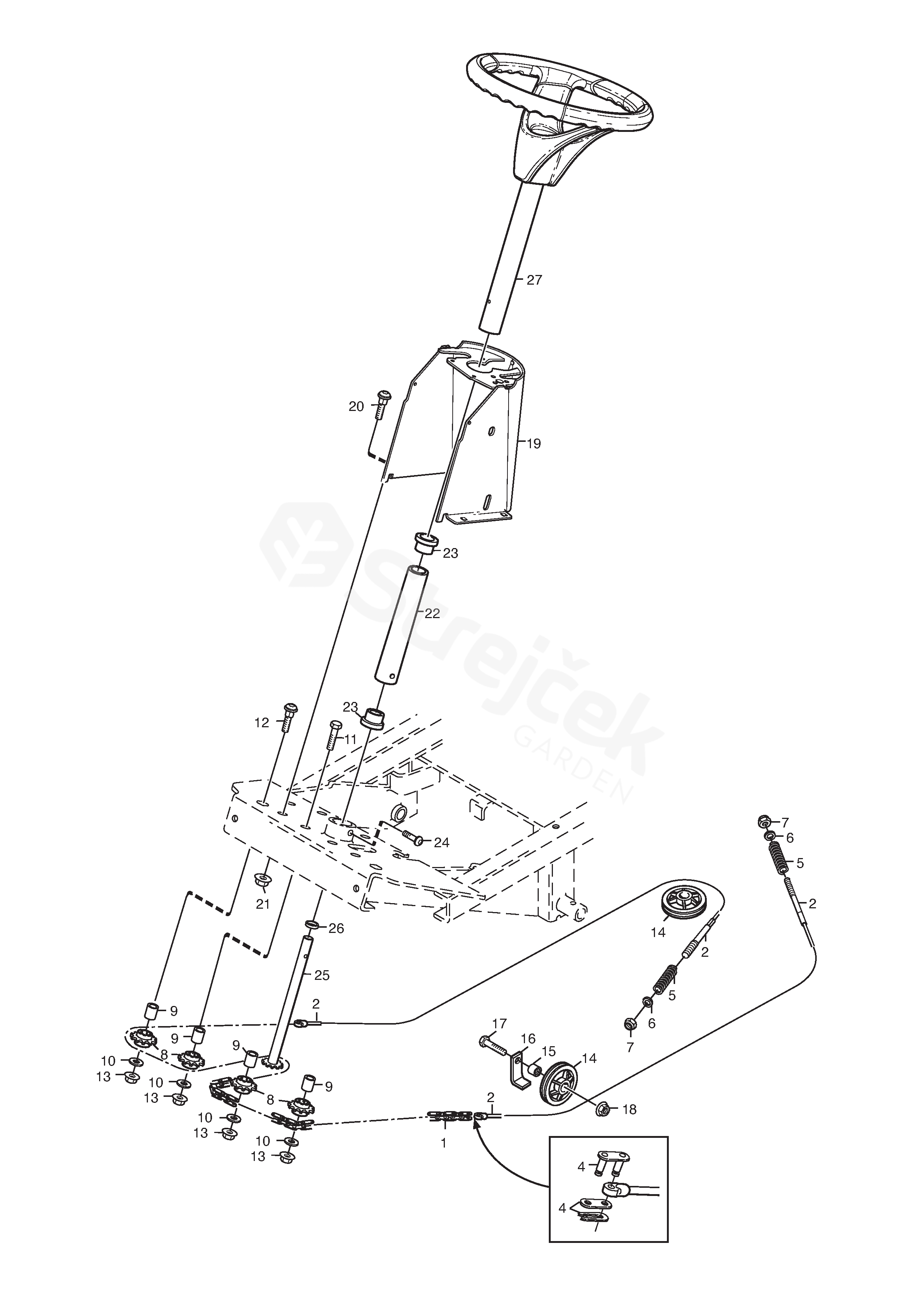

Spare parts - Partlist - PARK COMPACT 16 PARK COMPACT 16 (2009) - Steering

Everything for your machines

PARK COMPACT 16 PARK COMPACT 16 (2009)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK COMPACT 16 (2009)

1	Chain 83 länk	1134-2820-06
2	Steering Wire Sats vä+hö/kit l+r	1134-9084-01
4	Chain Lock	1134-2824-02
5	Spring	1134-3817-01
6	Washer	9699-0090-02
7	Nut	9747-0831-02
8	Sprocket	1134-2816-01
9	Bushing	1134-0041-02
10	Washer	9699-0035-02
11	Screw	9997-1050-16
12	Screw	9897-1040-12
13	Nut	9739-1031-22
14	Steering Pulley Sats 2 st/kit of 2	1134-9025-01
15	Bushing	1134-0041-01
16	Wire Clamp	1134-0046-00
17	Screw	9997-1030-16
19	Steering Console (Yellow) 1-00	1134-5349-01
20	Screw	9897-0820-16
21	Nut	9739-0831-22
22	Steering Column,Lower	1134-1305-05
23	Bearing	1134-1901-01
24	Screw	9893-0616-16
25	Steering Rod	1134-2821-03
26	Spacer	1134-2837-01
27	Steering wheel	1134-5496-01
