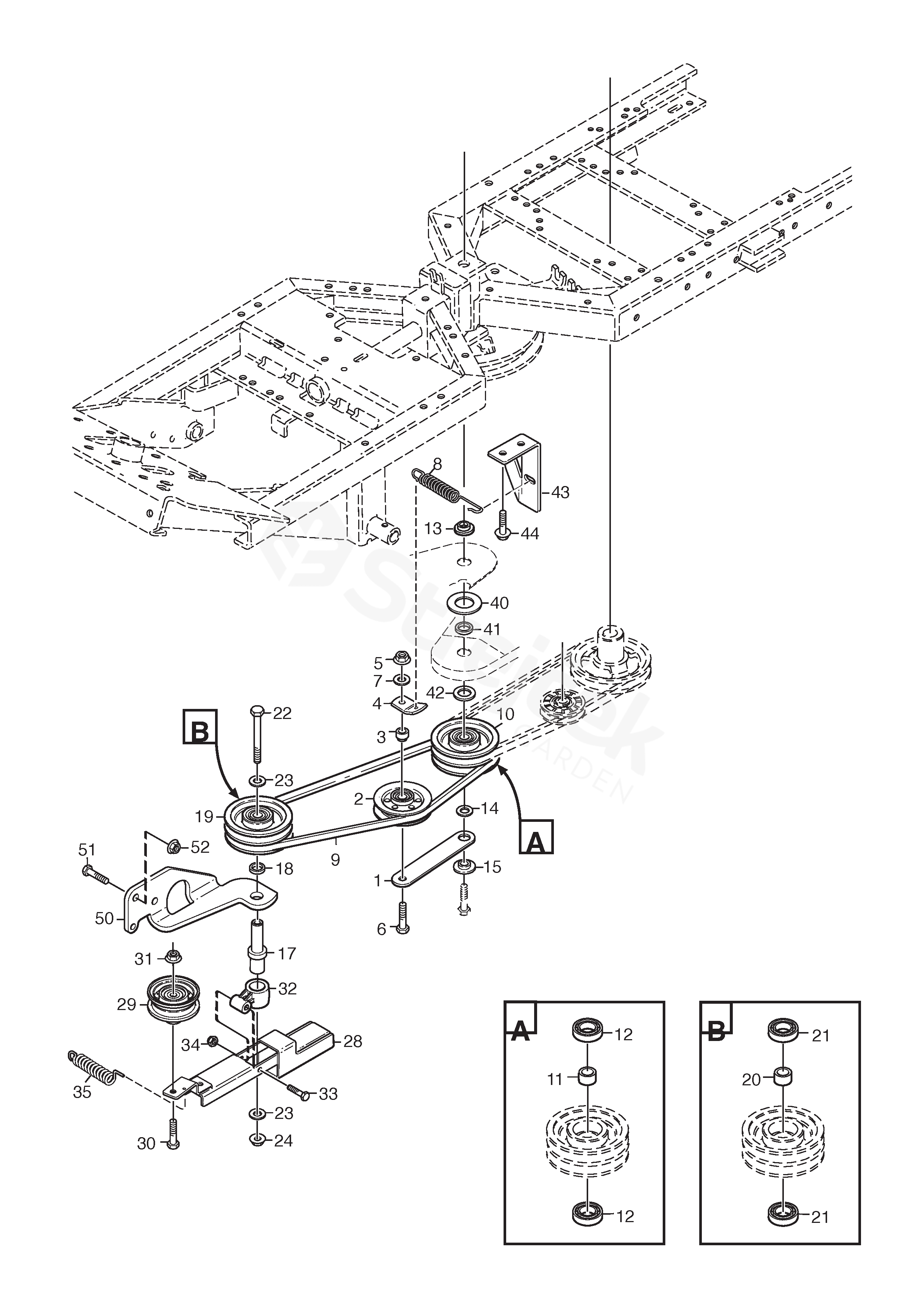

Spare parts - Partlist - PARK COMPACT 16 PARK COMPACT 16 (2011) [13-6103-31] - Power take-off

Everything for your machines

PARK COMPACT 16 PARK COMPACT 16 (2011) [13-6103-31]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK COMPACT 16 (2011) [13-6103-31]

1	Tensioning Wheel Arm	1134-1730-01
2	Tension Wheel	1134-3663-01
3	Spacer	1134-1888-05
4	Spring	1134-1893-01
6	Screw	9997-1060-12
8	Spring	1134-5713-01
9	V-Belt Replaced by Service Code: 1134-9098-01	9585-0148-01
10	Centtre Pulley Assy Inkl. pos 11-12	1137-0004-01
11	Spacer	1134-0051-09
12	Ball Bearing	9549-0019-00
13	Spacer	1134-5548-01
14	Washer	9699-0035-02
15	Washer	1134-0222-00
17	Shaft	1134-5663-01
18	Spacer	1134-0052-00
22	Screw	9997-1011-06
23	Washer	9699-0030-02
24	Nut	9739-1031-22
28	Tension Arm	1137-0386-01
29	Tension Roller Assy	1134-5823-01
30	Screw	9997-1050-16
32	Tension Arm Attachment	1134-6314-01
33	Screw	9997-0645-12
34	Lock Nut	9747-0631-02
35	Spring	1134-5824-01
40	Washer 26x50x2	1137-0353-01
42	Washer 17x30x3	9699-0104-02
44	Screw	9945-0816-16
50	Bracket	1137-0395-01
51	Screw	9997-1020-16
