PARK COMPACT 16 4WD PARK COMPACT 16 4WD (2007) [13-6104-18]
>
Transmission
Back to
PARK COMPACT 16 4WD
PARK COMPACT 16 4WD (2007) [13-6104-18]
Transmission
PARK COMPACT 16 4WD
PARK COMPACT 16 4WD (2007) [13-6104-18]

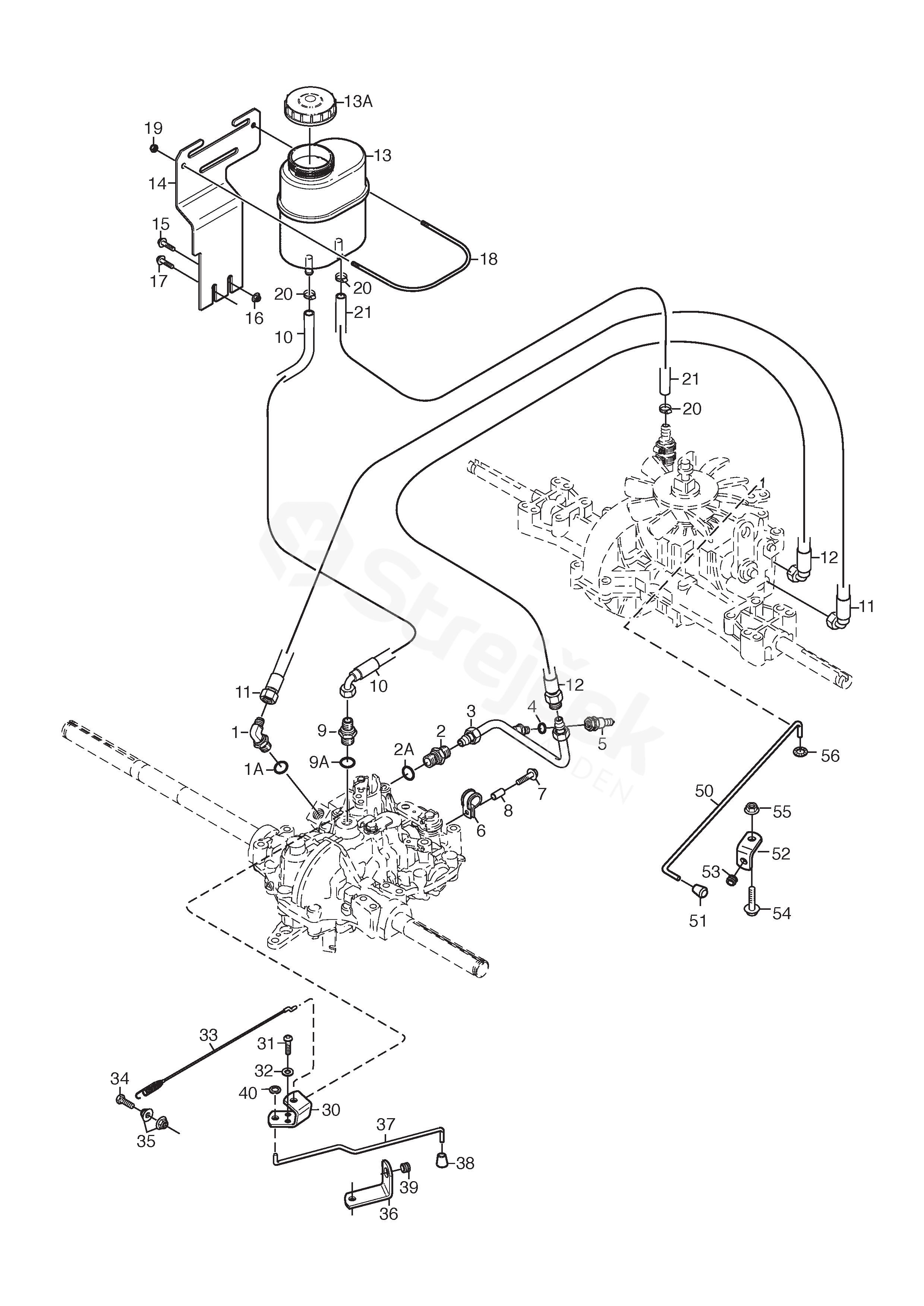

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK COMPACT 16 4WD (2007) [13-6104-18]
1
Hydraulic Angle Coupling
3/4" x 9/16"
1134-6044-01
2
Hydraulic Coupling
3/4"
1134-5875-01
3
Hydraulic Pipe Assy
1134-6039-01
4
Washer
1/4"
1134-4948-01
5
Quick Coupling-Male
1134-6042-01
6
Tube Clamp
9578-0028-01
7
Screw
9959-0825-16
8
Spacer
1134-1565-09
9
Hydraulic Coupling
3/4" x 9/16"
1134-5809-01
10
Hydraulic Tube
1134-5758-01
11
Hydraulic Hose
1134-6048-01
12
Hydraulic Hose
1134-6043-01
13
Hydraulic Oil Tank Assy
1134-6011-01
14
Tank Bracket
1134-6009-01
15
Screw
9959-0820-16
16
Nut
9739-0831-22
17
Screw
9945-0816-16
18
Tank Loop
1134-6030-01
19
Lock Nut
9747-0631-02
20
Hose clamp
9578-0023-04
21
Tube
L = 165 mm
1134-2779-08
30
Bracket
1134-6162-01
31
Screw
9939-0612-16
32
Washer
9699-0025-02
33
Wire
1134-6163-01
34
Screw
9997-0835-12
35
Nut
9739-0831-22
36
Control Bracket
1134-6084-01
37
Control Rod
1134-6083-01
38
Knob
1134-4014-01
39
Cable Protection
1134-2790-01
40
Starlock
9675-0009-02
50
Pull Rod
1134-4015-01
51
Knob
1134-4014-01
52
Angle Bracket
1134-4713-01
53
Cable Protection
1134-2790-01
54
Screw
9959-0816-16
55
Nut
9739-0831-22
56
Starlock
9675-0009-02
13A
Cap-Hydraulic Oil Tank
1134-5965-01
1A
O-Ring
9404-0029-01
2A
O-Ring
9404-0029-01
9A
O-Ring
9404-0029-01
