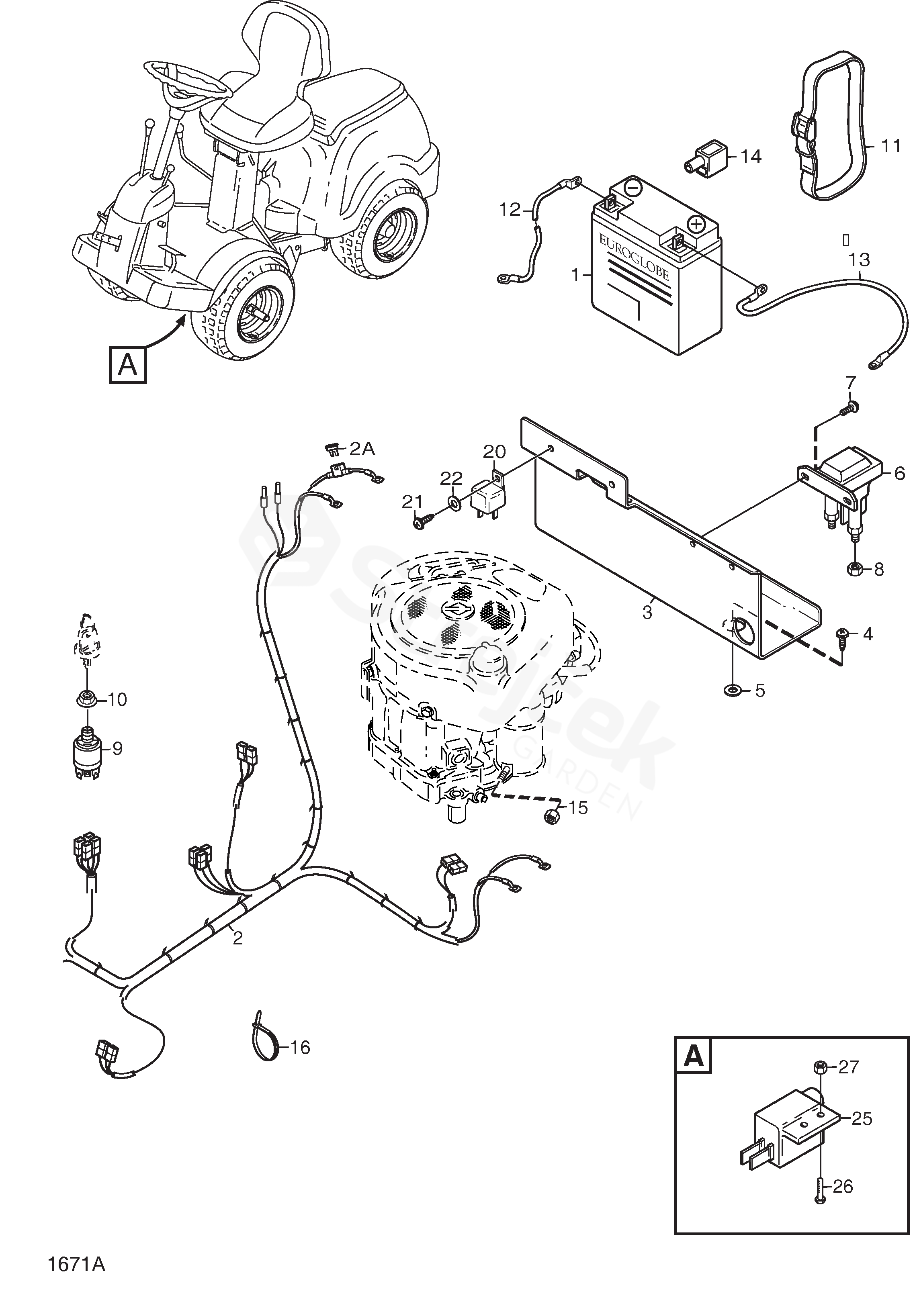

PARK COMPACT 16 4WD PARK COMPACT 16 4WD (2009) [13-6104-49]
>
Electric system
Back to
PARK COMPACT 16 4WD
PARK COMPACT 16 4WD (2009) [13-6104-49]
Electric system
PARK COMPACT 16 4WD
PARK COMPACT 16 4WD (2009) [13-6104-49]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK COMPACT 16 4WD (2009) [13-6104-49]
1
Batterie
1134-4804-01
2
Harness (Park Compact Hst)
1134-5769-01
3
Battery Bracket
1134-5343-01
5
Washer
9699-0060-02
6
Solenoid
Pos 8 incl.
1134-2962-01
8
Nut
9794-5131-02
9
Ignition Switch
1134-4093-01
10
Nut
1134-4749-01
11
Battery Strap
1134-5245-01
12
Cable
1134-2167-01
13
Battery Cable
1134-0234-02
14
Guard Cap
1134-2310-01
15
Nut
9795-3531-02
16
Cable Holder
9579-0003-00
20
Relay
Compact 13
1134-2871-03
21
Screw
Compact 13
9852-8013-16
22
Washer
Compact 13
9699-0099-02
25
Switch
Compact 14, 16
1134-3399-02
26
Screw
Compact 16 (4WD)
9943-0516-16
27
Nut
Compact 14, 16 (2WD)
9747-0531-02
