Spare parts > STIGA > Front Mowers > PARK COMPACT 4WD PARK COMPACT 4WD (2006) > Foot Controls
Back to

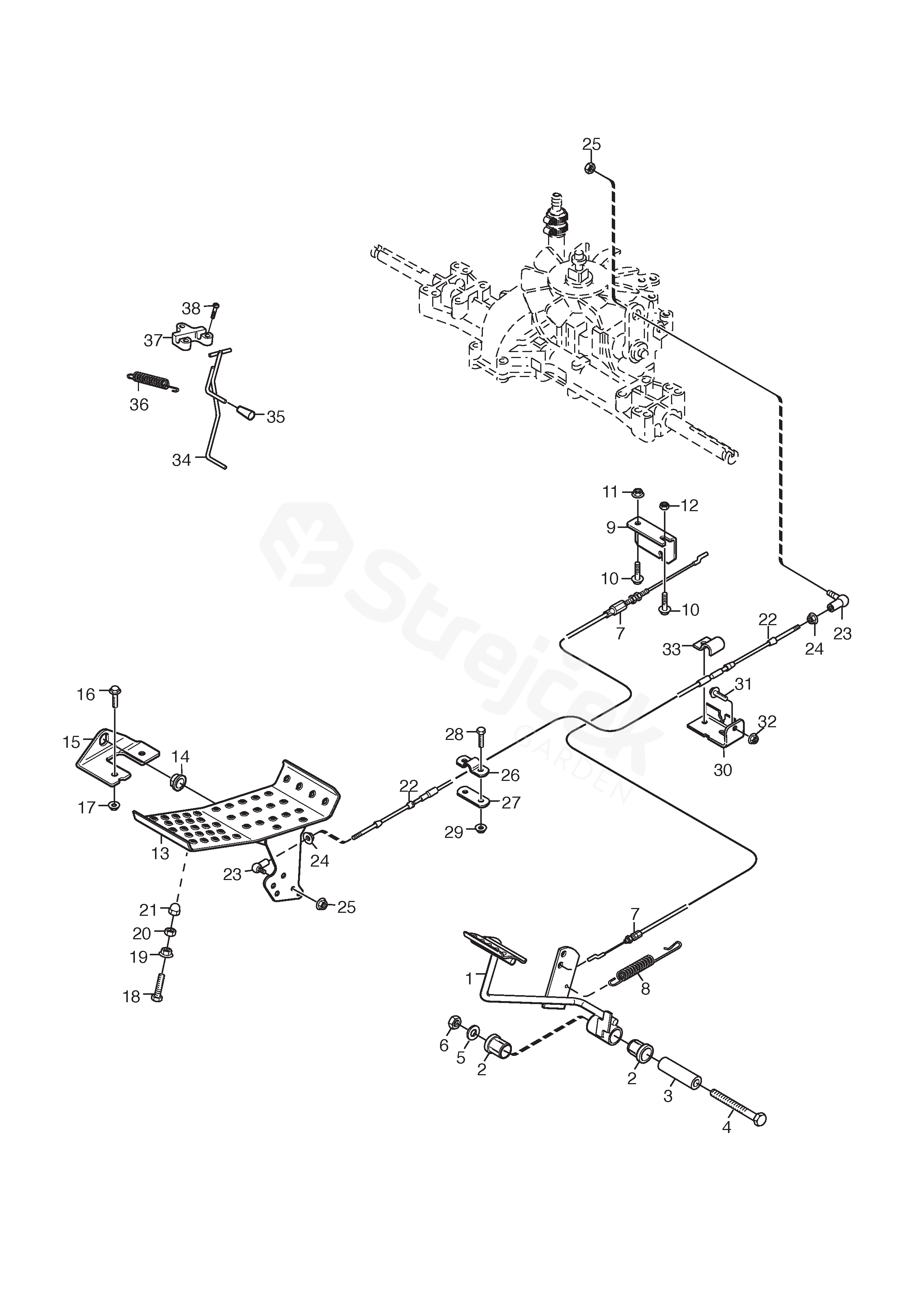

Foot Controls
PARK COMPACT 4WD PARK COMPACT 4WD (2006)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK COMPACT 4WD (2006)
1 Clutch Pedal 1134-5655-01
2 Bearing
Sats 4 st/kit of 4 		1134-9024-01
3 Spacer 1134-5677-02
4 Screw 9997-1070-12
5 Washer 9699-0030-02
6 Nut 9739-1031-22
7 Control Cable 1134-6005-01
8 Spring 4231-0013-00
9 Cabel Holder 1134-3906-01
10 Screw 9959-0816-16
11 Nut 9739-0831-22
12 Nut 9747-0831-02
13 Drive Pedal 1134-4008-03
14 Bearing 1134-2780-01
15 Bracket 1134-2700-01
16 Screw 9959-0820-16
17 Nut 9739-0831-22
18 Screw 9997-0840-16
19 Nut 9739-0831-22
20 Nut 9787-0831-32
21 Nut 9757-0821-02
22 Speed Control Cable 1134-2766-05
23 Elbow Link 9570-0001-00
24 Nut 9739-0531-22
25 Nut 9747-0531-02
26 Attaching clamp 1134-0266-00
27 Clamp Plate 1134-0267-00
28 Screw 9997-0520-16
29 Nut 9739-0531-22
30 Attachment 1134-3395-01
31 Screw 9959-0820-16
32 Nut 9739-0831-22
33 Clamp 1134-2021-01
34 Brake Rod 1134-5353-01
35 Knob 1134-2786-01
36 Brake Spring 1131-1497-01
37 Brake Rod Attachment 1134-4002-01
38 Screw 9838-9516-12
