Spare parts > STIGA > Front Mowers > PARK FARMER PARK FARMER (2005) > Frame
Back to

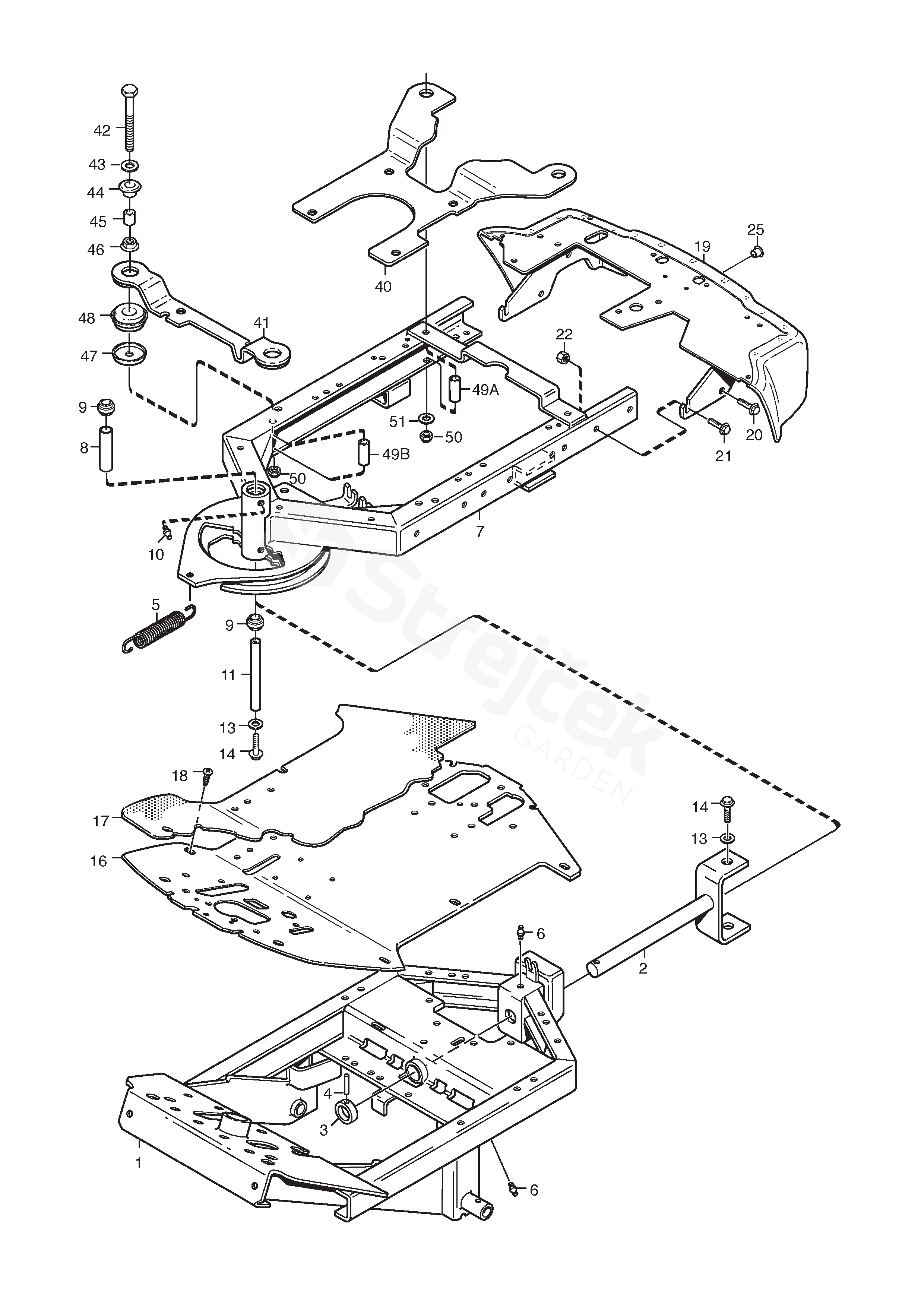

Frame
PARK FARMER PARK FARMER (2005)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK FARMER (2005)
1 Frame-Front 1134-5315-02
2 Fork 1134-3963-02
3 Pivot Shaft Stop 1134-0031-00
4 Locating Pin 9595-0262-00
5 Spring 1134-2171-01
6 Grease Dispenser 9501-0500-00
7 Frame-Rear (Park Diesel) 1134-6046-01
8 Spacer 1134-5705-01
9 Bearing 9547-0001-00
10 Grease Dispenser 9501-0500-00
11 Centre Shaft 1134-5988-01
13 Washer 9699-0035-02
14 Screw 9959-1020-16
16 Floor Plate (5-01) 1134-5294-01
17 Floor Mat 1134-5514-03
18 Screw 9893-0616-16
19 Bumper, Black 1134-5115-02
20 Screw 9945-0816-16
21 Screw 9959-0820-16
22 Nut 9739-0831-22
25 Plug 1134-4100-01
40 Engine Bracket 1134-6037-01
41 Engine Support 1134-4918-01
42 Screw 9997-1011-06
43 Washer 9699-0030-02
44 Isolation Washer 1111-2453-01
45 Spacer 1134-4919-01
46 Nut 9739-1031-22
47 Support Cup 1134-4915-01
48 Vibration Absorber 1134-4920-01
50 Lock Nut 9747-1031-02
51 Washer 9699-0030-02
49A Bushing 1134-0041-03
49B Bushing 1134-0041-06
