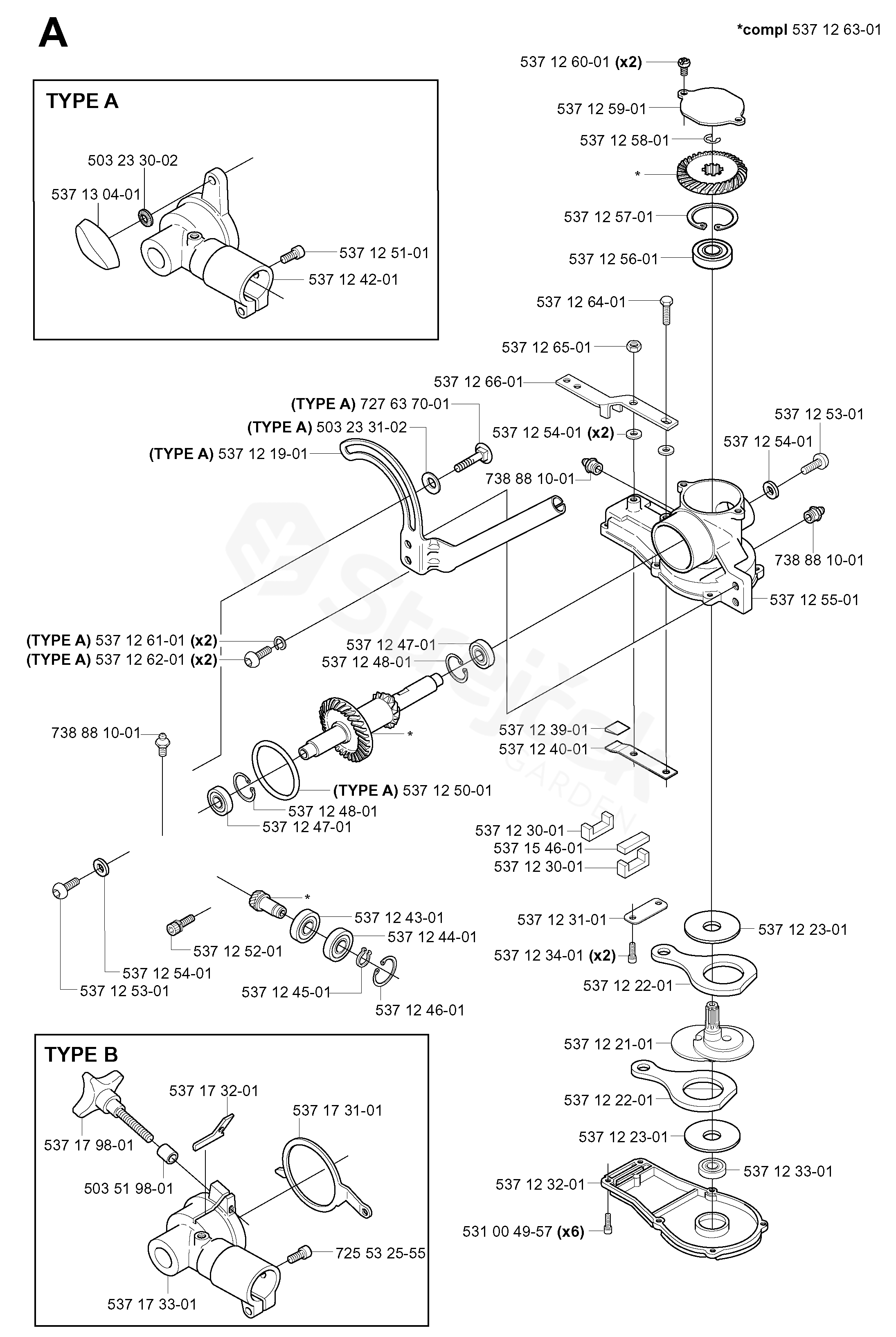

325 HE3 X-SERIES 325 HE3 X-SERIES, 2001-05

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For 325 HE3 X-SERIES, 2001-05

503233002	WASHER	503233002
503233102	SPRING TYPE A	503233102
503519801	SPACING SLEEVE	503519801
531004957	SCREW	531004957
537121901	ANGLE LIMITER 325HE3,HE4 TYPE A	537121901
537122101	SHAFT	537122101
537122201	CONNECTING ROD	537122201
537122301	WASHER	537122301
537123001	SEALING	537123001
537123101	BRACKET	537123101
537123201	HUB CAP	537123201
537123301	BALL BEARING	537123301
537123401	SCREW	537123401
537123901	SEALING	537123901
537124001	SPACING TUBE	537124001
537124201	GEAR HOUSING	537124201
537124301	BALL BEARING	537124301
537124401	BALL BEARING	537124401
537124501	CIRCLIP	537124501
537124601	CIRCLIP	537124601
537124701	BALL BEARING	537124701
537124801	CIRCLIP	537124801
537125001	O-RING TYPE A	537125001
537125101	SCREW	537125101
537125201	SCREW	537125201
537125301	SCREW	537125301
537125401	WASHER	537125401
537125501	GEAR HOUSING	537125501
537125601	BALL BEARING	537125601
537125701	CIRCLIP	537125701
537125801	CIRCLIP	537125801
537125901	HUB CAP	537125901
537126001	SCREW	537126001
537126101	WASHER TYPE A	537126101
537126201	SCREW TYPE A	537126201
537126301	GEAR	537126301
537126401	SCREW	537126401
537126501	NUT	537126501
537126601	BASEPLATE	537126601
537130401	KNOB	537130401
537154601	SEALING	537154601
537173101	ANGLE LIMITER	537173101
537173201	WASHER	537173201
537173301	GEAR HOUSING	537173301
537179801	KNOB	537179801
725532555	SCREW IHSCM	725532555
727637001	SCREW RSQM TYPE A	727637001
738881001	LUBRICATION NIPPLE	738881001
