Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
PARK PRESIDENT HST PARK PRESIDENT HST (1999) [13-1358-22]
>
Transmission
Back to
PARK PRESIDENT HST
PARK PRESIDENT HST (1999) [13-1358-22]
Transmission
PARK PRESIDENT HST
PARK PRESIDENT HST (1999) [13-1358-22]

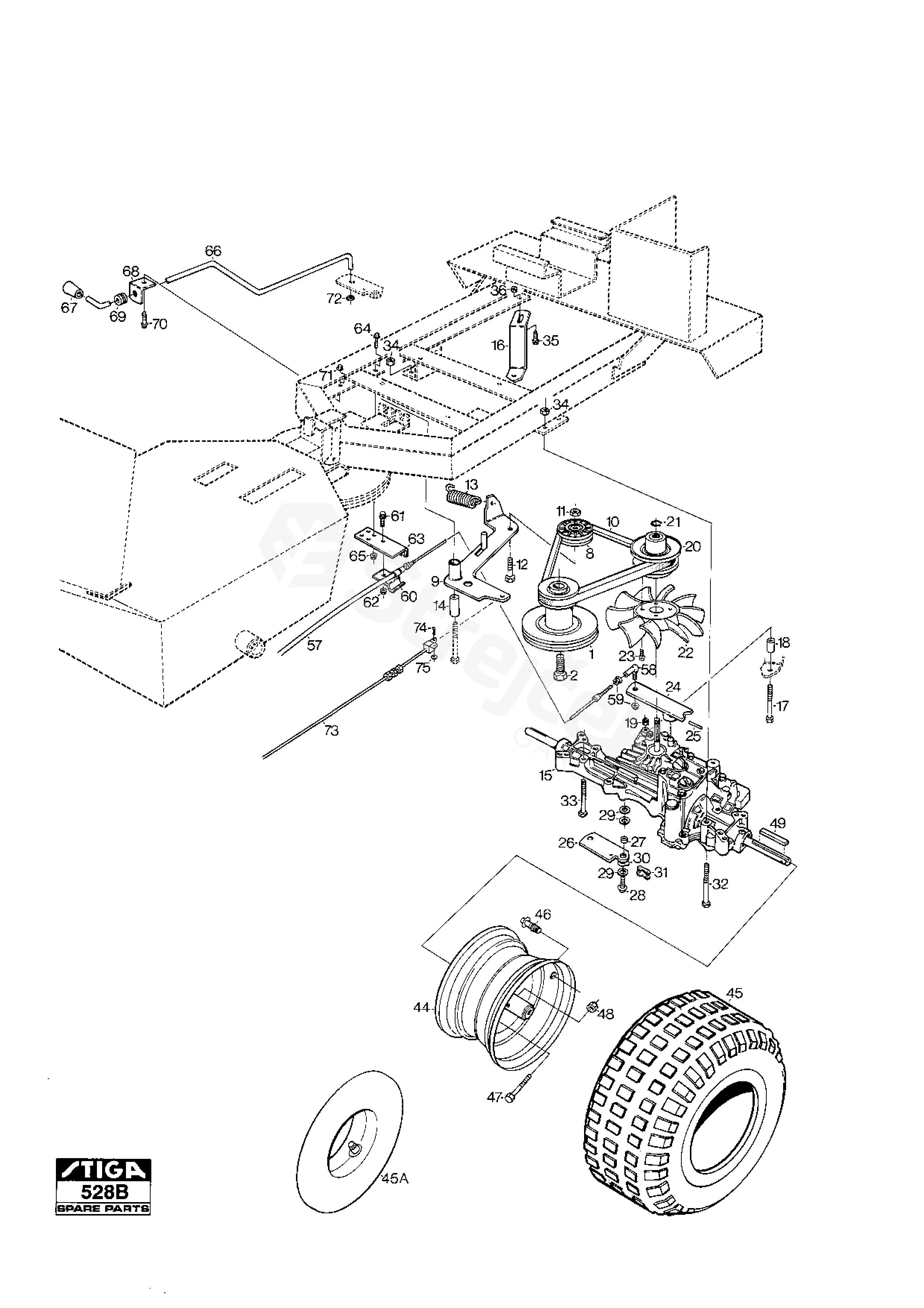

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRESIDENT HST (1999) [13-1358-22]
1
Engine Pulley
1134-2020-01
2
Screw
9987-5338-12
8
Tension Roller (Black)
1134-9027-01
9
Tension Arm
1134-2015-03
10
V-Belt
9502
1134-9036-01
11
Nut
9799-1031-02
12
Screw
9997-1030-16
13
Spring
1134-0645-00
14
Spacer
1134-1565-01
15
Transaxle
Kanzaki K55B
1134-3364-01
16
Bar
1134-3401-01
17
Screw
9997-0860-16
18
Bushing
1134-0041-02
19
Nut
9747-0831-02
20
Belt Pulley
1134-3407-01
21
CLock ring
9650-0015-04
22
Fan
1134-3552-01
23
Screw
9959-0612-16
24
Control Lever
1134-3409-01
25
Locating Pin
9595-0258-00
26
Lever
1134-3414-01
27
Spacer
1134-2427-02
28
Screw
9942-0830-16
29
Washer
9699-0056-02
30
Washer
9696-0013-01
31
Chain Lock
1134-3413-01
32
Screw
L = 75 mm
9997-0875-12
33
Screw
L = 70 mm
9997-0870-16
35
Screw
9959-0820-16
44
Rim-rear
1134-3175-01
45
Tyre
16 x 7.50 - 8
9545-0116-00
46
Valve Assy.
9545-0500-00
47
Screw
9997-0840-16
49
Key
1134-2471-01
57
Speed Control Wire
1134-2766-03
58
Elbow Link
9570-0001-00
59
Nut
9739-0531-22
60
Clamp
1134-2021-01
61
Screw
9959-0816-16
62
Nut
9739-0831-22
63
Angle Plate
1134-3400-01
66
Control Rod
1134-3415-01
67
Knob
1134-2786-01
68
Bracket
1134-2789-01
69
Cable Protection
1134-2790-01
72
Locking washer
9675-0012-02
73
Clutch Cable
1134-2030-11
74
Rivet
9646-0036-22
75
Starlock
9675-0008-02
