Spare parts > STIGA > Front Mowers > PARK ROYA PARK ROYAL (OVERSEAS) (2004) > Wheels
Back to
Wheels
PARK ROYA PARK ROYAL (OVERSEAS) (2004)

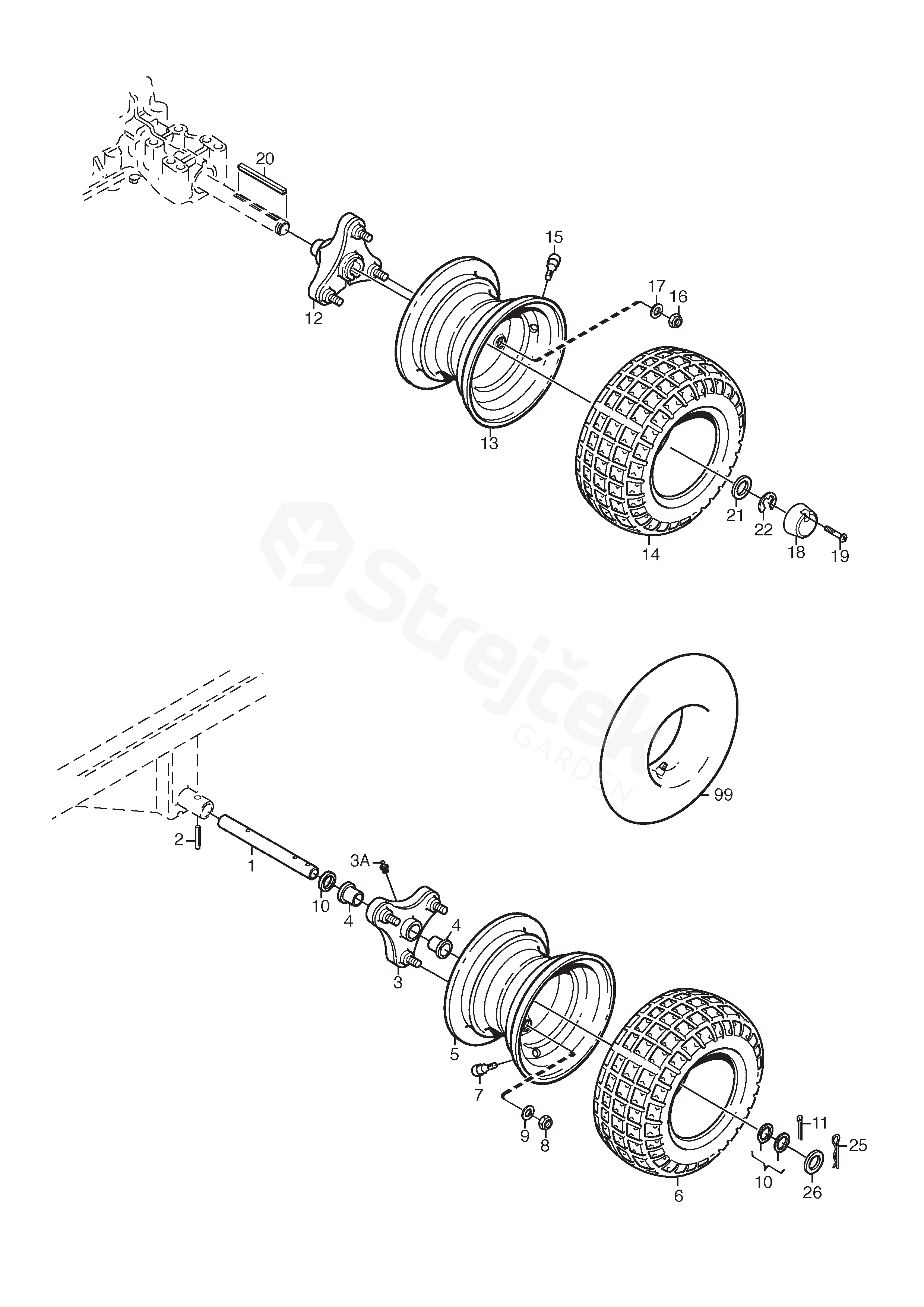

Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK ROYAL (OVERSEAS) (2004)
1 Front Axle 1134-0075-01
2 Locating Pin 9595-0258-00
3 Wheel Hub Assy 1134-4844-05
4 Bushing 137038009/0
5 Rim 1134-4558-01
6 Tyre
16 x 7.50 - 8 		9545-0116-00
7 Valve Assy. 9545-0500-00
8 Lock Nut 9747-1031-02
9 Washer 9699-0035-02
10 Washer 1134-0341-01
11 Cotter Pin 9599-0080-02
12 Wheel Hub Assy 1134-4844-02
13 Rim 1134-4558-01
14 Tyre
16 x 7.50 - 8 		9545-0116-00
15 Valve Assy. 9545-0500-00
16 Lock Nut 9747-1031-02
17 Washer 9699-0035-02
18 Hub Cap 1134-4796-01
19 Screw 9947-0540-19
20 Key 1134-2471-01
21 Washer 9699-0042-02
22 Lock Ring 9653-0001-04
25 Spring Pin 9598-0003-02
26 Washer 9699-0042-02
3A Grease Dispenser 9501-0500-00
