PARK SENATOR PARK SENATOR (2002)
>
Engine
Back to
PARK SENATOR
PARK SENATOR (2002)
Engine
PARK SENATOR
PARK SENATOR (2002)

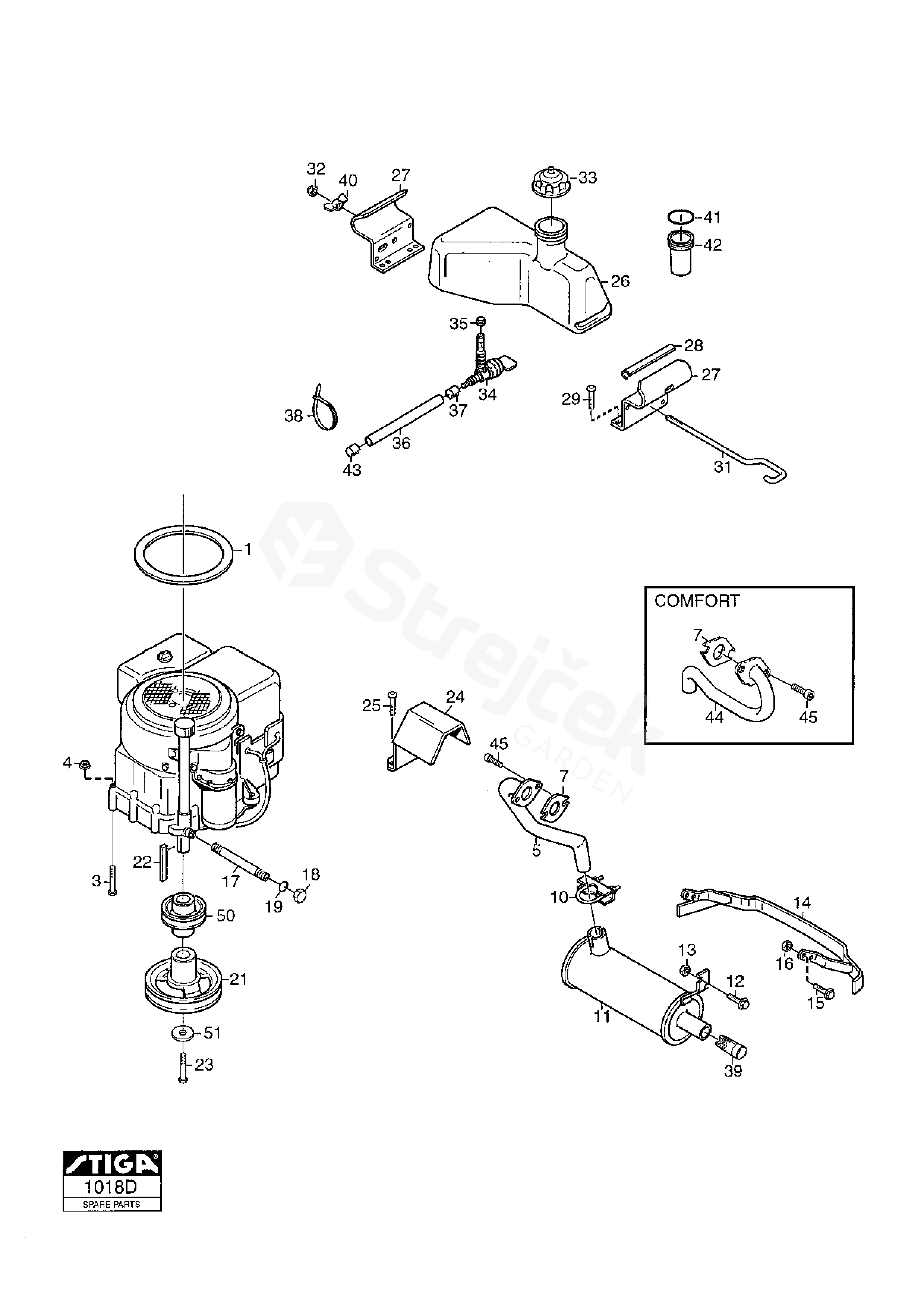

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK SENATOR (2002)
1
Seal Ring (15 Mm)
H = 15 mm
1134-4222-02
5
Exhaust Pipe
1134-4110-01
7
Gasket
1134-0433-00
10
Clamp
9578-0011-00
11
Muffler
1134-4952-01
12
Screw
9959-0820-16
13
Nut
9739-0831-22
14
Muffler Guard, Black
1134-4046-02
17
Oil Drain Pipe Assy (L=140)
1134-4978-01
18
Plug
1134-4976-01
19
Washer
1134-4977-01
21
Engine Belt Pulley
1134-4999-01
22
Key
9600-0251-01
23
Screw
9987-5332-12
24
Heat protection
1134-2733-01
25
Screw
9893-0616-16
26
Fuel Tank Assy (W.Cap)
Inkl. 33-37, 41-42
1134-4757-01
27
Fuel Tank Bracket
1134-4273-03
28
Protection Strip
1134-2941-01
31
Tank Rod (M8)
1134-4356-01
32
Nut
9747-0831-02
33
Fuel Cap
1134-4063-01
34
Fuel Shut-Off Valve
1134-3224-01
35
Grommet
1134-3225-01
36
Fuel Tube
L = 350 mm
1134-2975-07
37
Hose clamp
9578-0023-02
38
Cable Holder
9579-0003-00
39
Muffler Insert
1134-4955-01
40
Wing Nut
1134-4481-01
41
O-Ring
9404-0025-01
42
Fuel Tank Insert
1134-4411-01
45
Screw
1134-4930-01
50
Engine Belt Pulley
1134-5000-01
51
Washer
1134-5017-01
3A
Screw
L = 40 mm
9997-0840-16
3B
Screw
L = 45 mm
9997-0845-12
3C
Screw
L = 75 mm
9997-0875-12
