Spare parts > STIGA > Front Mowers > PARK 75 YEARS LIMITED EDITION PARK 75 YEARS LIMITED EDITION (2009) > Steering
Back to

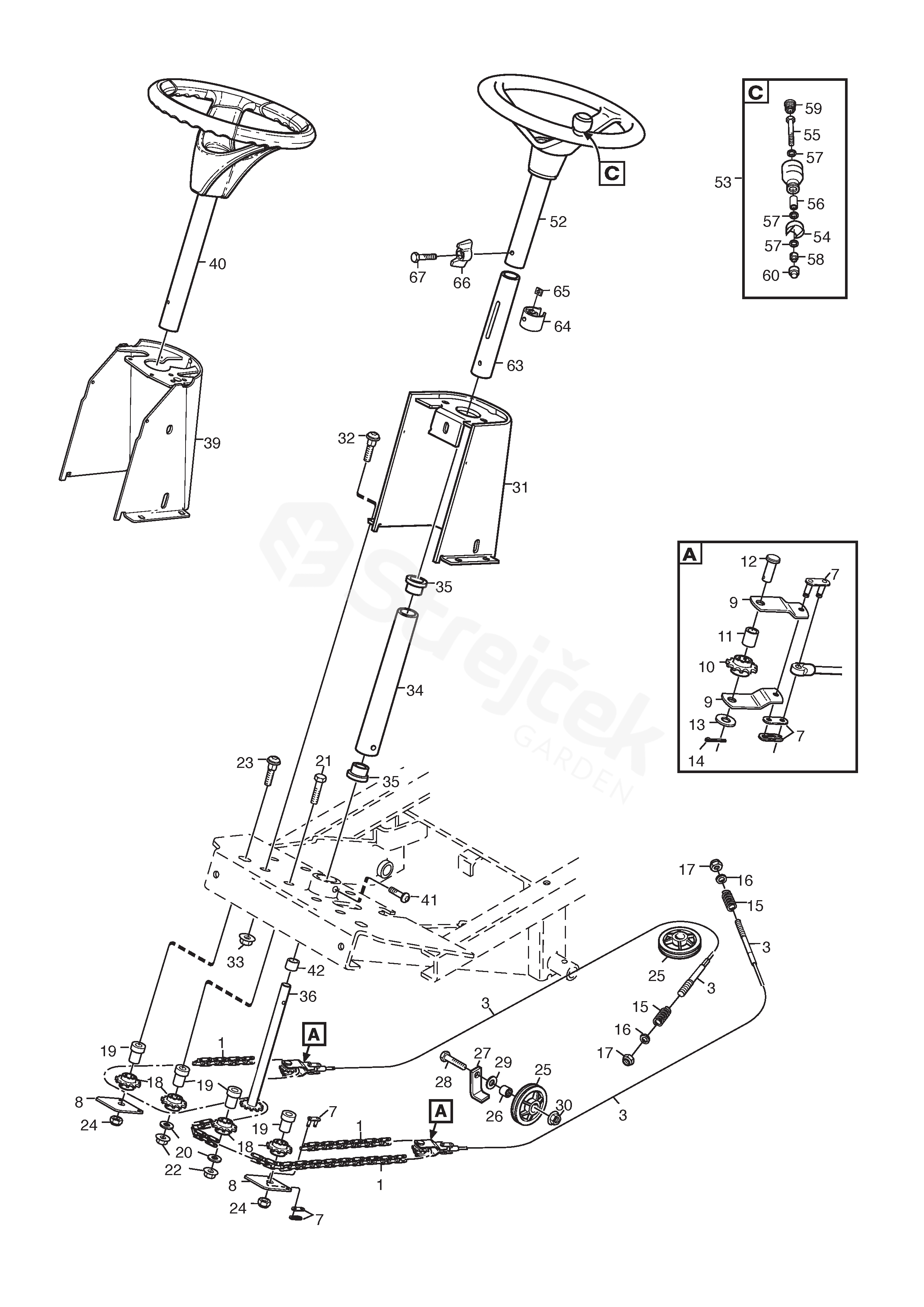

Steering
PARK 75 YEARS LIMITED EDITION PARK 75 YEARS LIMITED EDITION (2009)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 75 YEARS LIMITED EDITION (2009)
1 Chain
129 länk 		1134-6374-10
3 Steering Wire
Sats vä+hö/kit L+R 		1134-9099-01
7 Chain Lock 1134-2824-02
8 Attachment 1134-5652-01
9 Bracket 1134-5651-01
10 Sprocket 1134-2816-01
11 Bushing 1134-0041-02
12 Pin 1134-4817-01
13 Washer 9699-0035-02
14 Split pin 9599-0054-02
15 Spring 1134-3817-01
16 Washer 9699-0090-02
17 Nut 9747-0831-02
18 Sprocket 1134-2816-01
19 Spacer 1134-5653-01
20 Washer 9699-0035-02
21 Screw 9997-1060-12
22 Nut 9739-1031-22
23 Screw 9897-1060-12
24 Nut 9731-1031-22
25 Steering Pulley
Sats 2 st/kit of 2 		1134-9025-01
26 Bushing 1134-0041-01
27 Wire Clamp 1134-0046-00
28 Screw 9997-1040-16
29 Washer 9699-0035-02
30 Nut 9739-1031-22
32 Screw 9897-0820-16
33 Nut 9739-0831-22
34 Steering Column,Lower 1134-1305-05
35 Bearing 1134-1901-01
36 Steering Rod 1134-2821-05
39 Steering Console (Yellow) 1-00 1134-5349-01
40 Steering wheel 1134-5496-01
41 Screw 9893-0616-16
42 Spacer 1134-2837-03
