Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
Park 416 P VM Park 416 P VM (2018) [2F6220541/ST1]
>
Electrical Parts
Back to
Park 416 P VM
Park 416 P VM (2018) [2F6220541/ST1]

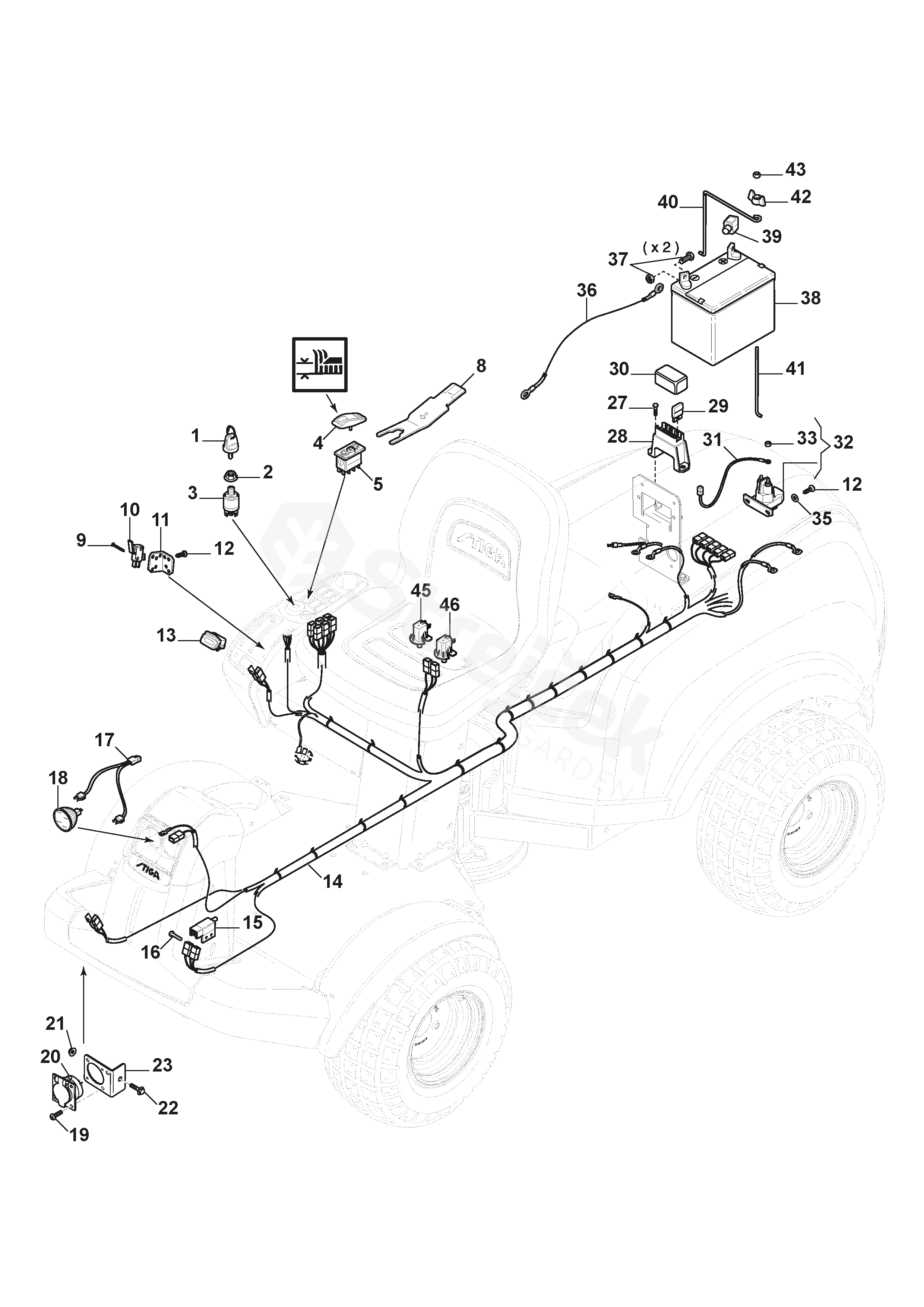

Electrical Parts
Park 416 P VM
Park 416 P VM (2018) [2F6220541/ST1]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park 416 P VM (2018) [2F6220541/ST1]
1
Ignition Key
1134-4734-01
2
Nut
1134-4749-01
3
Ignition Switch
1134-4093-01
4
Switch Cover-Height Adjust
9400-0280-03
5
Switch
9400-0282-01
8
Tool
Tillbehör/Accessory
9400-0290-01
9
Screw
L = 16 mm
9840-7716-16
10
Microswitch
9400-0360-01
11
Switch Bracket
1134-5358-01
12
Screw
9852-8013-16
13
Hour Meter
9400-0384-01
14
Wiring harness
187040310/0
15
Switch
1134-3399-02
16
Screw
9943-0516-16
17
Wiring harness
1134-7505-01
18
Led-Lamp
118459102/0
19
Screw
112735105/0
20
Female Connector
1134-7535-01
21
Nut
112154220/0
22
Screw
9959-0820-16
23
Attachment 2010
1137-0075-01
28
Fuse Holder
1134-3491-01
29
Fuse (10A) Red
30A
1134-3496-01
30
Cover-Fuse Holder
1134-3631-01
31
Cable
1134-4970-02
32
Solenoid
118736112/0
33
Nut
9743-5121-32
35
Washer
9699-0060-02
36
Battery Cable
1134-0234-02
37
Screw
1134-6113-02
38
Battery
1134-5751-01
39
Guard Cap
1134-2310-01
40
Battery Loop
1134-5994-01
41
Battery Loop
1134-5995-01
42
Wing Nut
1134-4481-02
43
Nut
112154510/0
45
Switch
1134-3156-01
46
Switch
1134-3156-02
