Spare parts > STIGA > Front Mowers > Park 420 LM Park 420 LM (2014) > Wheels
Back to
Wheels

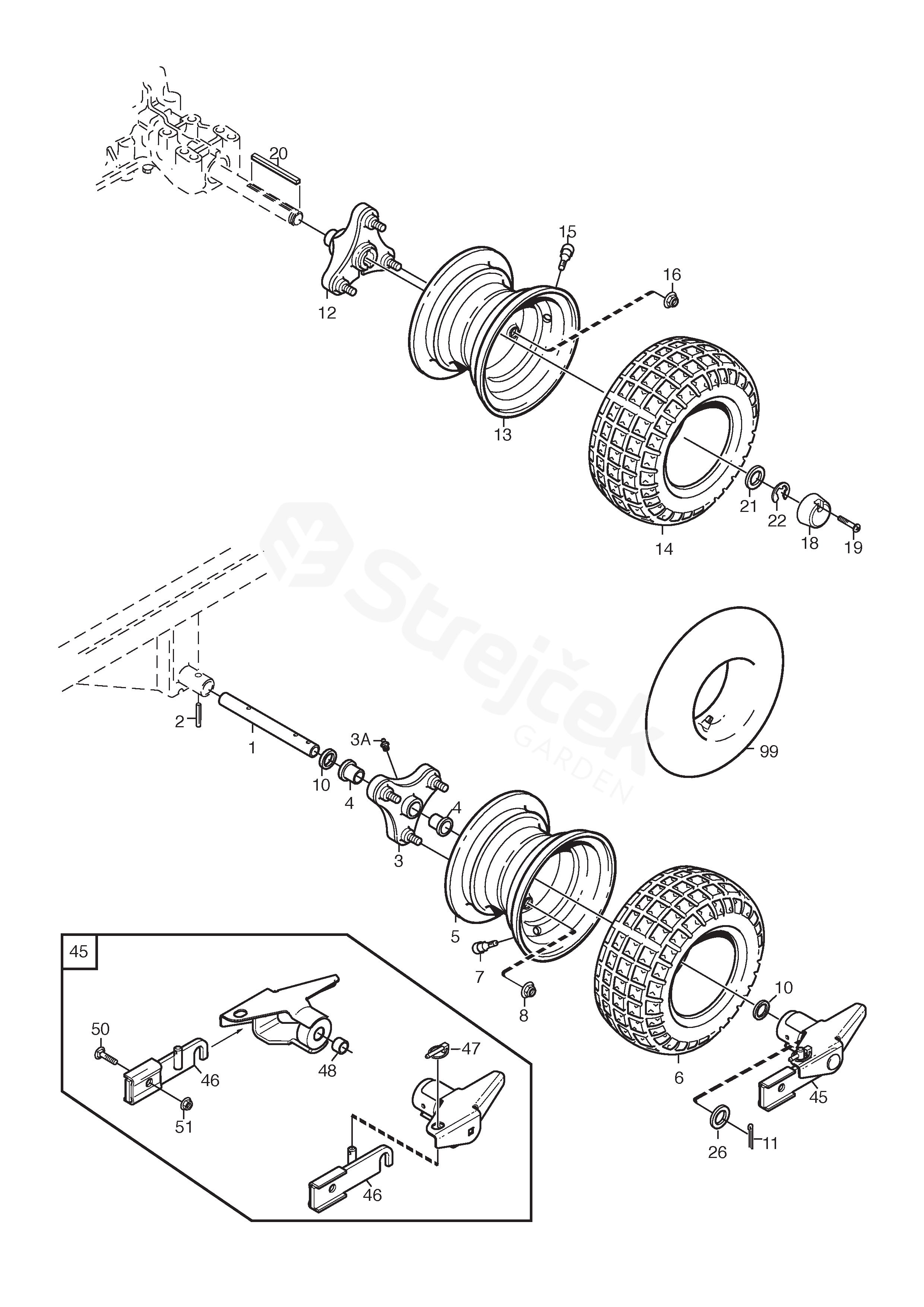

Park 420 LM Park 420 LM (2014)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 420 LM (2014)
1 Front Axle 1134-0075-01
2 Locating Pin 9595-0258-00
3 Wheel Hub Assy 1134-4844-05
4 Bushing 137038009/0
10 Washer 1134-0341-01
11 Cotter Pin 9599-0080-02
12 Wheel Hub Assy 1134-4844-02
13 Rim 1134-4558-01
14 Tyre
Compact 14 		9545-0126-01
15 Valve Assy. 9545-0500-00
16 Nut 9731-1031-22
18 Hub Cap 1134-4796-01
19 Screw 9947-0540-19
20 Key 1134-2471-01
21 Washer 9699-0042-02
22 Lock Ring 9653-0001-04
45 Rac Quick Connection 2Wd
Inkl. pos 11,26,46-51 		13-0992-61
46 Attachment Kit
Inkl. pos 50-51 		1134-7465-01
47 Locking Pin 1137-0077-01
48 Bearing 9548-0026-01
50 Screw 9898-1035-16
51 Nut 9739-1031-22
99 Inner Tube
Reservdel/spare part 		9545-0203-00
