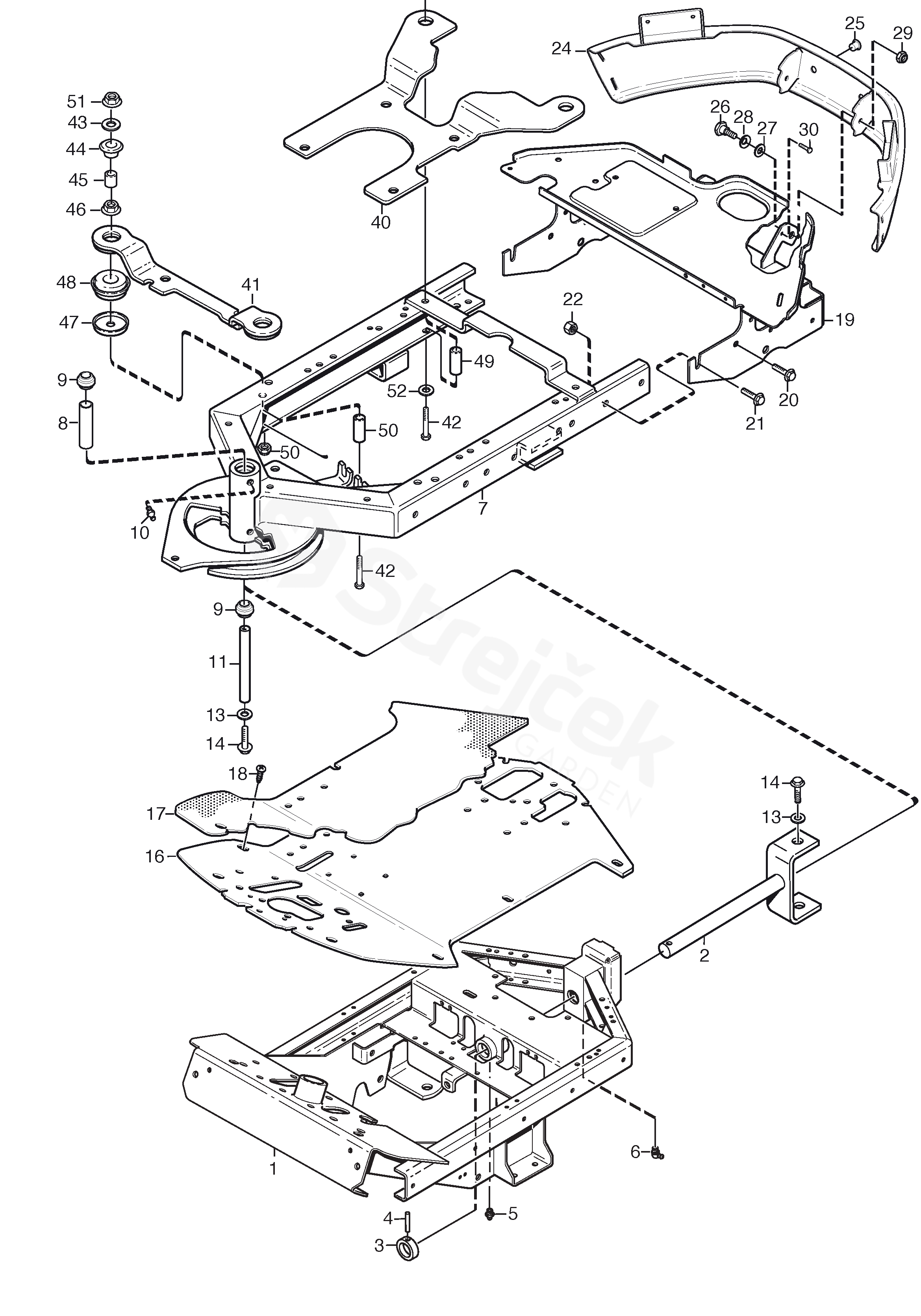

Spare parts - Partlist - Park 540 DPX Park 540 DPX (2016) - Frame

Everything for your machines

Park 540 DPX Park 540 DPX (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park 540 DPX (2016)

1	Frame-Front Incl. 2-3-4-5-6	387800013/0
2	Fork	1134-3963-02
3	Pivot Shaft Stop	1134-0031-00
4	Locating Pin	9595-0262-00
5	Grease Dispenser Rak/straight	9501-0500-00
6	Grease Nipple M6 90 90°	9501-0504-01
7	Frame-Rear (Park Diesel)	1134-6046-01
8	Spacer	1134-5705-01
9	Bearing	9547-0001-00
10	Grease Dispenser	9501-0500-00
11	Centre Shaft	1134-5988-01
13	Washer	9699-0035-02
14	Screw	9959-1025-16
16	Floor Plate	1134-6586-01
17	Label	114369182/0
18	Screw	9893-0616-16
19	Tank Shelf Assy	1134-5944-01
20	Screw	9945-0816-16
21	Screw	9959-0820-16
22	Nut	112154220/0
24	Rear Bumper	387457003/0
25	Plug	1134-4100-01
26	Screw	1134-0240-00
27	Washer	1134-4242-01
28	Washer	9665-0002-00
29	Nut	112155000/0
30	Screw	9943-0516-16
40	Engine Bracket	1134-6037-01
41	Engine Support	1134-4918-01
42	Screw	9997-1011-06
43	Washer	9699-0030-02
44	Washer	322672201/0
45	Spacer	1134-4919-01
46	Nut	9739-1031-22
47	Support Cup	1134-4915-01
48	Vibration Absorber	1134-4920-01
49	Bushing L = 55 mm	1134-0041-03
50	Collar L = 51,2 mm	1134-6887-01
51	Nut	9731-1031-22
52	Washer	9699-0030-02
