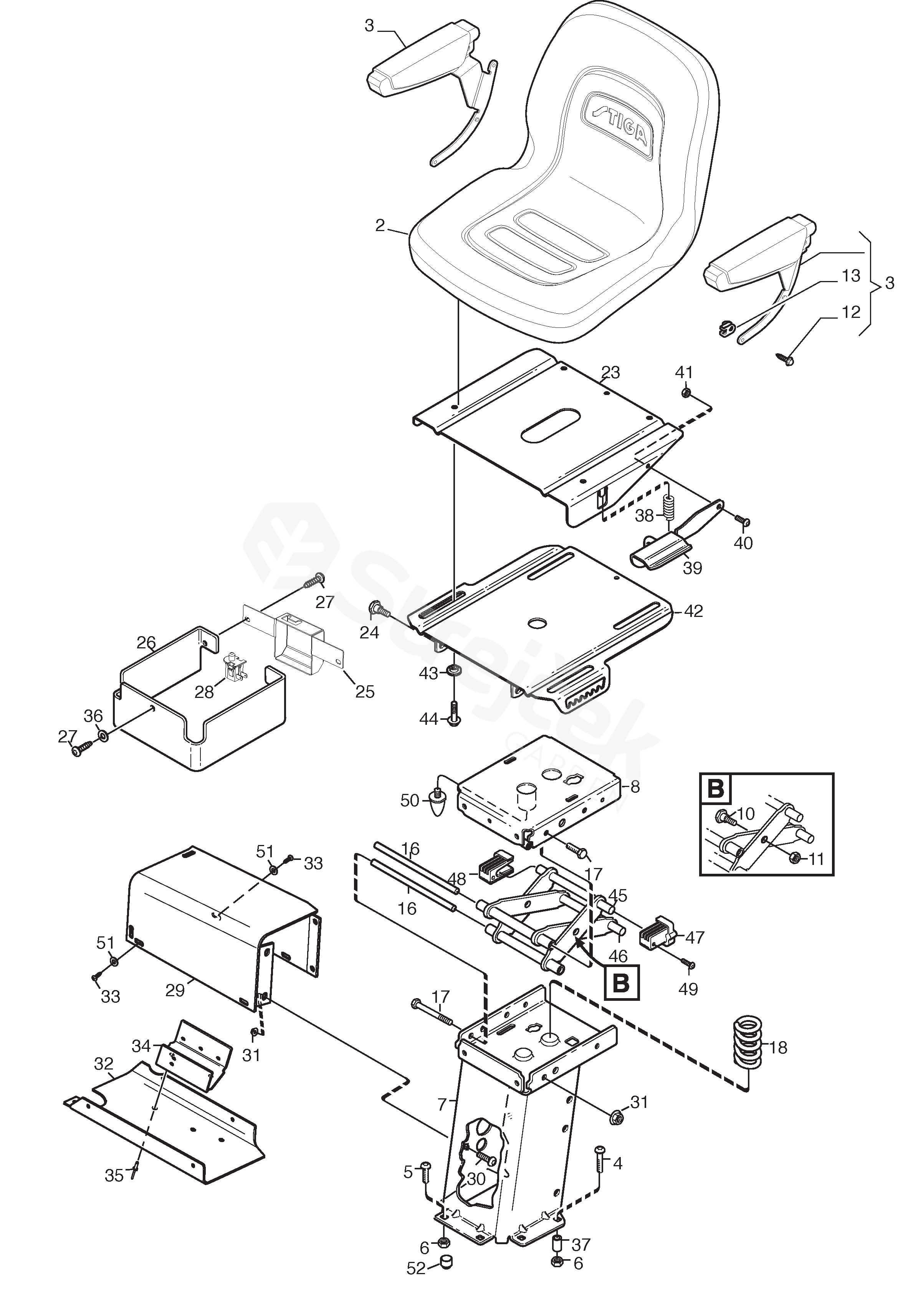

Park 540 DPX Park 540 DPX (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park 540 DPX (2016)

2	Seat	137722602/0
3	Arm Rest Kit	387185100/0
4	Screw L = 80 mm	9897-0880-12
5	Screw L = 20 mm	9897-0820-16
6	Nut	112155000/0
7	Seat Bracket Assy	1137-0057-01
8	Upper Plate Assy	387773509/1
10	Screw	1134-0240-00
11	Nut	112155000/0
12	Screw	1139-0010-01
13	Nut	1139-0011-01
16	Shaft	1137-0263-01
17	Screw	9997-0818-02
18	Spring	1134-4160-01
23	Slide Plate-Upper	1134-6090-01
24	Screw	1134-0240-00
25	Protection	387602511/0
26	Cover	1137-0038-01
27	Screw	112728697/0
28	Switch	1134-3156-01
29	Attachment-Side Panel	1134-3990-01
30	Screw	9897-0820-16
31	Nut	112154220/0
32	Cover Lower	1134-4130-01
33	Screw	9840-8013-16
34	Relay Holder	1134-4135-01
35	Pop Rivet	9632-0522-00
36	Washer	9699-0087-02
37	Spacer	1134-1565-08
38	Spring	1134-3262-01
39	Handle Assy	1134-6073-01
40	Screw	9893-0616-16
41	Nut	112154510/0
42	Bracket	387773513/0
43	Flange Washer	1134-6078-01
44	Screw	112793301/0
45	Link Assy A	1137-0260-01
46	Link Assy B	1137-0261-01
47	Block	1137-0033-01
48	Block	1137-0033-02
49	Screw	112728697/0
50	Rubber Cone	1137-0064-01
51	Washer	9699-0099-02
52	Cap	118203854/0
