Park 540 DPX Park 540 DPX (2017)
>
Hydraulic lift
Back to
Park 540 DPX
Park 540 DPX (2017)
Hydraulic lift
Park 540 DPX
Park 540 DPX (2017)

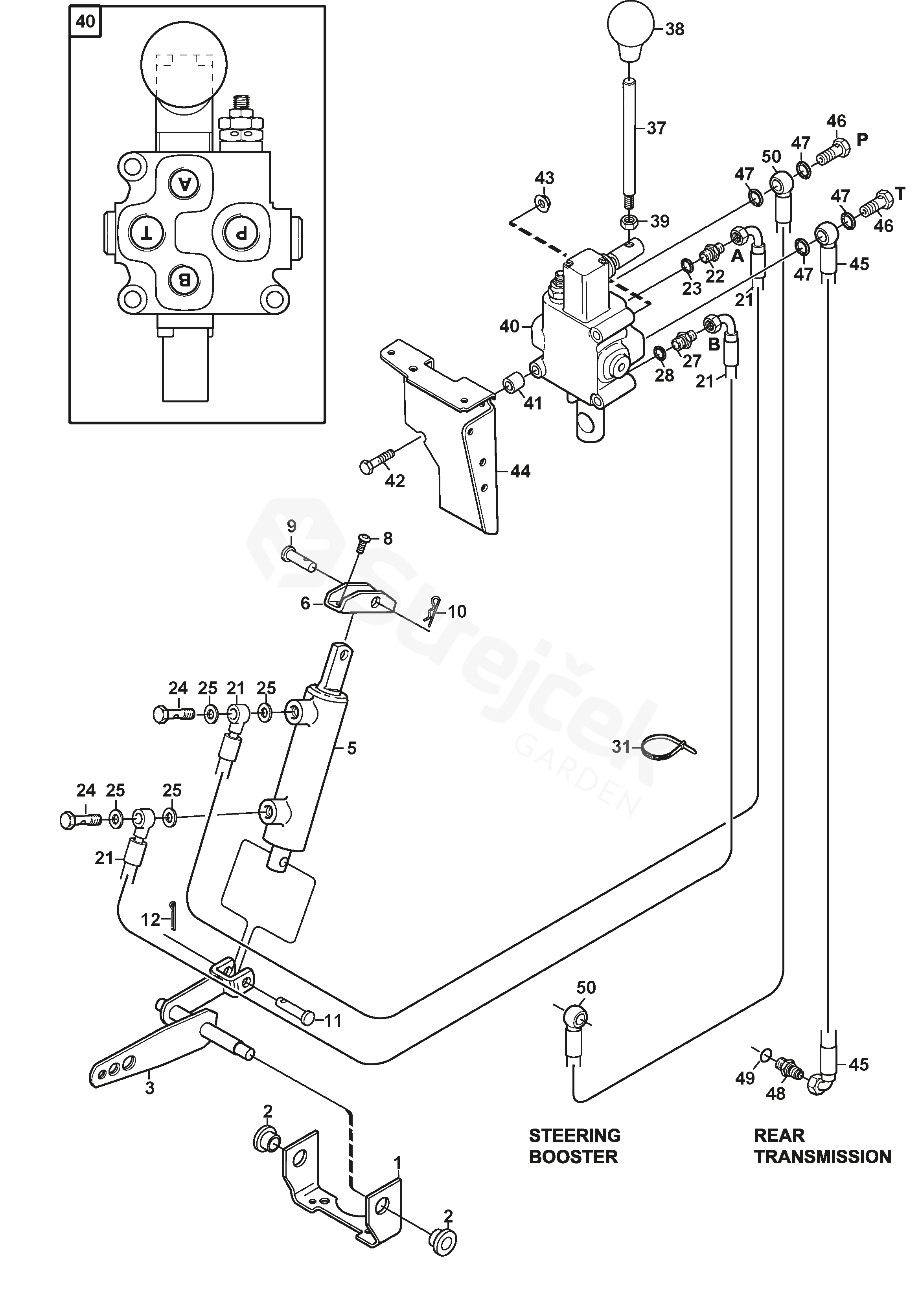

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Park 540 DPX (2017)
1
Bracket
1134-4117-01
2
Bearing
1134-2684-01
3
Lift Lever
387256051/0
5
Hydraulic Cylinder
1137-0071-01
6
Cylinder Bracket
1134-4815-01
8
Screw
9893-0616-16
9
Pin
Ø 10 x 29
1134-4816-01
10
Elastic Pin
9598-0002-02
11
Pin
Ø 10 x 34
1134-4817-01
12
Split pin
9599-0054-02
21
Hydraulic Hose
1137-0193-01
22
Adapter
1/4" x 1/8"
1134-4824-01
23
Washer
1/4"
1134-4948-01
24
Banjo Bolt
1134-4826-01
25
Washer
1134-4947-01
27
Adapter
1/4" x 1/8"
1134-4824-01
28
Washer
1/4"
1134-4948-01
31
Cable
133320027/0
37
Lever
1134-6345-01
38
Knob
1134-2551-01
39
Nut
112154220/0
40
Hand Operated Valve
Incl. pos 37-38-39
1134-7743-01
41
Spacer
1134-6364-01
42
Screw
112689515/0
43
Nut
9739-0631-22
44
Panel bracket-front
1134-6328-01
45
Hydraulic Nipple
9/16" x 9/16"
1134-4282-01
46
Banjo Bolt 3/8
3/8"
1134-6323-01
47
Washer
3/8"
1134-4948-02
48
Tube
1137-0214-04
49
O-Ring
9404-0028-01
50
Hydraulic Hose
1137-0216-01
