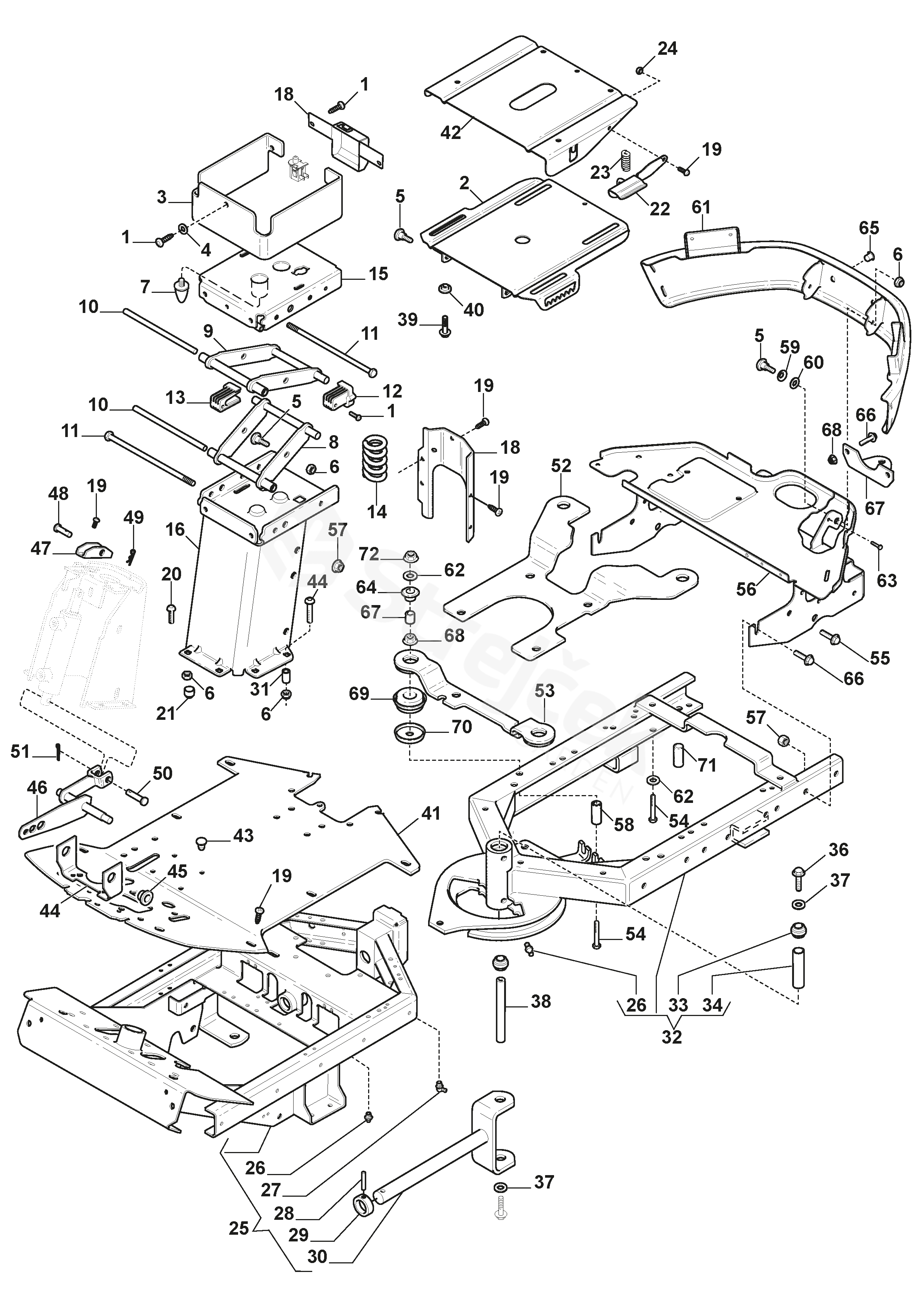

Spare parts - Partlist - Park 540 DPX Park 540 DPX (2018) - Chassis

Everything for your machines

Park 540 DPX Park 540 DPX (2018)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park 540 DPX (2018)

1	Screw	112728697/0
2	Bracket	387773513/0
3	Cover	1137-0038-01
4	Washer	9699-0087-02
5	Screw	1134-0240-00
6	Nut	112155000/0
7	Rubber Cone	1137-0064-01
8	Link Assy A	1137-0260-01
9	Link Assy B	1137-0261-01
10	Shaft	1137-0263-01
11	Screw	9997-0818-02
12	Block	1137-0033-01
13	Block	1137-0033-02
14	Spring	1134-4160-01
15	Upper Plate Assy	387773509/1
16	Seat Bracket Assy	1137-0057-01
18	Protection	387602511/0
19	Screw	9893-0616-16
20	Screw L = 20 mm	9897-0820-16
21	Cap	118203854/0
22	Handle Assy	1134-6073-01
23	Spring	1134-3262-01
24	Nut	112154510/0
25	Frame-Front	387800039/0
26	Grease Dispenser Rak/straight	9501-0500-00
27	Grease Nipple M6 90 90°	9501-0504-01
28	Locating Pin	9595-0262-00
29	Pivot Shaft Stop	1134-0031-00
30	Fork	1134-3963-02
31	Spacer	1134-1565-08
32	Frame-Rear (Park Diesel)	1134-6046-01
33	Bearing	9547-0001-00
34	Spacer	1134-5705-01
36	Screw	9959-1025-16
37	Washer	9699-0035-02
38	Centre Shaft	1134-5988-01
39	Screw	112793301/0
40	Flange Washer	1134-6078-01
41	Floor Plate	1134-6586-01
42	Slide Plate-Upper	1134-6090-01
44	Bracket L = 80 mm	1134-4117-01
45	Bearing	1134-2684-01
46	Lift Lever	387256051/0
47	Cylinder Bracket	1134-4815-01
48	Pin Ø 10 x 29	1134-4816-01
49	Elastic Pin	9598-0002-02
50	Pin Ø 10 x 34	1134-4817-01
51	Split pin	9599-0054-02
52	Engine Bracket	387547037/0
53	Engine Support	1134-4918-01
54	Screw	9997-1011-06
55	Screw	9945-0816-16
56	Tank Shelf Assy	1134-5944-01
57	Nut	112154220/0
58	Collar L = 51,2 mm	1134-6887-01
59	Washer	9665-0002-00
60	Washer	1134-4242-01
61	Rear Bumper	387457003/0
62	Washer	9699-0030-02
63	Screw	9943-0516-16
64	Washer	322672201/0
65	Plug	1134-4100-01
66	Screw	9959-0820-16
67	Spacer	1134-4919-01
68	Nut	9739-1031-22
69	Vibration Absorber	1134-4920-01
70	Support Cup	1134-4915-01
71	Bushing L = 55 mm	1134-0041-03
72	Nut	9731-1031-22
