Spare parts > STIGA > Front Mowers > Park 540 PX Park 540 PX (2016) > Transmission
Back to

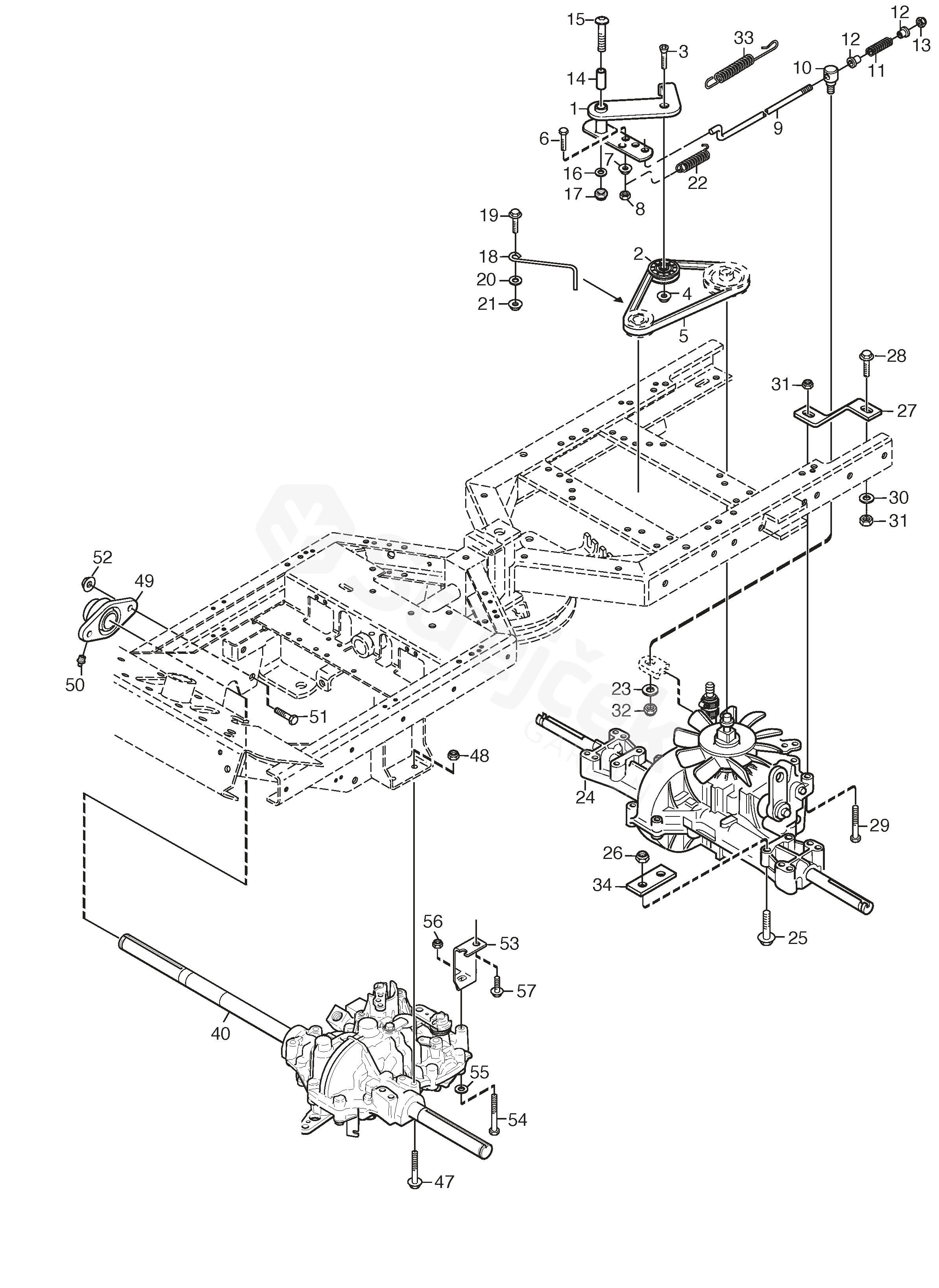

Transmission
Park 540 PX Park 540 PX (2016)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park 540 PX (2016)
1 Tension Arm 1134-4000-02
2 Tension Roller 1134-3459-01
3 Screw 9924-1035-16
4 Nut 112295200/0
5 V-Belt 1134-9058-01
6 Screw 112791500/0
7 Nut 9739-0631-22
9 Control Rod 1134-3377-02
10 Pivot Pin 1134-4171-01
11 Spring 1134-4183-01
12 Bushing 1134-3456-01
13 Nut 112154510/0
14 Spacer 1134-1565-08
15 Screw 9930-0870-12
16 Washer 112523060/0
17 Nut 112155000/0
18 Belt Guide 1134-3289-02
19 Screw 9959-0820-16
21 Nut 112154220/0
22 Spring 1134-6414-01
23 Washer 9699-0060-02
24 Transaxle K574F 1137-0125-01
25 Screw 9960-0860-12
27 Strut 1134-3913-01
28 Screw 9959-0825-16
29 Screw 112691200/0
30 Washer 9699-0090-02
33 Spring 4231-0013-00
40 Front Motor Unit (Ktm10M) 1134-6029-01
49 Flange Bearing Unit 1134-5703-01
50 Grease Dispenser 112379511/0
51 Screw 9997-1040-16
52 Nut 9731-1031-22
53 Strut 1134-5670-01
54 Screw 9997-0880-16
57 Screw 9945-0816-16
