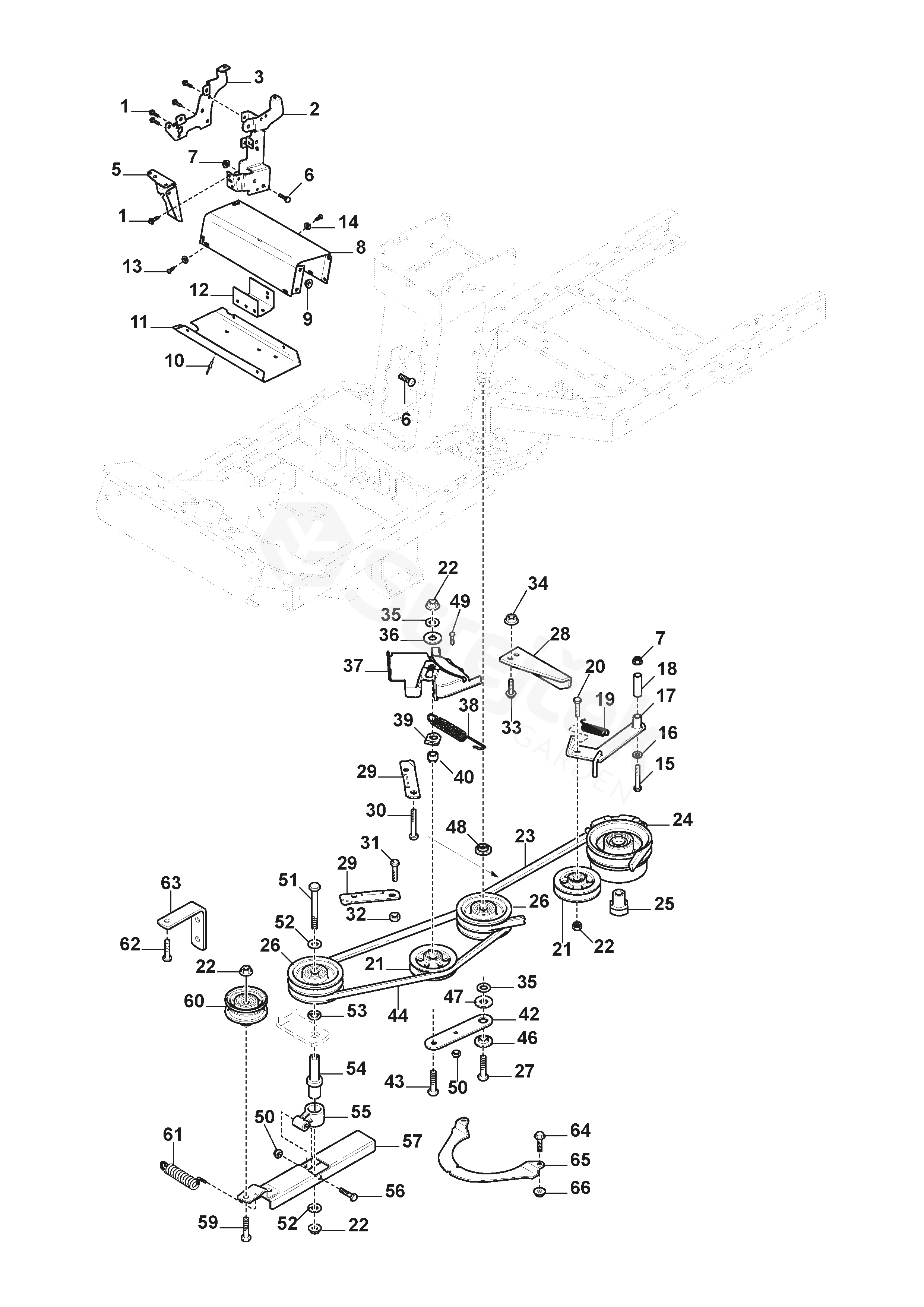

Spare parts - Partlist - PARK 640 PWX PARK 640 PWX (2020) - PTO

Everything for your machines

PARK 640 PWX PARK 640 PWX (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK 640 PWX (2020)

1	Screw	9893-0616-16
2	Front Plate	1134-6327-01
3	Panel Bracket Assy	1134-6324-01
5	Panel bracket-front	1134-6328-01
6	Screw	9897-0820-16
8	Attachment-Side Panel	1134-3990-01
10	Pop Rivet	9632-0522-00
11	Cover Lower	1134-4130-01
12	Relay Holder	1134-4135-01
13	Screw	9840-8013-16
14	Washer	9699-0099-02
15	Screw	112691800/0
16	Washer	112523060/0
17	Tension Arm	1134-3658-02
18	Spacer	1134-1565-10
19	Spring	1134-3379-01
20	Screw	9997-1040-16
21	Tension Wheel	387605010/0
22	Nut	9739-1031-22
23	V-Belt Replaced by Service Code: 1134-9047-01	9585-0088-00
24	Magnet Clutch	1134-7526-01
25	Bushing	1134-5016-01
26	Centre Belt Pulley	387605004/0
27	Screw	9959-1025-16
28	Bracket	387773575/0
29	Plate	337546547/0
31	Screw	112793102/0
32	Nut	112293201/0
33	Screw	9959-0820-16
34	Nut	112154220/0
35	Washer	112521360/0
36	Bush	137038000/0
37	Protection	337600001/2
38	Spring	1134-5713-04
39	Spring	337546545/0
40	Spacer	1134-1888-06
42	Tensioning Wheel Arm	1134-1730-02
43	Screw	112692395/2
44	Belt Replaced by Service Code: 1134-9199-01	135065702/0
46	Washer	1134-0222-00
47	Washer	9699-0109-02
48	Spacer	1134-5548-01
49	Screw	112792410/0
50	Nut	112154510/0
51	Screw	9997-1011-06
52	Washer	9699-0030-02
53	Spacer	1134-0052-00
54	Shaft	1134-5663-01
55	Tension Arm Attachment	1134-6314-01
56	Screw	112689515/0
57	Tension Arm Assy	1134-5660-01
59	Screw	112794900/0
60	Tension Roller Assy	387605014/0
61	Spring	1134-5824-01
62	Screw	9945-0816-16
63	Spring	1134-5112-01
64	Screw	9959-0612-16
65	Guard	1134-3654-01
66	Nut	9739-0631-22
