STIGA
>
Front Mowers
>
PARK DIESEL 4WD PARK DIESEL 4WD (2006)
>

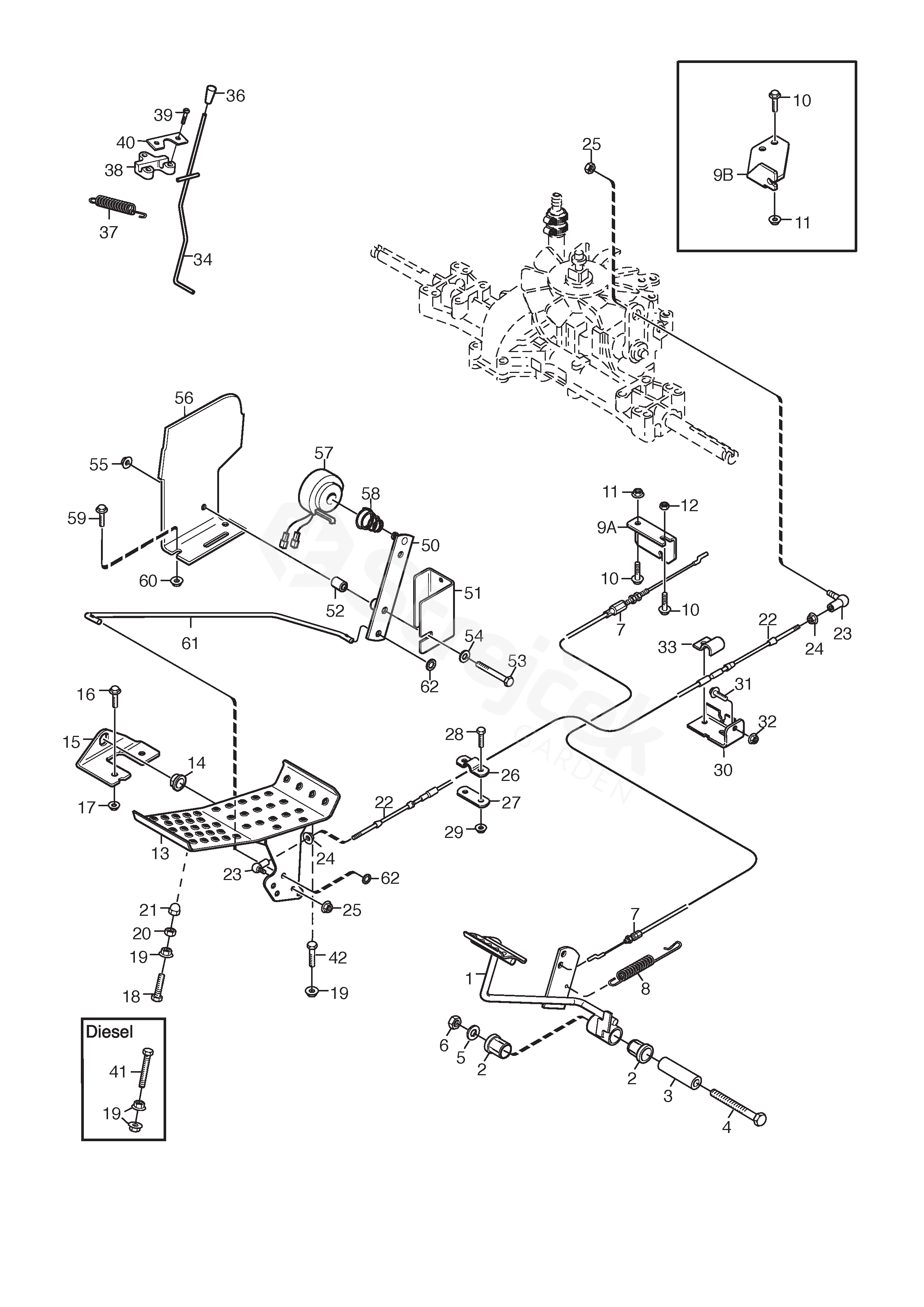

Foot Controls
Back to
PARK DIESEL 4WD
PARK DIESEL 4WD (2006)
Foot Controls
PARK DIESEL 4WD
PARK DIESEL 4WD (2006)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK DIESEL 4WD (2006)
1
Clutch Pedal
1134-5655-01
2
Bearing
Sats 4 st/kit of 4
1134-9024-01
3
Spacer
1134-5677-02
4
Screw
9997-1070-12
5
Washer
9699-0030-02
6
Nut
9739-1031-22
7
Control Cable
1134-6005-01
8
Spring
4231-0013-00
10
Screw
9959-0816-16
11
Nut
9739-0831-22
13
Drive Pedal
1134-4008-03
14
Bearing
1134-2780-01
15
Bracket
1134-2700-01
16
Screw
9959-0820-16
17
Nut
9739-0831-22
19
Nut
9739-0831-22
22
Speed Control Cable
1134-2766-05
23
Elbow Link
9570-0001-00
24
Nut
9739-0531-22
25
Nut
9747-0531-02
26
Attaching clamp
1134-0266-00
27
Clamp Plate
1134-0267-00
28
Screw
9997-0520-16
29
Nut
9739-0531-22
30
Attachment
1134-3395-01
31
Screw
9959-0820-16
32
Nut
9739-0831-22
33
Clamp
1134-2021-01
34
Brake Rod
1134-5101-01
36
Knob
1134-3808-01
37
Brake Spring
1131-1497-01
38
Brake Rod Attachment
1134-4002-01
39
Screw
9838-9516-12
40
Stop Plate
1134-4944-01
41
Screw
9997-0870-16
42
Screw
9959-0816-16
50
Lever, Cruise Control
1134-4017-01
51
Guide Plate
1134-6124-01
52
Spacer
1134-1565-01
53
Screw
9997-0850-16
54
Washer
9699-0056-02
55
Nut
9739-0831-22
56
Plate-Cruise Control
1134-5646-01
57
Magneto
1134-2859-01
58
Spring
1134-2858-01
59
Screw
9959-0820-16
60
Nut
9739-0831-22
61
Rod-Cruise Control
1134-4021-01
62
Locking washer
9675-0012-02
9B
Wire Bracket
1134-6052-01
