Spare parts > STIGA > Front Mowers > PARK DIESEL 4WD PARK DIESEL 4WD (2007) > Frame
Back to

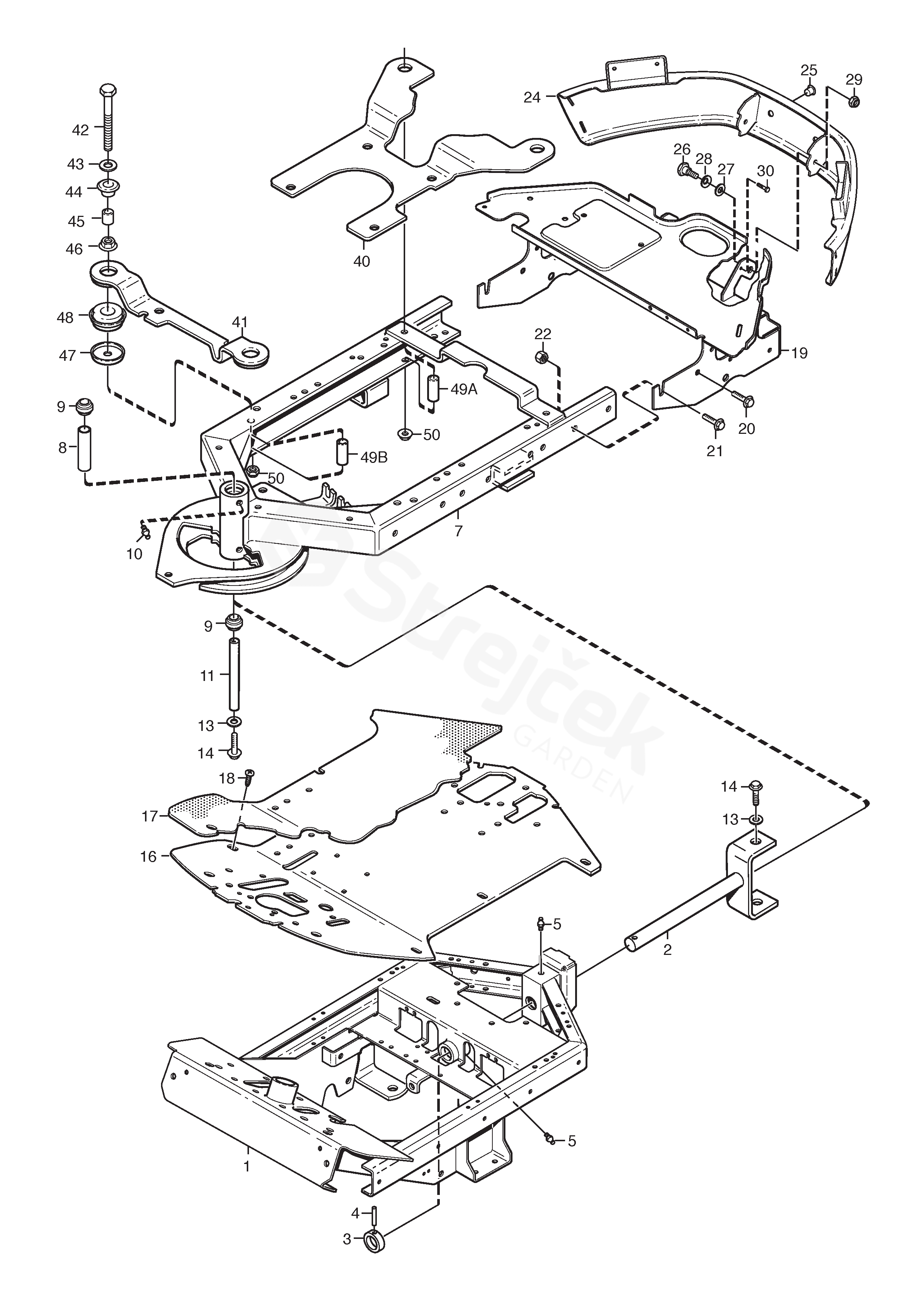

Frame
PARK DIESEL 4WD PARK DIESEL 4WD (2007)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK DIESEL 4WD (2007)
1 Frame-Front 1134-5656-02
2 Fork 1134-3963-02
3 Pivot Shaft Stop 1134-0031-00
4 Locating Pin 9595-0262-00
5 Grease Dispenser 9501-0500-00
7 Frame-Rear (Park Diesel) 1134-6046-01
8 Spacer 1134-5705-01
9 Bearing 9547-0001-00
10 Grease Dispenser 9501-0500-00
11 Centre Shaft 1134-5988-01
13 Washer 9699-0035-02
14 Screw 9959-1025-16
16 Floor Plate (5-01) 1134-5294-01
17 Floor Mat Hst 1134-6372-03
18 Screw 9893-0616-16
19 Tank Shelf Assy 1134-5944-01
20 Screw 9945-0816-16
21 Screw 9959-0820-16
22 Nut 9739-0831-22
24 Rear Bumper 1134-5676-01
25 Plug 1134-4100-01
26 Screw 1134-0240-00
27 Washer 1134-4242-01
28 Washer 9665-0002-00
29 Nut 9747-0831-02
30 Screw 9943-0516-16
40 Engine Bracket 1134-6037-01
41 Engine Support 1134-4918-01
42 Screw 9997-1011-06
43 Washer 9699-0030-02
44 Isolation Washer 1111-2453-01
45 Spacer 1134-4919-01
46 Nut 9739-1031-22
47 Support Cup 1134-4915-01
48 Vibration Absorber 1134-4920-01
50 Nut 9731-1031-22
49A Bushing 1134-0041-03
49B Bushing 1134-0041-06
