STIGA
>
Front Mowers
>
PARK RANGER PARK RANGER (2009) [13-6179-05]
>
Wheels
Back to
PARK RANGER
PARK RANGER (2009) [13-6179-05]

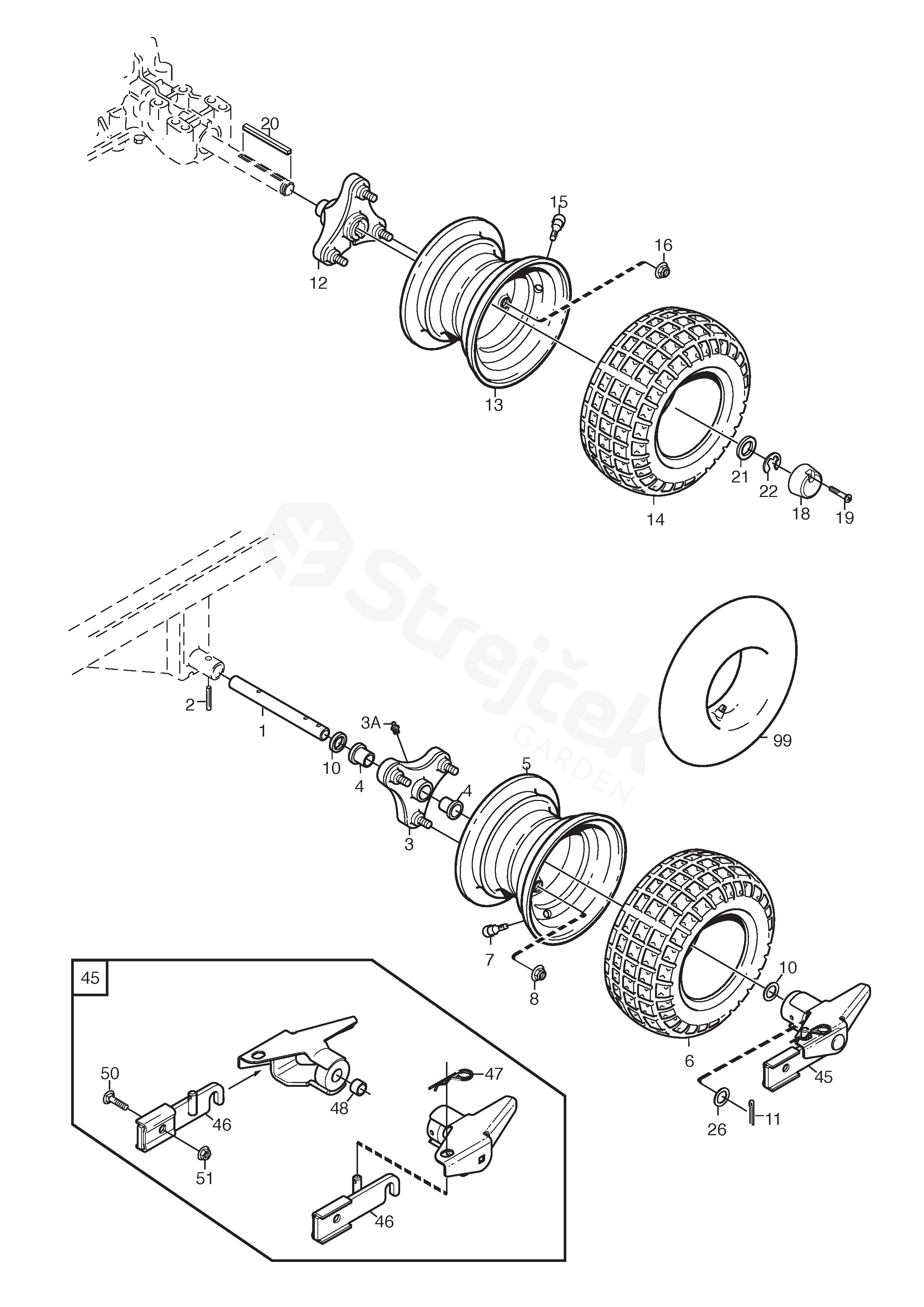

Wheels
PARK RANGER
PARK RANGER (2009) [13-6179-05]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK RANGER (2009) [13-6179-05]
1
Front Axle
1134-0075-01
2
Locating Pin
9595-0258-00
3
Wheel Hub Assy
1134-4844-05
4
Bushing
137038009/0
10
Washer
1134-0341-01
11
Cotter Pin
9599-0080-02
12
Wheel Hub Assy
1134-4844-02
13
Rim
1134-4558-01
14
Tyre
16 x 7.50 - 8
9545-0116-00
15
Valve Assy.
9545-0500-00
16
Nut
9731-1031-22
18
Hub Cap
1134-4796-01
19
Screw
9947-0540-19
20
Key
1134-2471-01
21
Washer
9699-0042-02
22
Lock Ring
9653-0001-04
45
Rac Quick Connection 2Wd
Inkl. pos 11,26,46-51
13-0992-61
46
Attachment Kit
Inkl. pos 50-51
1134-7465-01
47
Spring Pin
9598-2001-02
48
Bearing
9548-0026-01
50
Screw
9898-1035-16
51
Nut
9739-1031-22
3A
Grease Dispenser
9501-0500-00
