STIGA
>
Front Mowers
>
PARK PRO 16 PARK PRO 16 (2000) [13-6216-11]
>
Transmission
Back to
PARK PRO 16
PARK PRO 16 (2000) [13-6216-11]
Transmission
PARK PRO 16
PARK PRO 16 (2000) [13-6216-11]

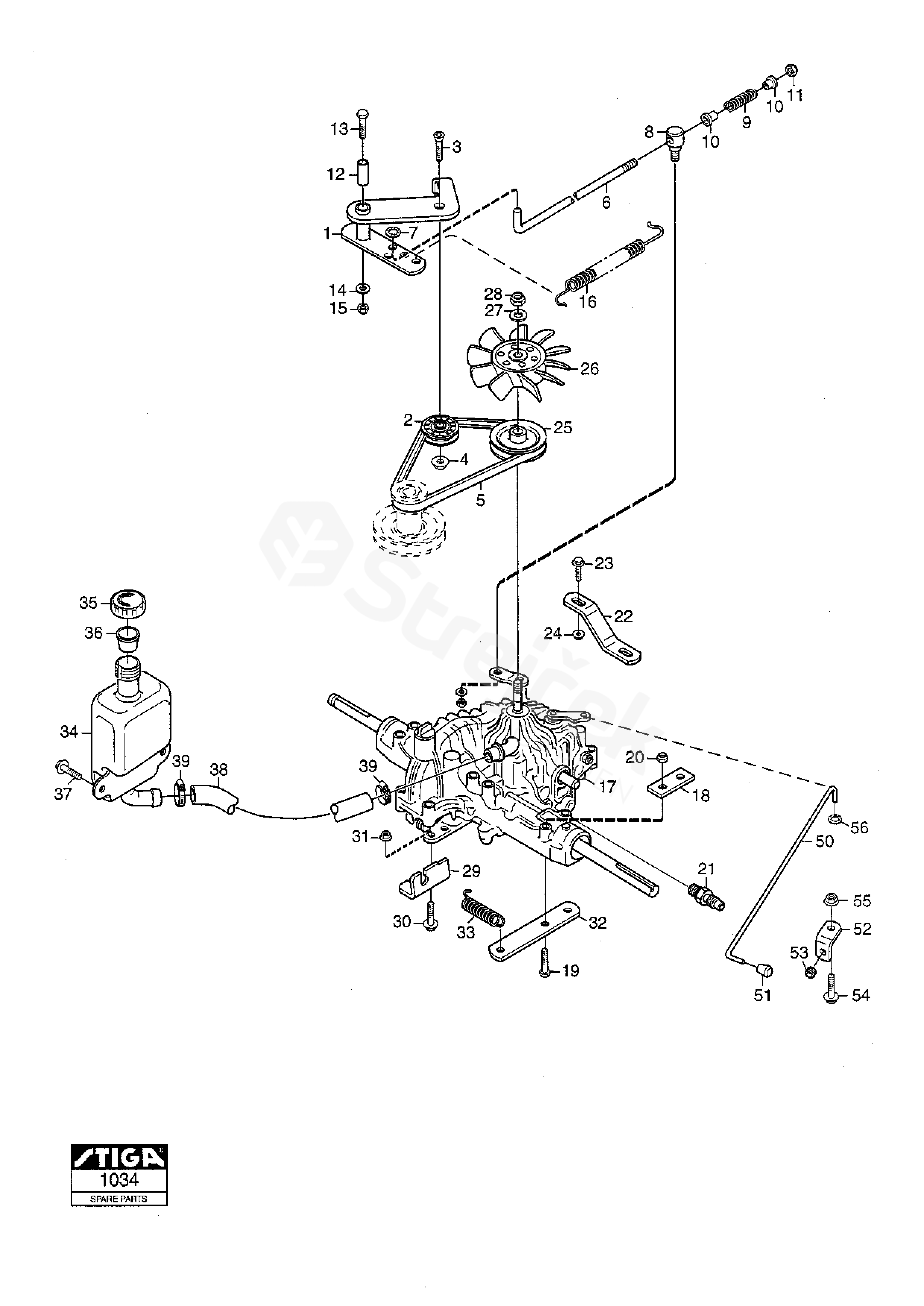

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 16 (2000) [13-6216-11]
1
Tension Arm
1134-4000-01
2
Tension Roller
1134-3459-01
3
Screw
9924-1035-16
4
Nut
9799-1031-02
5
V-Belt
= 9585-0055-00
1134-9029-01
6
Control Rod
1134-3377-03
7
Starlock
9675-0008-02
8
Pivot Pin
1134-4171-01
9
Spring
1134-4183-01
10
Bushing
1134-3456-01
11
Lock Nut
9747-0631-02
12
Spacer
1134-1565-08
13
Screw
9997-0875-12
14
Washer
9699-0056-02
15
Nut
9747-0831-02
16
Spring
1134-3211-02
17
Transaxle
Kanzaki K62E
1134-3994-01
18
Spacer Plate
1134-3376-01
19
Screw
L = 75 mm
9997-0875-12
20
Nut
9747-0831-02
22
Strut
1134-3913-01
23
Screw
9959-0820-16
24
Nut
9739-0831-22
25
Belt Pulley
1134-4191-01
26
Fan
1134-4190-01
27
Washer
9699-0030-02
28
Lock Nut
9747-1031-02
29
Cabel Holder
1134-3914-01
30
Screw
9959-0820-16
31
Nut
9739-0831-22
32
Strut
1134-4049-01
33
Spring
1134-4232-01
34
Oil Tank
1134-3998-01
35
Filler Cap
1134-2777-02
36
Vent Plug
1134-3734-01
37
Screw
9945-0816-16
38
Oil Hose (L=400)
1134-4011-01
39
Hose clamp
9578-0025-01
50
Pull Rod
1134-4015-01
51
Knob
1134-4014-01
52
Bracket
1134-2789-01
53
Cable Protection
1134-2790-01
54
Screw
9959-0816-16
55
Nut
9739-0831-22
56
Starlock
9675-0009-02
