STIGA
>
Front Mowers
>

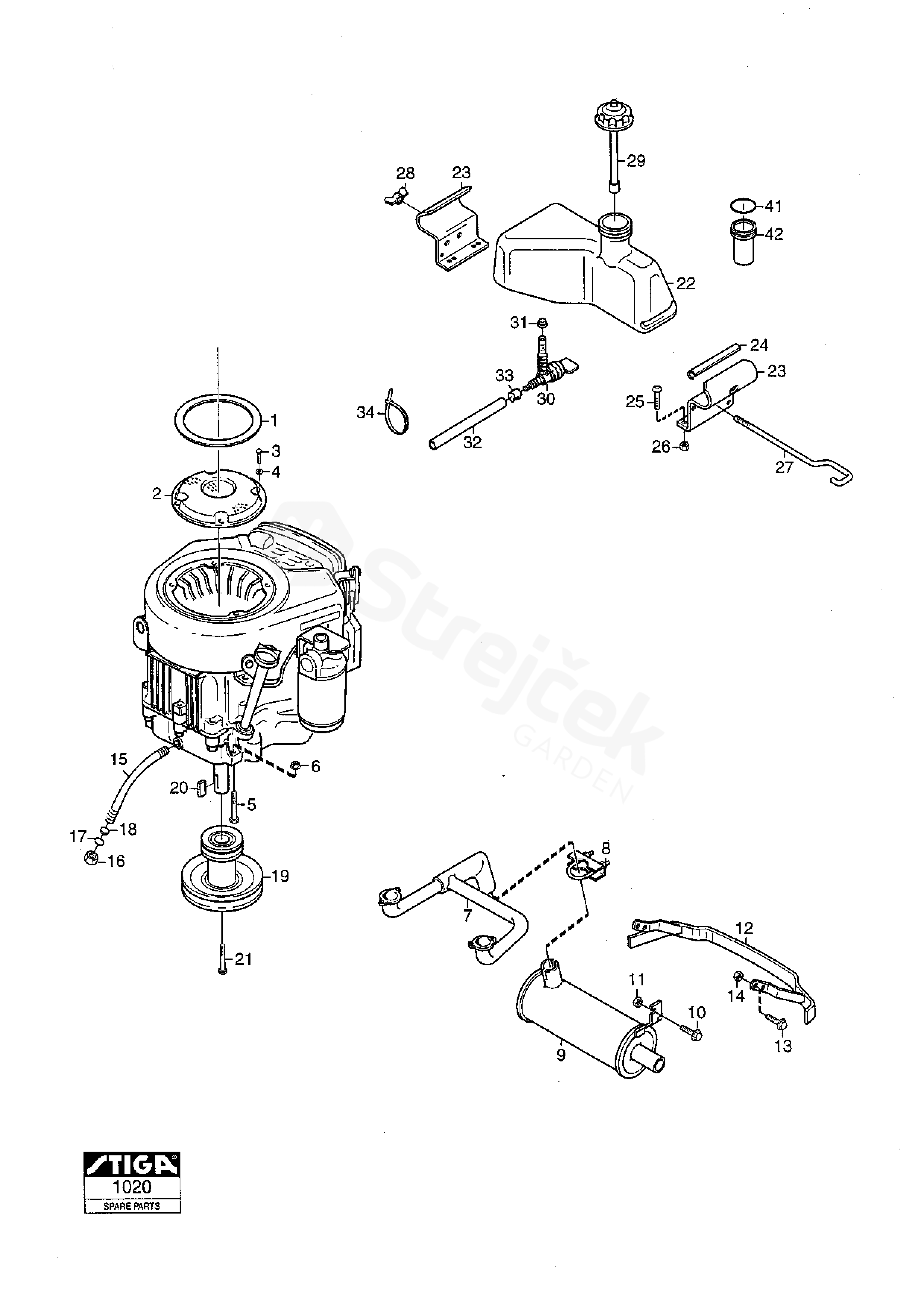

PARK PRO 16 PARK PRO 16 (2000) [13-6216-11]
>
Engine
Back to
PARK PRO 16
PARK PRO 16 (2000) [13-6216-11]
Engine
PARK PRO 16
PARK PRO 16 (2000) [13-6216-11]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 16 (2000) [13-6216-11]
1
Seal Ring (5 Mm)
H = 5 mm
1134-4222-01
2
Fan cover
1134-2878-01
3
Screw
9997-0512-16
4
Washer
9699-0099-02
5
Screw
9997-0840-16
6
Nut
9739-0831-22
7
Exhaust Pipe
1134-4031-01
8
Clamp
9578-0011-00
9
Silencer
1134-3244-01
10
Screw
9959-0820-16
11
Nut
9739-0831-22
12
Muffler Guard, Grey
1134-4046-01
13
Screw
9959-0820-16
14
Nut
9739-0831-22
15
Oil Drain Pipe
1134-3355-01
16
Plug
1134-0995-01
17
O-Ring
9404-0020-00
18
Gasket
1134-0997-01
19
Engine Pulley
1134-4243-01
20
Key
9600-0250-00
21
Screw
9987-5338-12
22
Fuel Tank
1134-4030-01
23
Bracket Tank
1134-4273-02
24
Protection Strip
1134-2941-01
25
Screw
9893-0616-16
26
Nut
9739-0631-22
27
Tank Rod (M8)
1134-4356-01
28
Wing Nut
1134-3259-01
29
Fuel Cap
1134-4064-01
30
Fuel Shut-Off Valve
1134-3224-01
31
Grommet
1134-3225-01
32
Fuel Line
1134-2975-04
33
Hose clamp
9578-0023-02
34
Cable Holder
9579-0003-00
41
O-Ring
9404-0025-01
42
Fuel Tank Insert
1134-4411-01
