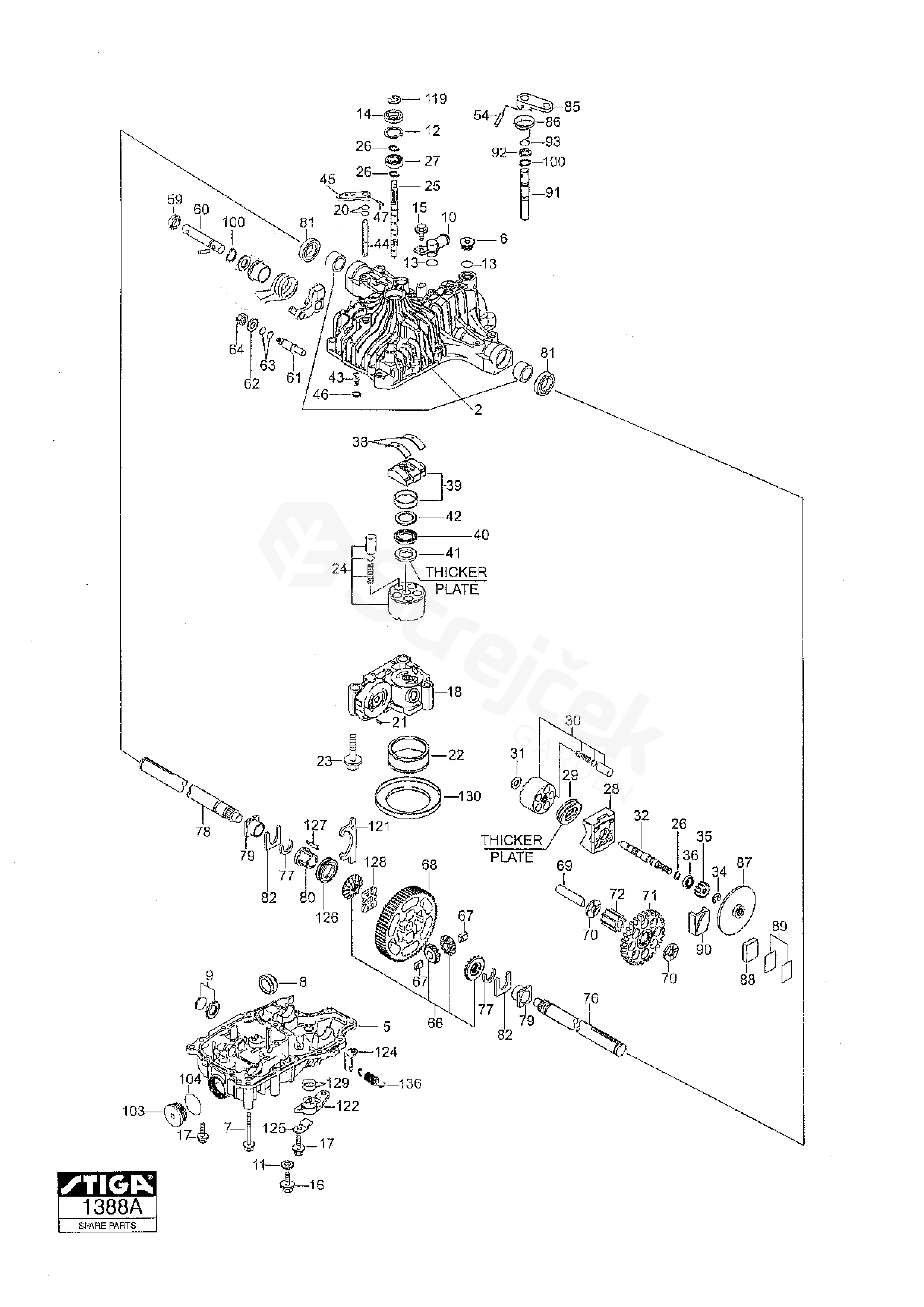

Spare parts - Partlist - PARK PRO 16 PARK PRO 16 (2003) [13-6216-44] - Kanzaki Transaxle K62E

Everything for your machines

PARK PRO 16 PARK PRO 16 (2003) [13-6216-44]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK PRO 16 (2003) [13-6216-44]

1	Transaxle Case Set Inkl. pos 2, 5 _ K62E	1139-1211-01
2	Upper Case Cmp K62E	1139-1169-01
5	Lower Housing K62E	1139-1212-01
6	Oil Cap K62E	1139-1171-01
7	Bolt K62E	1139-1006-01
8	Filter K62E	1139-1172-01
9	Magnet Assy K62E	1139-1057-01
10	Fitting K62E	1139-1179-01
11	Washer K62E	1139-1277-01
12	Snap Ring K62E	1139-1104-01
13	O-Ring K62E	1139-1116-01
14	Seal 15357 K62E	1139-1119-01
15	Bolt K62E	1139-1124-01
16	Bolt K62E	1139-1292-01
17	Screw K62E	1139-0244-01
18	Center Case Cmp K62E	1139-1173-01
20	O-Ring K62E	1139-1117-01
21	Pin K62E	1139-1158-01
22	Filter K62E	1139-1147-01
23	Bolt K62E	1139-1293-01
24	Cylinder Block Assy K62E	1139-1139-01
25	Pump Shaft K62E	1139-1181-01
26	Snap Ring K62E	1139-1021-01
27	Ball Bearing K62E	1139-1110-01
28	Housing K62E	1139-1170-01
29	Thrust Bearing K62E	1139-1005-01
31	Washer K62E	1139-1160-01
32	Motor Shaft K62E	1139-1182-01
34	E-ring K62E	1139-1183-01
35	Motor Gear K62E	1139-1216-01
36	Ball Bearing K62E	1139-1287-01
38	Metal Thrust K62E	1139-1022-01
39	Swash Plate Cmp K62E	1139-1187-01
40	Bearing K62E	1139-1024-01
41	Thrust Plate K62E	1139-1145-01
42	Thrust Plate K62E	1139-1026-01
43	Spring K62E	1139-1028-01
44	By-Pass Shaft K62E	1139-1188-01
45	By-Pass Lever K62E	1139-1189-01
46	Ring K62E	1139-1161-01
47	Pin K62E	1139-1280-01
54	Pin K62E	1139-1285-01
59	Seal Ring K62E	1139-1165-01
60	Control Shaft Cmp K62E	1139-1191-01
61	Fulcrum (Eccentricity) K62E	1139-1190-01
62	Washer K62E	1139-1102-01
63	O-Ring K62E	1139-1115-01
64	Nut K62E	1139-1127-01
66	Diff.Gear Kit K62E	1139-1201-01
67	Pin K62E	1139-1203-01
68	Final Gear K62E	1139-1208-01
69	Shaft (Final P) K62E	1139-1192-01
70	Washer K62E	1139-1193-01
71	Reduction Gear K62E	1139-1207-01
72	Final Pinion K62E	1139-1210-01
76	Axle Shaft-L K62E	1139-1332-01
77	Ring K62E	1139-1155-01
78	Axle Shaft-R K62E	1139-1333-01
79	Bushing K62E	1139-1156-01
80	Collar K62E	1139-1213-01
81	Seal 25.4428 K62E	1139-1044-01
82	Thrust Washer K62E	1139-1194-01
85	Brake Arm K62E	1139-1227-01
86	Return Spring K62E	1139-1228-01
87	Brake Disc K62E	1139-1195-01
88	Brake Shoe K62E	1139-1196-01
89	Shim Set K62E	1139-1198-01
90	Brake Actuator K62E	1139-1200-01
91	Brake Shaft K62E	1139-1197-01
92	Washer K62E	1139-1199-01
93	O-Ring K62E	1139-1114-01
100	Ring K62E	1139-1278-01
103	Cap K62E	1139-1230-01
104	Packing K62E	1139-1290-01
119	Ring K62E	1139-1146-01
121	Diff.Lock Fork K62E	1139-1217-01
122	Diff.Lock Arm K62E	1139-1218-01
123	Diff.Lock Pivot K62E	1139-1219-01
124	Spring Hook K62E	1139-1220-01
125	Arm Hold Plate K62E	1139-1221-01
126	Diff.Lock Slider K62E	1139-1222-01
127	Diff.Lock Pin K62E	1139-1223-01
128	Diff.Lock Plate K62E	1139-1224-01
129	Packing K62E	1139-1289-01
130	Spacer K62E	1139-1180-01
136	Return Spring K62E	1139-1144-01
