STIGA
>
Front Mowers
>
PARK PRO 1 PARK PRO 16 (OVERSEAS) (2004)
>
Engine
Back to
PARK PRO 1
PARK PRO 16 (OVERSEAS) (2004)
Engine
PARK PRO 1
PARK PRO 16 (OVERSEAS) (2004)

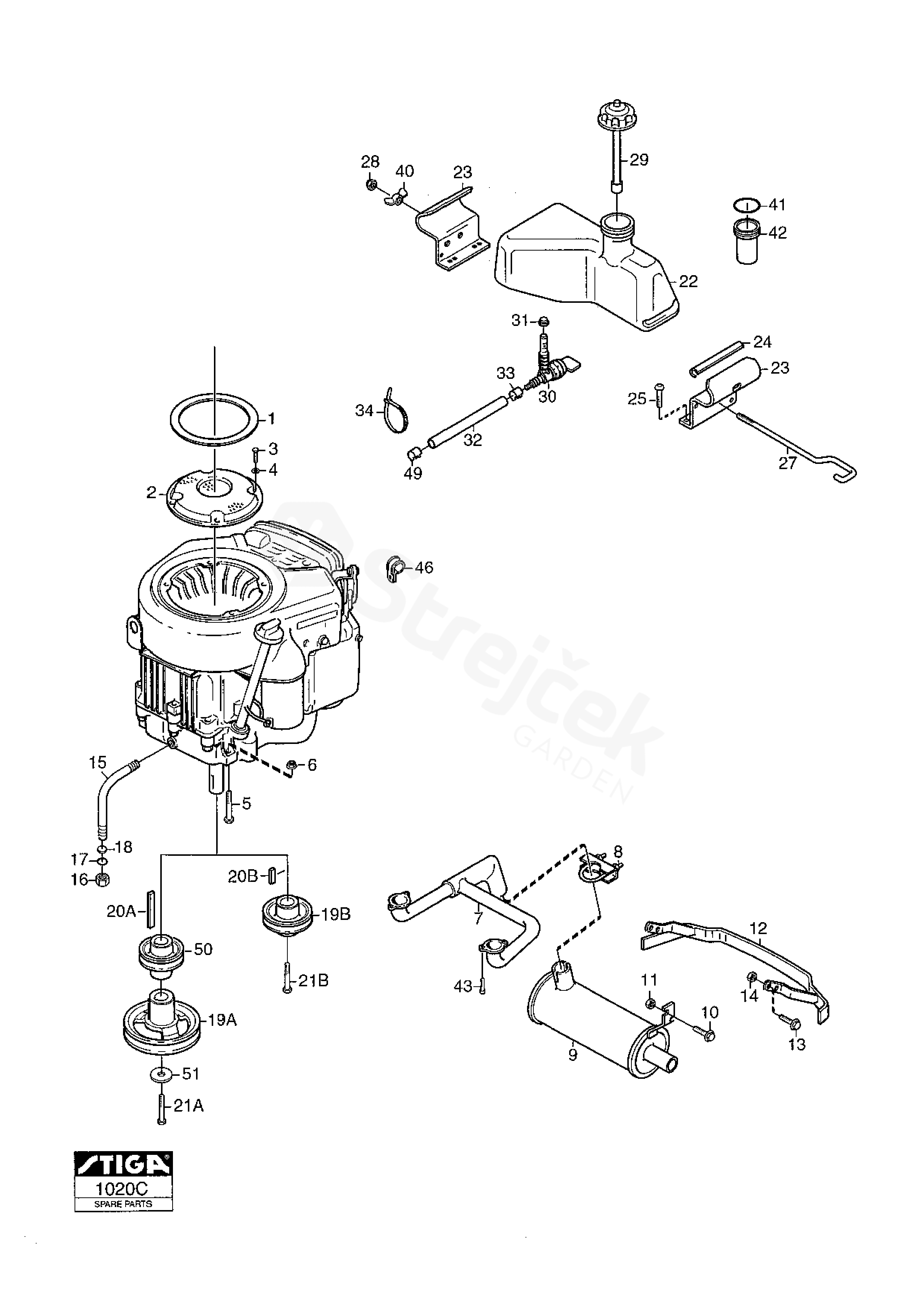

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 16 (OVERSEAS) (2004)
1
Seal Ring (5 Mm)
H = 5 mm
1134-4222-01
2
Fan cover
1134-2878-01
3
Screw
9997-0512-16
4
Washer
9699-0099-02
5
Screw
9997-0840-16
7
Exhaust Pipe
1134-4031-01
8
Clamp
9578-0011-00
9
Muffler
1134-4952-01
10
Screw
9959-0820-16
11
Nut
9739-0831-22
12
Muffler Guard, Grey
1134-4046-01
15
Oil Drain Pipe Assy
1134-4736-01
16
Plug
1134-0995-01
17
O-Ring
9404-0020-00
18
Gasket
1134-0997-01
22
Fuel Tank Assy (W.Gauge)
Inkl. 29-33, 41-42
1134-4757-02
23
Fuel Tank Bracket
1134-4273-03
24
Protection Strip
1134-2941-01
25
Screw
9893-0616-16
27
Tank Rod (M8)
1134-4356-01
28
Lock Nut
9747-0631-02
29
Fuel Cap
1134-4064-01
30
Fuel Shut-Off Valve
1134-3224-01
31
Grommet
1134-3225-01
32
Fuel Tube
L = 520 mm
1134-2975-01
33
Hose clamp
9578-0023-02
34
Cable Holder
9579-0003-00
40
Wing Nut
1134-4481-01
41
O-Ring
9404-0025-01
42
Fuel Tank Insert
1134-4411-01
43
Screw
9939-0820-16
46
Tube Clamp
1134-0994-02
50
Engine Belt Pulley
1134-5001-01
51
Washer
1134-5017-01
19A
Engine Belt Pulley
1134-4999-01
20A
Key
L = 2.5" (64 mm)
9600-0251-01
21A
Screw
L = 32 mm
9987-5332-16
