STIGA
>
Front Mowers
>
PARK PRO 16 4WD PARK PRO 16 4WD (2007) [13-6241-13]
>
Frame
Back to
PARK PRO 16 4WD
PARK PRO 16 4WD (2007) [13-6241-13]
Frame
PARK PRO 16 4WD
PARK PRO 16 4WD (2007) [13-6241-13]

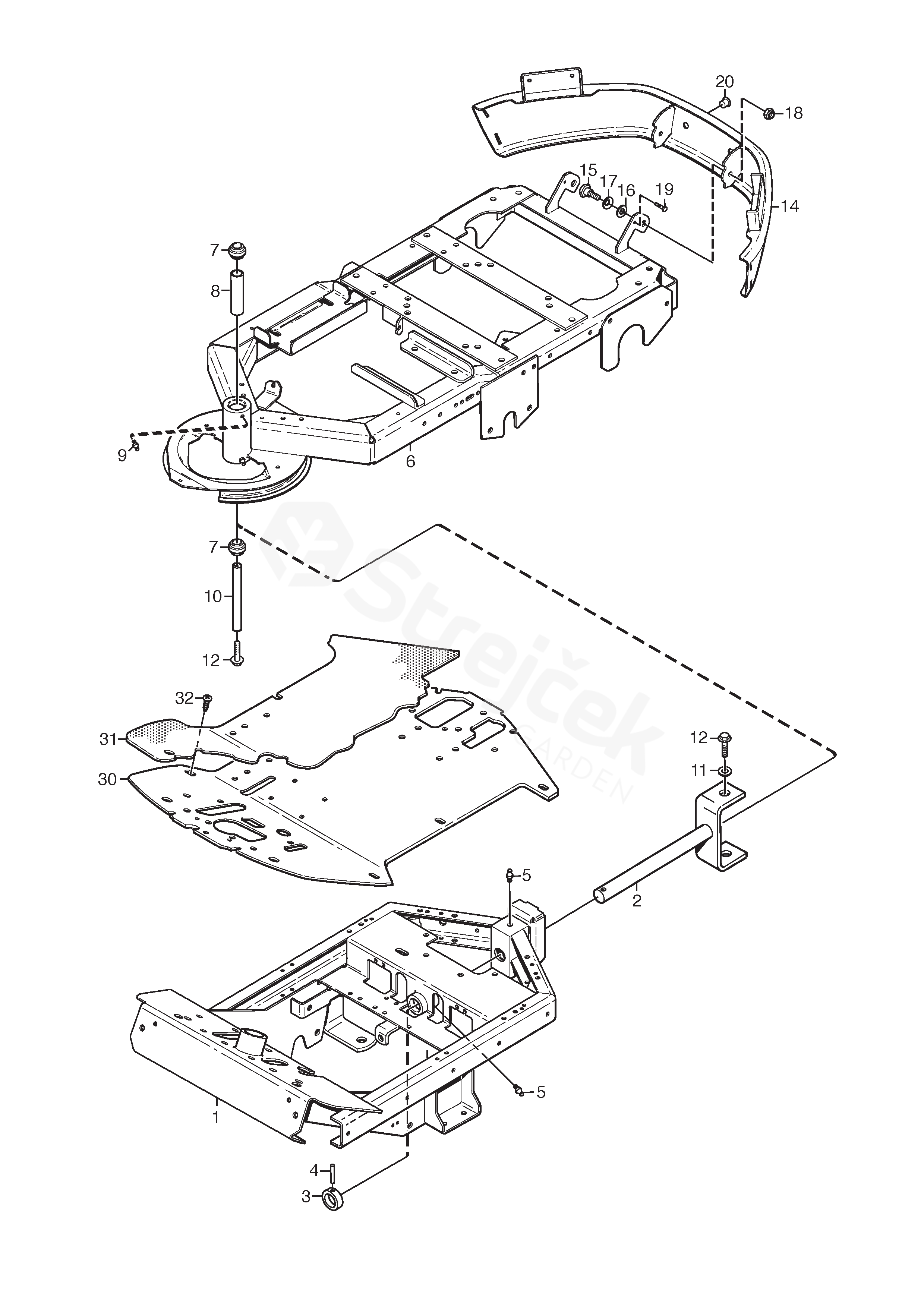

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 16 4WD (2007) [13-6241-13]
1
Frame-Front
1134-5656-02
2
Fork
1134-3963-02
3
Pivot Shaft Stop
1134-0031-00
4
Locating Pin
9595-0262-00
5
Grease Dispenser
9501-0500-00
6
Frame-Rear Assy
1134-5953-01
7
Bearing
9547-0001-00
8
Spacer
1134-5705-01
9
Grease Dispenser
9501-0500-00
10
Centre Shaft
1134-5988-01
11
Washer
9699-0035-02
12
Screw
9959-1025-16
14
Rear Bumper
1134-5676-01
15
Screw
1134-0240-00
16
Washer
1134-4242-01
17
Washer
9665-0002-00
18
Nut
9747-0831-02
19
Screw
9943-0516-16
20
Plug
1134-4100-01
30
Floor Plate (5-01)
1134-5294-01
31
Floor Mat Hst
1134-6372-04
32
Screw
9893-0616-16
