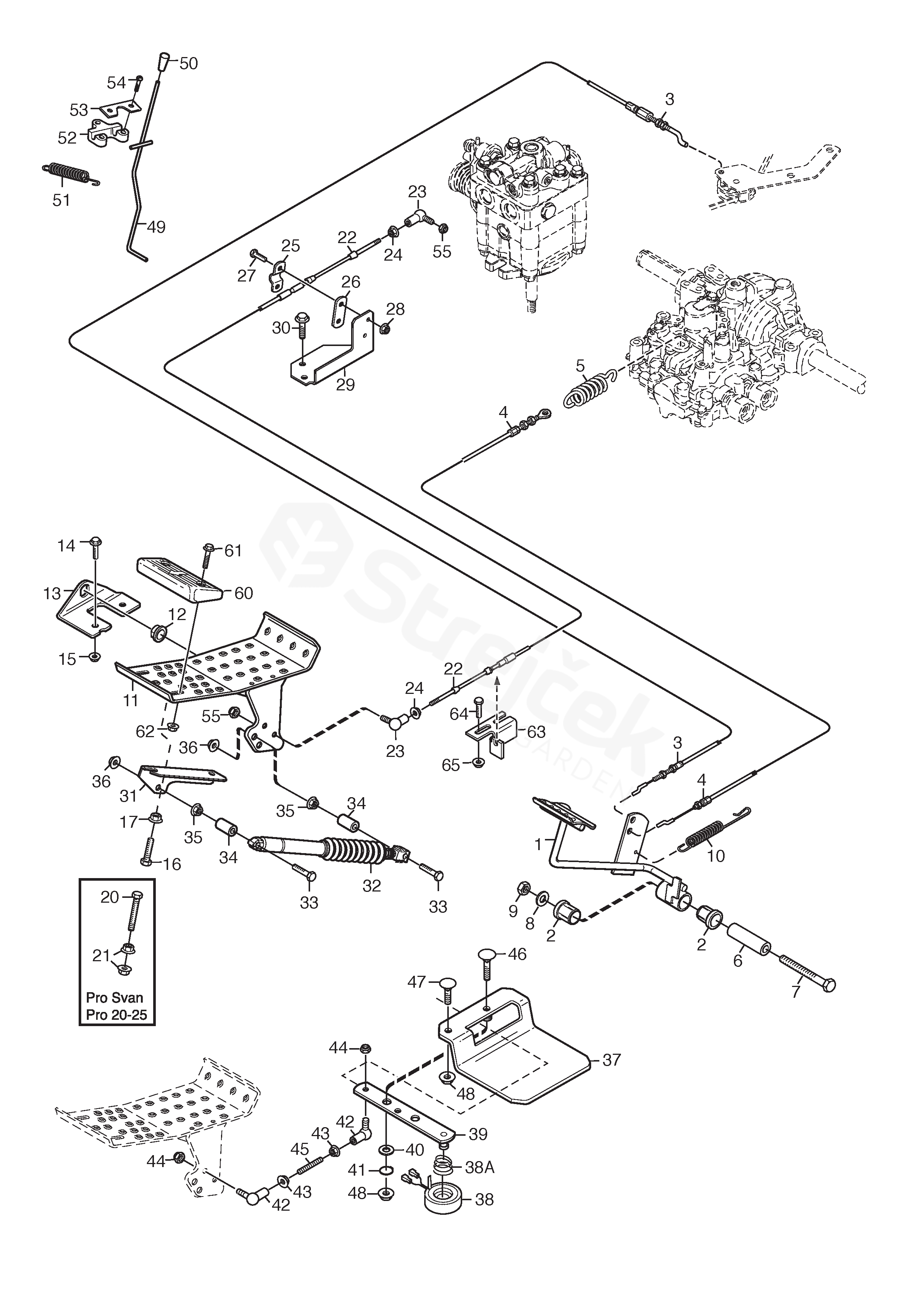

PARK PRO 16 4WD PARK PRO 16 4WD (2007) [13-6241-13]

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For PARK PRO 16 4WD (2007) [13-6241-13]

1	Clutch Pedal	1134-5655-01
2	Bearing Sats 4 st/kit of 4	1134-9024-01
3	Cable	1134-5815-01
4	Cable, Thread Engine Brake	1134-6020-01
5	Spring	1134-5989-01
6	Spacer	1134-5677-02
7	Screw	9997-1070-12
8	Washer	9699-0030-02
9	Nut	9739-1031-22
10	Spring	4231-0013-00
11	Drive Pedal	1134-6353-01
12	Bearing	1134-6313-01
13	Bracket	1134-2700-01
14	Screw	9959-0820-16
15	Nut	9739-0831-22
16	Screw	9997-0835-16
17	Nut	9739-0831-22
22	Control Cable	1134-2766-08
23	Elbow Link	9570-0001-00
24	Nut	9739-0531-22
25	Attaching clamp	1134-0266-00
26	Clamp Plate	1134-0267-00
27	Screw	9997-0520-16
28	Nut	9739-0531-22
29	Cable Bracket	1134-5689-01
30	Screw	9945-0816-16
31	Bracket	1134-3996-01
32	Damper	1134-4187-01
33	Screw	9997-0840-16
34	Spacer	1134-1565-09
35	Nut	9739-0831-22
36	Nut	9747-0831-02
37	Speed Control Plate Assy	1134-6356-01
38	Spring	1134-2859-02
39	Lever	1134-6358-01
40	Washer	9699-0036-02
41	Circlip	9650-0012-04
42	Elbow Link	9570-0001-00
43	Nut	9739-0531-22
44	Nut	9747-0531-02
45	Screw	1134-6361-02
46	Screw	9897-0640-12
47	Screw	9897-0616-16
48	Nut	9739-0631-22
49	Brake Rod	1134-5101-01
50	Knob	1134-3808-01
51	Brake Spring	1131-1497-01
52	Brake Rod Attachment	1134-4002-01
54	Screw	9838-9516-12
55	Nut	9747-0531-02
60	Foot rest	1134-6340-01
61	Screw	9959-0620-16
62	Nut	9739-0631-22
63	Wire Bracket	1134-6317-01
64	Screw	9959-0620-16
65	Nut	9739-0631-22
38A	Spring	1134-2858-01
