Spare parts > STIGA > Front Mowers > PARK 18HST MAGPRO PARK 18HST MAGPRO (1997) [13-1448-20] > Power take-off
Back to

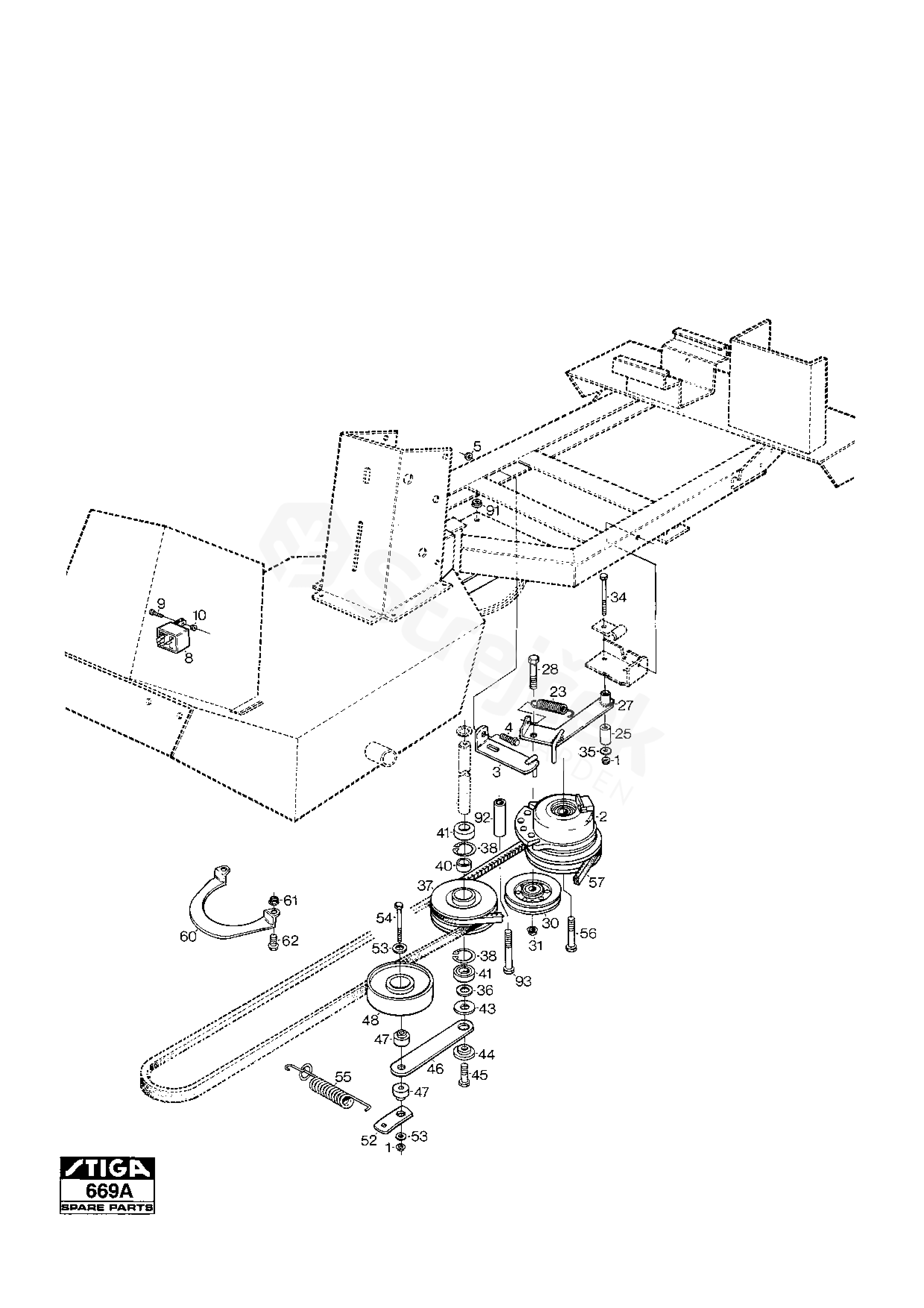

Power take-off
PARK 18HST MAGPRO PARK 18HST MAGPRO (1997) [13-1448-20]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK 18HST MAGPRO (1997) [13-1448-20]
1 Nut 9739-0831-22
2 Electric Pto-Clutch 1134-3638-01
3 Support Stay 1134-3712-01
4 Screw 9959-0820-16
5 Nut 9739-0831-22
8 Relay 1134-2871-03
9 Screw 9997-0520-16
10 Nut 9739-0531-22
23 Spring 1134-3379-01
25 Spacer 1134-1565-01
27 Tensioning arm 1134-3658-01
28 Screw 9997-1040-12
30 Tension Wheel 1134-3663-01
31 Nut 9739-1031-22
34 Screw 9997-0850-16
35 Washer 9699-0056-02
36 Spacer 1134-0052-00
37 Belt Pulley 1134-1769-02
38 Circlip 9651-0040-04
40 Spacer 1134-0051-09
41 Ball Bearing 9549-0019-00
43 Washer 9699-0109-02
44 Washer 1134-0222-00
45 Screw 9959-1025-16
46 Tensioning Wheel Arm 1134-1730-01
47 Spacer 1134-1888-01
48 Tension Roller 1134-1770-01
52 Spring 1134-1893-01
53 Washer 9699-0062-02
54 Screw 9997-0865-12
55 Tensioning Wheel Spring 1134-1322-01
56 Screw 9987-5357-12
57 V-Belt
= 9585-0088-00 		1134-9047-01
60 Guard 1134-3654-01
61 Nut 9739-0631-22
62 Screw 9959-0612-16
91 Nut 9739-1031-22
92 Bushing 1134-0041-03
93 Screw 9997-1070-12
