Spare parts > STIGA > Front Mowers > PARK PRO 18 PARK PRO 18 (1998) [13-1818-21] > Engine (W. Catalytic Conv.) Brake
Back to

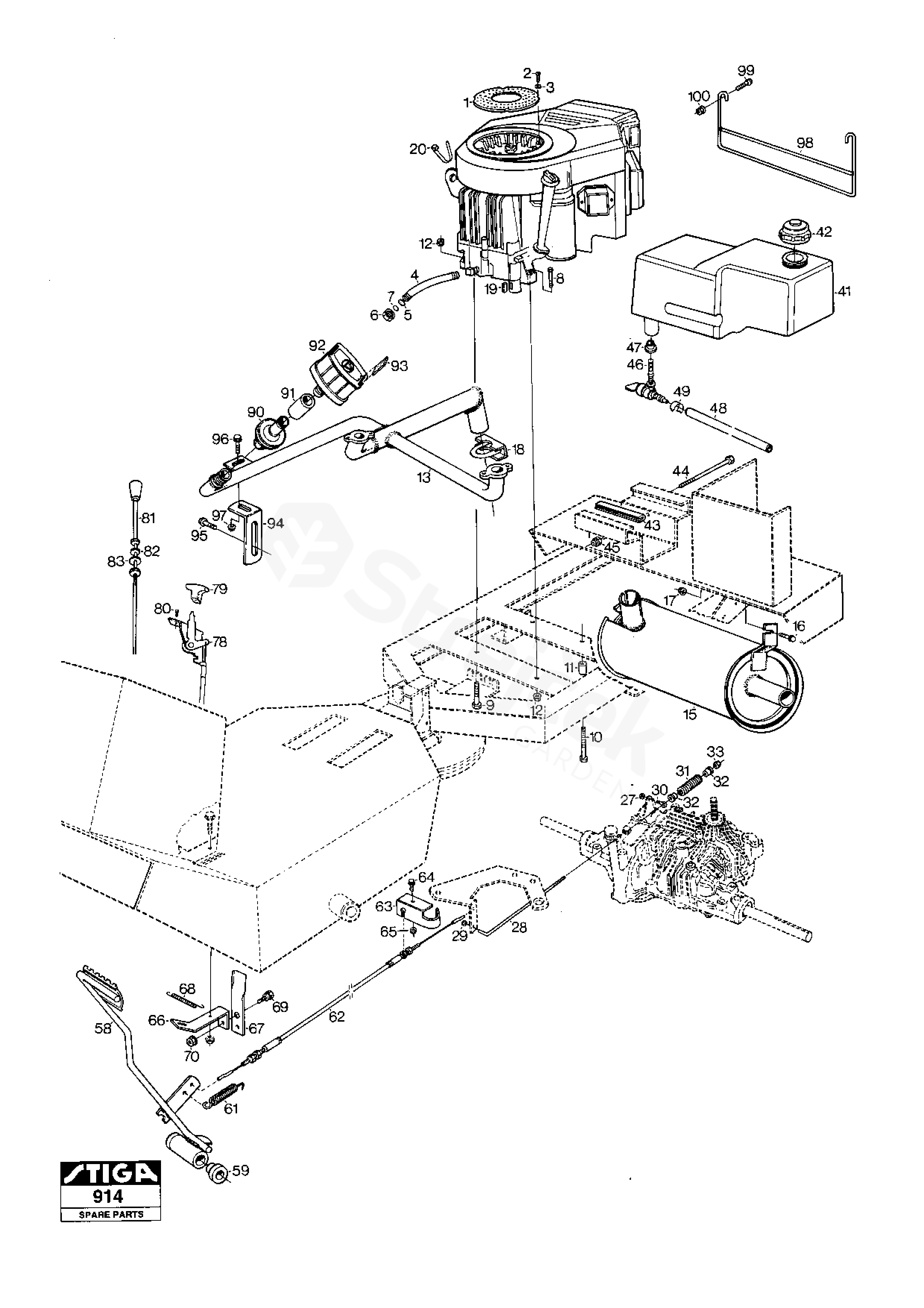

Engine (W. Catalytic Conv.) Brake
PARK PRO 18 PARK PRO 18 (1998) [13-1818-21]
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK PRO 18 (1998) [13-1818-21]
1 Fan cover 1134-2878-01
2 Screw 9997-0512-16
3 Washer 9699-0099-02
4 Oil Drain Pipe 1134-3355-01
5 Gasket 1134-0997-01
6 Plug 1134-0995-01
7 O-Ring 9404-0020-00
8 Screw
L = 40 mm 		9997-0840-16
10 Screw
L = 70 mm 		9997-0870-16
11 Bushing 1134-0041-02
13 Exhaust Pipe 1134-3857-01
15 Muffler Catalytic Conv. 1134-3864-01
16 Screw 9959-0816-16
18 Clamp 9578-0011-00
19 Key 9600-0251-00
20 Cable Holder 9579-0003-00
27 Lock Nut 9747-0631-02
28 Control Rod 1134-3377-01
29 Starlock 9675-0008-02
30 Eye Bolt 1134-1889-01
31 Brake Spring 1134-1023-00
32 Bushing 1134-3456-01
41 Fuel Tank 1134-3593-01
42 Fuel Tank Cap 1134-2877-02
43 Protection Strip 1134-2941-01
44 Screw 9997-0812-02
45 Nut 9747-0831-02
46 Fuel Shut-Off Valve 1134-3224-01
47 Grommet 1134-3225-01
48 Fuel Line
L = 710 mm 		1134-2975-04
49 Hose clamp 1134-3499-01
58 Pedal
Vä sida/L.H. side 		1134-3450-02
59 Bearing
Sats 4 st/kit of 4 		1134-9024-01
61 Spring 1131-1506-00
62 Wire 1134-3584-01
63 Attachment 1134-3387-01
66 Stay 1134-1184-02
67 Stop 1134-2151-02
68 Brake Spring 1131-1497-01
69 Screw 1134-0245-00
78 Throttle Cable 1134-1975-12
79 Knob 9403-0035-10
80 Screw 9849-8013-16
81 Choke Control 1134-2872-01
82 Washer
8.4 x 16 x 1.5 mm 		9699-0028-02
83 Washer
8.4 x 22 x 1.5 mm 		9699-0062-02
90 Air Valve 1134-3863-01
91 Hose 1134-3856-01
92 Filter 1134-3855-01
93 Seal 1134-3889-01
94 Bracket 1134-3860-01
95 Screw 9942-0816-16
98 Heat Guard 1134-3868-01
99 Screw 9959-0820-16
100 Nut 9739-0831-22
