STIGA
>
Front Mowers
>
PARK PRO 18 PARK PRO 18 (1999) [13-1448-22]
>

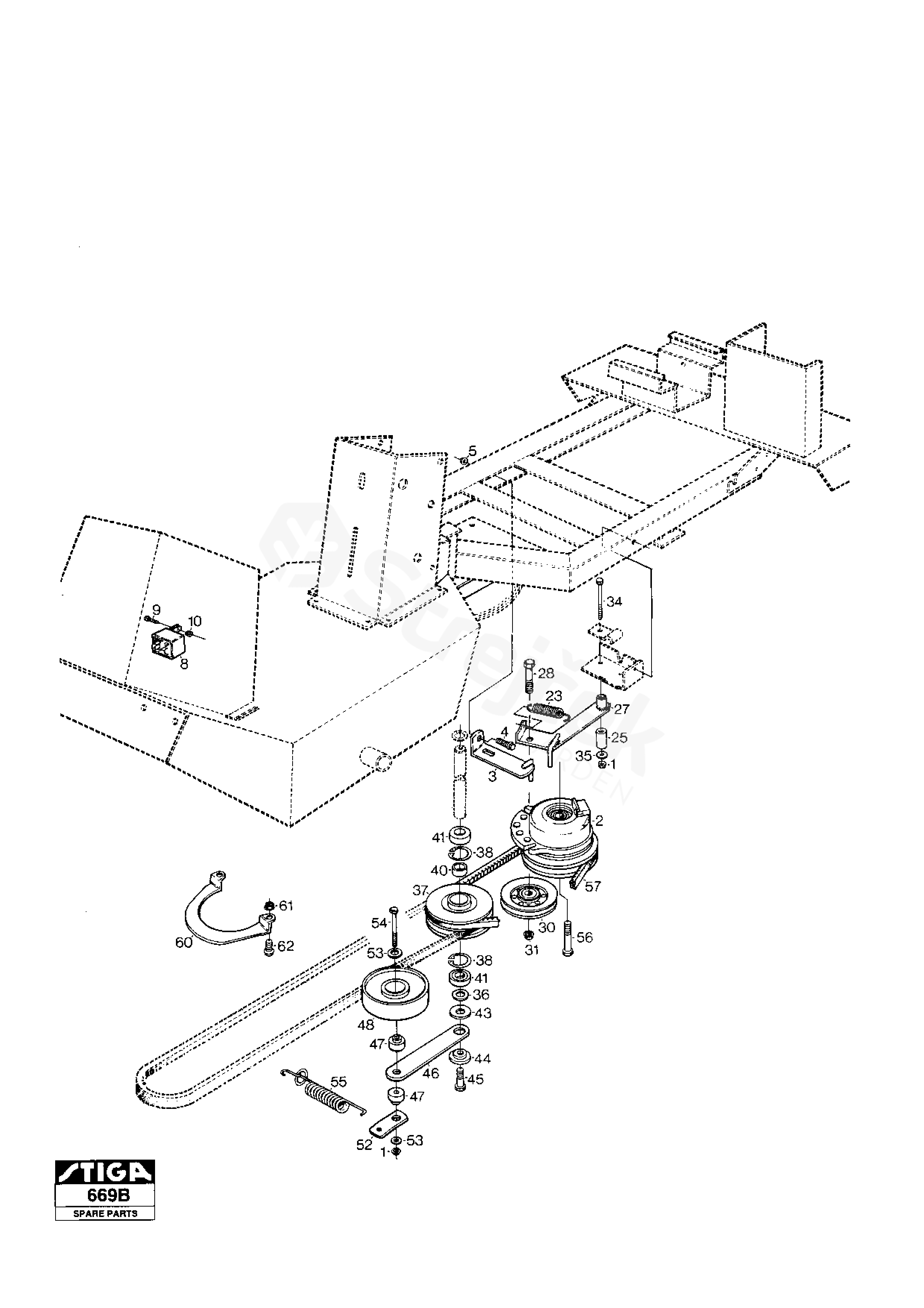

Power take-off
Back to
PARK PRO 18
PARK PRO 18 (1999) [13-1448-22]
Power take-off
PARK PRO 18
PARK PRO 18 (1999) [13-1448-22]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 18 (1999) [13-1448-22]
1
Nut
9739-0831-22
2
Electric Pto-Clutch
1134-3638-01
3
Support Stay
1134-3712-01
4
Screw
9959-0820-16
8
Relay
1134-2871-03
9
Screw
9997-0520-16
10
Nut
9739-0531-22
23
Spring
1134-3379-01
25
Spacer
1134-1565-01
27
Tensioning arm
1134-3658-01
28
Screw
9997-1040-12
30
Tension Wheel
1134-3663-01
31
Nut
9739-1031-22
34
Screw
9997-0850-16
35
Washer
9699-0056-02
36
Spacer
1134-0052-00
37
Belt Pulley
1134-1769-02
38
Circlip
9651-0040-04
40
Spacer
1134-0051-09
41
Ball Bearing
9549-0019-00
43
Washer
9699-0109-02
44
Washer
1134-0222-00
45
Screw
9959-1025-16
46
Tensioning Wheel Arm
1134-1730-01
47
Spacer
1134-1888-01
48
Tension Roller
1134-1770-01
52
Spring
1134-1893-01
53
Washer
9699-0062-02
54
Screw
9997-0865-12
55
Tensioning Wheel Spring
1134-1322-01
56
Screw
9987-5357-12
57
V-Belt
9497
1134-9047-01
60
Guard
1134-3654-01
61
Nut
9739-0631-22
62
Screw
9959-0612-16
