STIGA
>
Front Mowers
>
PARK PRO 18 PARK PRO 18 (2001) [13-6218-42]
>

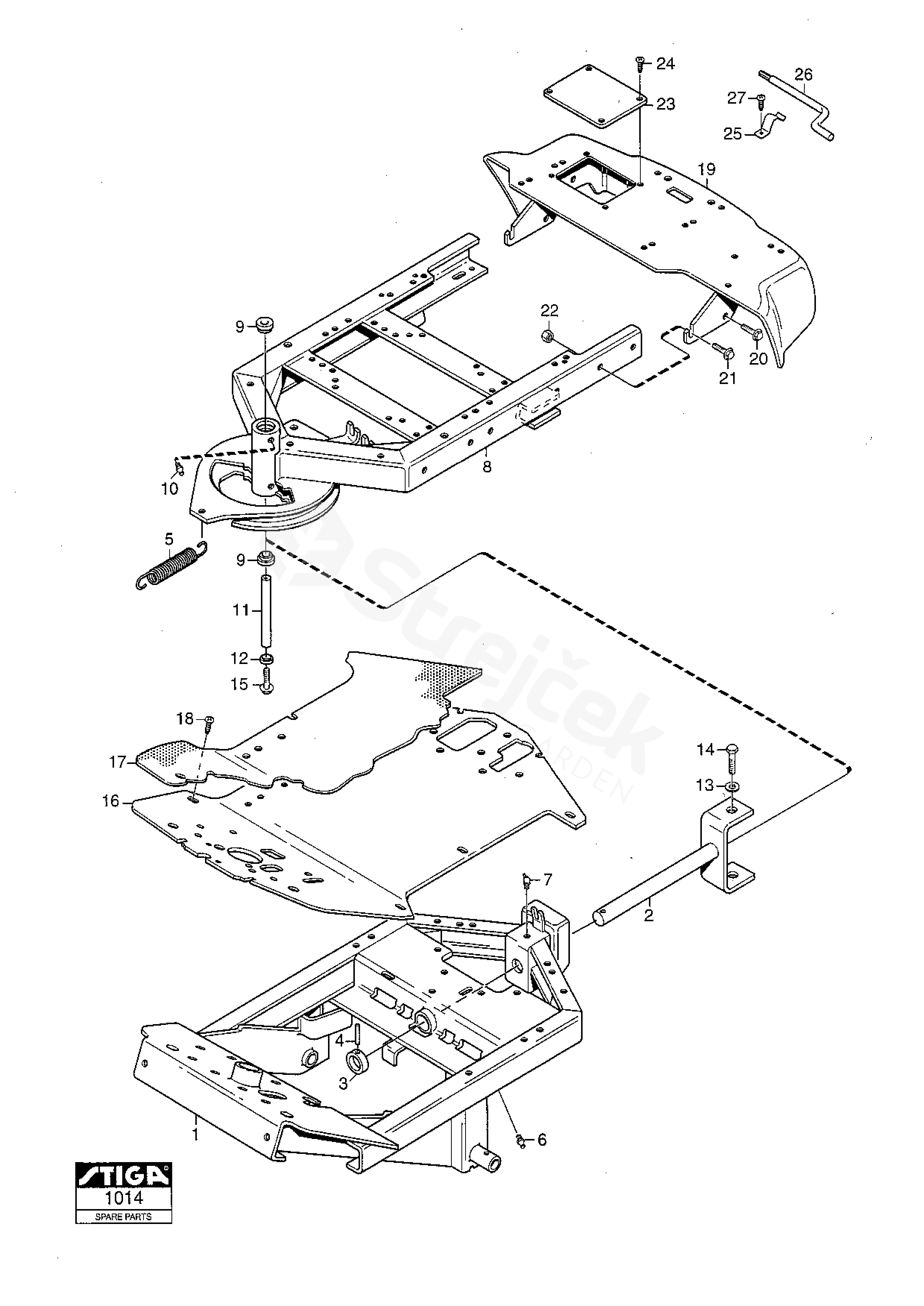

Frame
Back to
PARK PRO 18
PARK PRO 18 (2001) [13-6218-42]
Frame
PARK PRO 18
PARK PRO 18 (2001) [13-6218-42]
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 18 (2001) [13-6218-42]
1
Frame-Front
1134-3919-01
2
Fork
1134-3963-02
3
Pivot Shaft Stop
1134-0031-00
4
Locating Pin
9595-0262-00
5
Spring
1134-2171-01
7
Grease Joint
9501-0502-00
8
Frame-Rear
1134-3966-01
9
Bearing
9547-0001-00
10
Grease Dispenser
9501-0500-00
11
Centre Shaft
1134-3968-01
12
Spacer
1134-0052-00
13
Washer
9699-0035-02
14
Screw
9959-1020-16
15
Screw
9959-1025-16
16
Floor Plate
1134-3965-01
17
Floor Mat
1134-4061-01
18
Screw
9893-0616-16
19
Bumper, Grey
1134-4060-01
20
Screw
9945-0816-16
21
Screw
9959-0820-16
22
Nut
9739-0831-22
23
Cover
1134-4167-01
24
Screw
9840-8009-16
25
Clips
1134-4457-01
26
Hex wrench
1134-4215-01
