Spare parts > STIGA > Front Mowers > Park Pro 340 IX Park Pro 340 IX (2016) > Seat & Steering Wheel
Back to

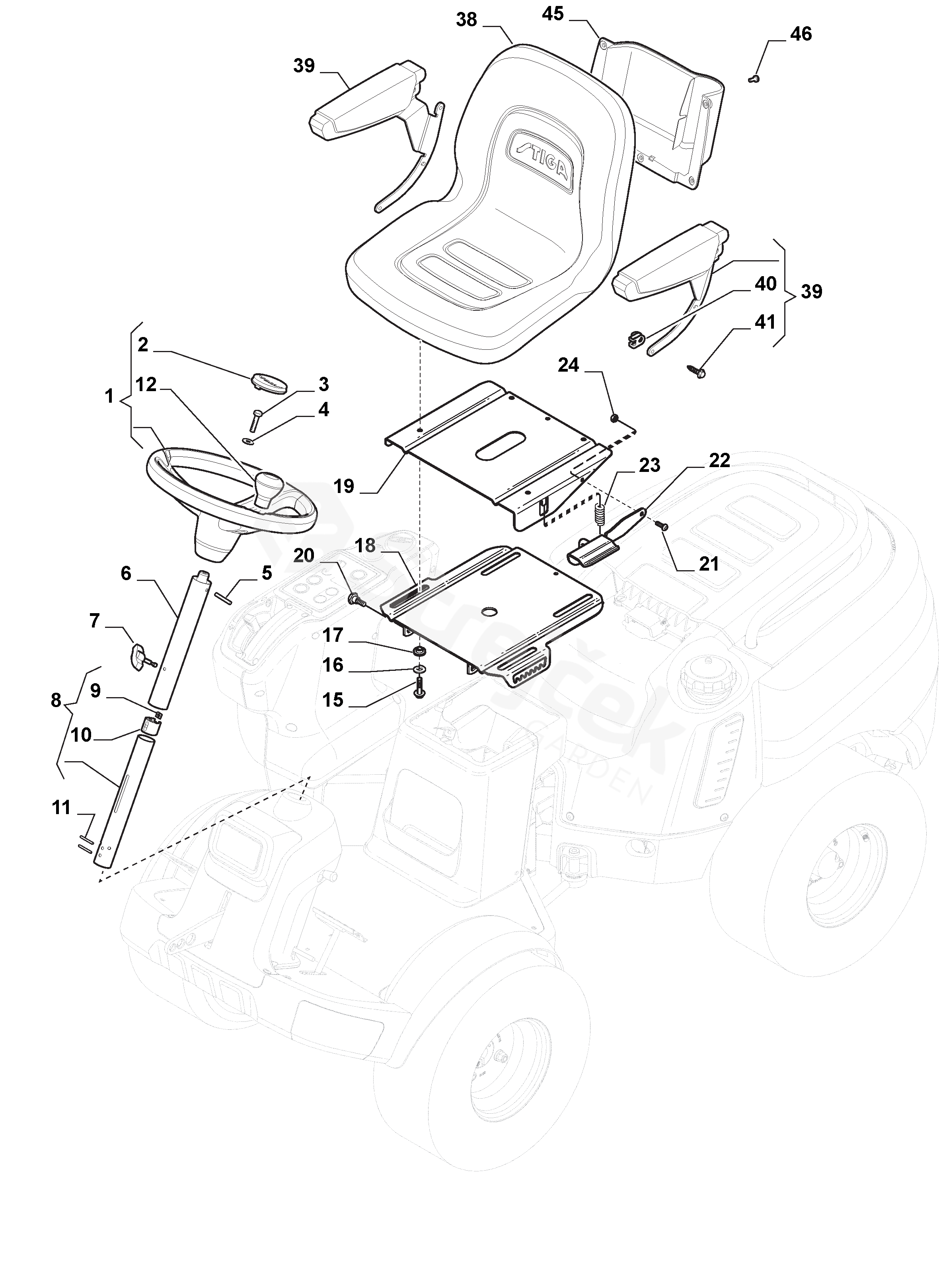

Seat & Steering Wheel
Park Pro 340 IX Park Pro 340 IX (2016)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Park Pro 340 IX (2016)
1 Steering wheel 337961200/0
2 Steering Plate 337580550/0
3 Screw 112793102/0
4 Grower 112583500/0
5 Elastic Pin 112620299/0
6 Steering Column 387520101/1
7 Wing Nut 337394201/0
8 Steering Column 387520105/1
9 Nut 9710-0631-12
10 Slide 1134-5177-01
11 Locating Pin 9595-0262-00
12 Knob 187593701/0
15 Screw 112793301/0
16 Grower 112583500/0
17 Flange Washer 1134-6078-01
18 Slide Plate-Lower Assy 1137-0055-01
19 Slide Plate-Upper 1134-6090-01
20 Screw 1134-0240-00
21 Screw 9893-0616-16
22 Brake Arm 387318251/0
23 Spring 1134-3262-01
24 Nut 112154510/0
38 Seat 137722601/0
39 Arm Rest Kit 387185100/0
40 Nut 1139-0011-01
41 Screw 1139-0010-01
45 Tray 337592350/0
46 Screw 112727801/0
