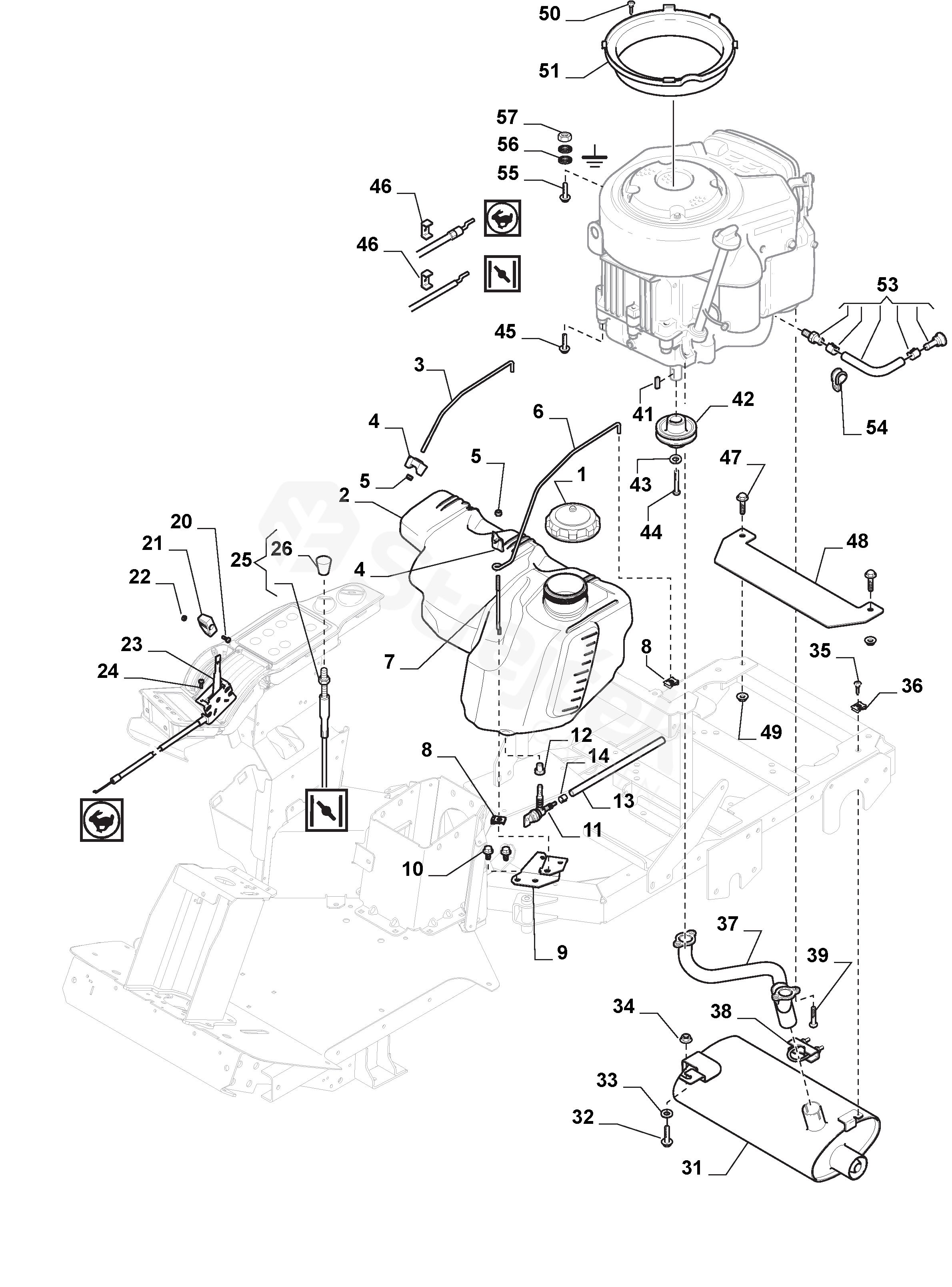

Spare parts - Partlist - Park Pro 340 IX Park Pro 340 IX (2016) - Engine - B&S

Everything for your machines

Park Pro 340 IX Park Pro 340 IX (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park Pro 340 IX (2016)

1	Fuel Cap	137793050/0
2	Fuel Tank From 01-September-2015	337735110/1
3	Fuel Tank Loop	137840001/0
4	Wing Nut	1134-4481-02
5	Nut	112154510/0
6	Fuel Tank Loop	137840002/0
7	Fuel Tank Loop	137840003/0
8	Clips	1134-4176-01
9	Tank Support	337785023/0
10	Screw	9945-0816-16
11	Fuel Shut-Off Valve	1134-3224-01
12	Grommet	1134-3225-01
13	Fuel Tube Cutting length 0,65 mt	1134-2975-13
14	Hose clamp	9578-0023-02
20	Screw	112726388/0
21	Knob	337592150/0
22	Nut	112290800/0
23	Throttle Control	187000204/0
24	Screw	112735105/0
25	Choke Control	137090200/0
26	Control Button-Choke	1134-4338-01
31	Muffler Assy	1137-0179-01
32	Screw	9959-0820-16
33	Washer	112523060/0
34	Nut	112154220/0
35	Screw	9893-0616-16
36	Washer	1137-1130-01
37	Exhaust Pipe Assy From 01-September-2015	118738253/0
38	Band	084-351-01
39	Screw	112737450/0
41	Key	9600-0251-00
42	Engine Belt Pulley	1137-0207-01
43	Washer	112543000/0
44	Screw	9987-5376-12
45	Screw	9955-3725-16
46	Wire Clamp	1137-0115-01
47	Screw	9959-0820-16
48	Deflector	1137-0072-01
49	Nut	112154220/0
50	Screw	112728698/0
51	Air Conveyor	337108501/0
53	Oil Discharge Extension From 01-September-2015	1137-1018-01
54	Cable Holder	133320509/0
55	Screw	112691115/0
56	Washer	112540260/0
57	Nut	112154210/0
