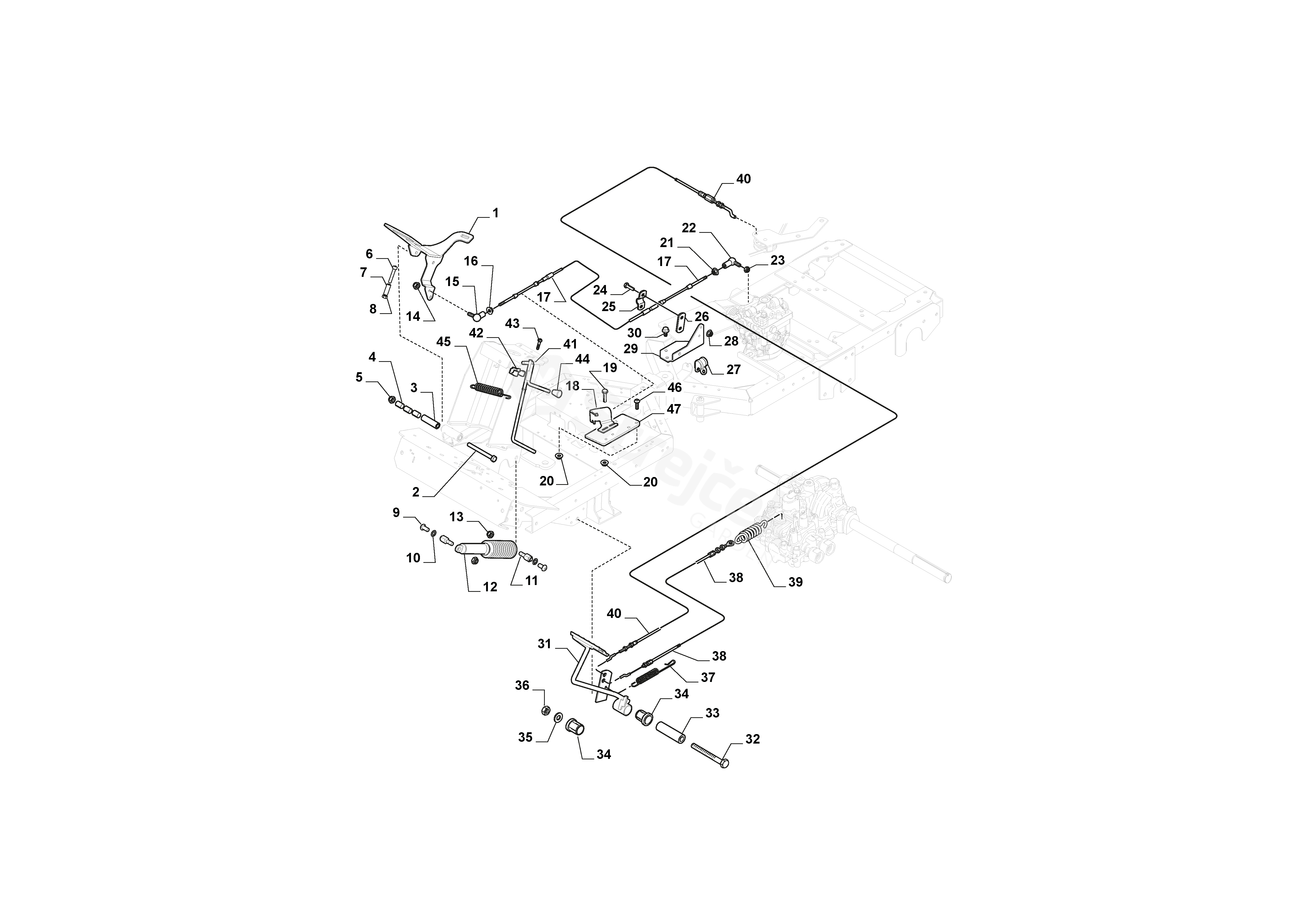

Spare parts - Partlist - Park Pro 540 IX Park Pro 540 IX (2020) - Foot Controls

Everything for your machines

Park Pro 540 IX Park Pro 540 IX (2020)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Park Pro 540 IX (2020)

1	Drive Pedal	387500001/1
2	Screw	112692050/0
3	Spacer	137160000/0
4	Bush	137040600/0
5	Nut	112155015/0
6	Screw	112760520/0
7	Spacer	1134-1565-14
8	Nut	112155015/0
9	Screw	112760600/0
10	Grower	112583500/0
11	Pin	137510302/0
12	Damper	1134-4187-01
13	Nut	112155000/0
14	Nut	112154330/0
15	Elbow Link	9570-0001-00
16	Nut	9739-0531-22
17	Cable	187000210/0
18	Plate	337546551/0
19	Screw	9959-0620-16
20	Nut	112292102/0
21	Nut	9739-0531-22
22	Elbow Link	9570-0001-00
23	Nut	112154330/0
24	Screw	112789008/0
25	Attaching clamp	1134-0266-00
26	Clamp Plate	325547443/0
27	Hose clamp From serial nr. 19JA1FMV000197	118375061/0
28	Nut	9739-0531-22
29	Clamp From serial nr. 19JA1FMV000197	387773555/1
30	Screw	9945-0816-16
31	Brake Pedal Assy	387500003/0
32	Screw	9997-1070-12
33	Spacer	1134-5677-02
34	Bearing (D=20,4)	1134-0068-00
35	Washer	9699-0030-02
36	Nut	9739-1031-22
37	Spring	4231-0013-00
38	Cable, Thread Engine Brake	137065319/0
39	Spring	1134-5989-01
40	Cable	137065318/0
41	Rod	387000301/0
42	Brake Rod Attachment	1134-4002-01
43	Screw	112728697/0
44	Knob	1134-2786-01
45	Brake Spring	1131-1497-01
46	Screw	9893-0616-16
47	Bracket	387773545/0
