STIGA
>
Front Mowers
>

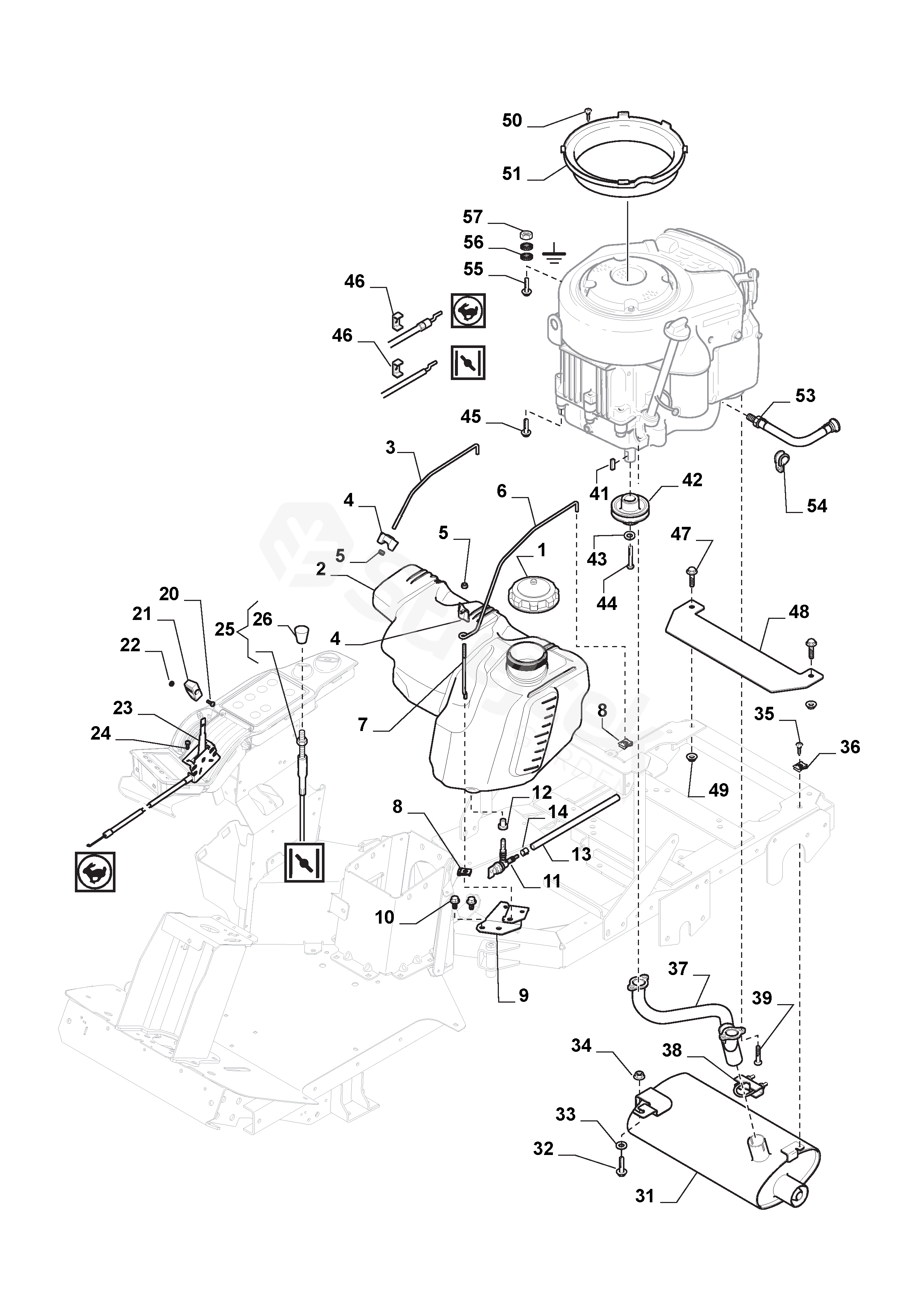

Park Pro 740 IOX PARK PRO 740 IOX (2019)
>
Engine - B&S
Back to
Park Pro 740 IOX
PARK PRO 740 IOX (2019)
Engine - B&S
Park Pro 740 IOX
PARK PRO 740 IOX (2019)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
PARK PRO 740 IOX (2019)
1
Fuel Cap
137793050/0
2
Fuel Tank
337735110/1
3
Fuel Tank Loop
137840001/0
4
Wing Nut
1134-4481-02
5
Nut
112154510/0
6
Fuel Tank Loop
137840002/0
7
Fuel Tank Loop
137840003/0
8
Clips
1134-4176-01
9
Tank Support
337785023/0
10
Screw
9945-0816-16
11
Fuel Shut-Off Valve
1134-3224-01
12
Grommet
1134-3225-01
13
Fuel Tube
Cutting length 0,65 mt
1134-2975-13
14
Hose clamp
9578-0023-02
20
Screw
112726388/0
21
Knob
337592150/0
22
Nut
112290800/0
23
Throttle Control
187000201/0
24
Screw
112735105/0
25
Choke Control
137090200/0
26
Control Button-Choke
1134-4338-01
31
Muffler Assy
1137-0179-01
32
Screw
9959-0820-16
33
Washer
112523060/0
34
Nut
112154220/0
35
Screw
9893-0616-16
36
Washer
1137-1130-01
37
Exhaust Pipe Assy
118738253/1
38
Band
084-351-01
39
Screw
112737450/0
41
Key
9600-0251-00
42
Engine Belt Pulley
1137-0207-01
43
Washer
112543000/0
44
Screw
9987-5376-12
45
Screw
9955-3725-16
46
Wire Clamp
1137-0115-01
48
Deflector
1137-0072-01
50
Screw
112728698/0
51
Air Conveyor
337108501/0
53
Oil Discharge Extension
387869524/0
54
Cable Holder
133320509/0
55
Screw
112691115/0
56
Washer
112540260/0
57
Nut
112154210/0
