Spare parts > STIGA > Front Mowers > PARK PRO DIESEL PARK PRO DIESEL (2003) > PTO
Back to

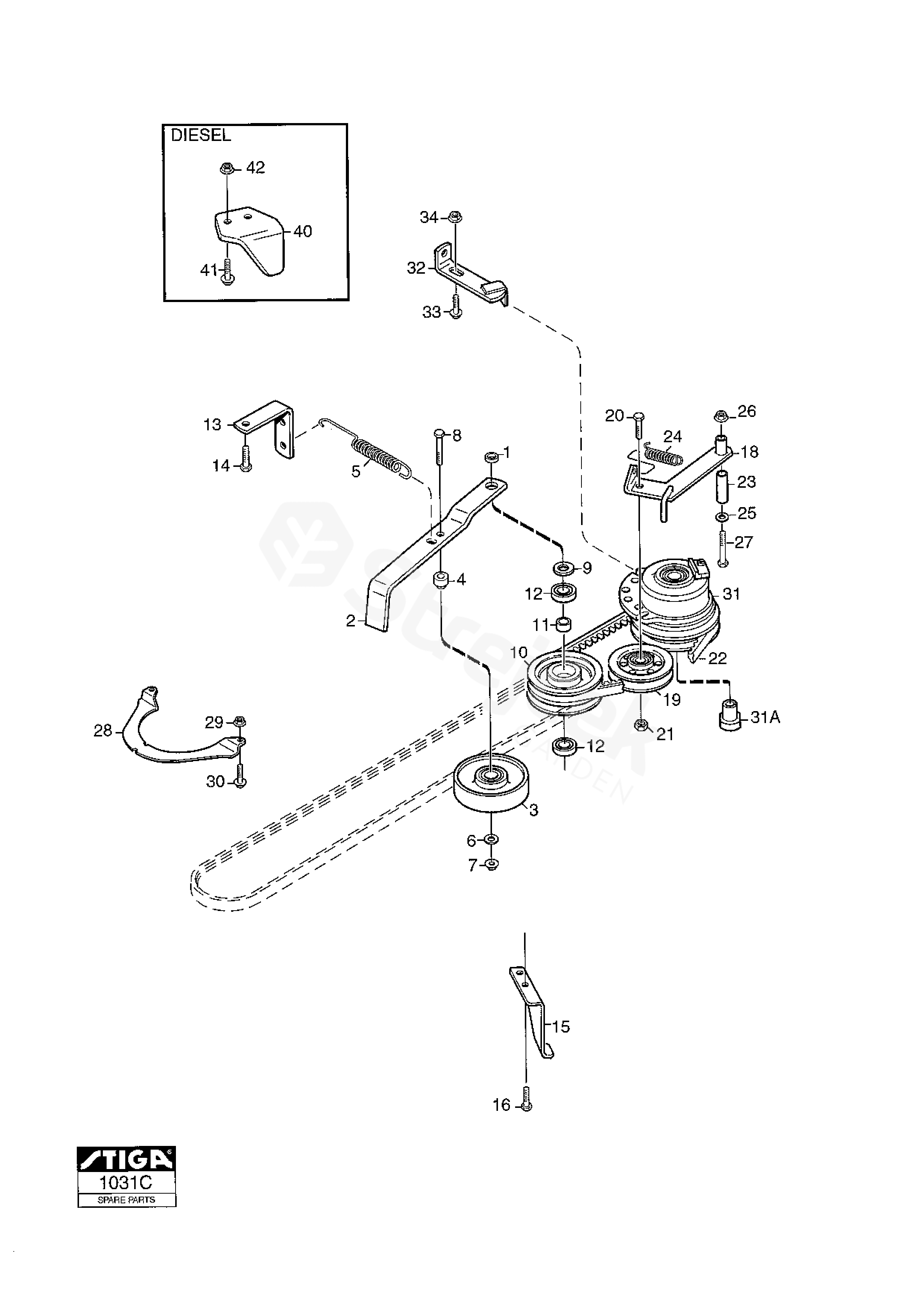

PTO
PARK PRO DIESEL PARK PRO DIESEL (2003)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For PARK PRO DIESEL (2003)
1 Spacer 1134-0051-13
2 Tension Wheel Arm 1134-5109-01
3 Tension Roller 1134-1770-01
4 Spacer 1134-1888-04
5 Spring 1134-5111-01
8 Screw 9997-0855-12
9 Washer 9699-0104-02
10 Belt Pulley 1134-1769-02
11 Spacer 1134-0051-09
12 Ball Bearing 9549-0019-00
13 Spring 1134-5112-01
14 Screw 9945-0816-16
15 Hook 1134-5110-01
16 Screw 9893-0616-16
18 Tensioning arm 1134-3658-01
19 Tension Wheel 1134-3663-01
20 Screw 9997-1040-12
21 Nut 9739-1031-22
22 V-Belt
9497 		1134-9047-01
23 Spacer 1134-1565-01
24 Spring 1134-3379-01
25 Washer 9699-0056-02
26 Nut 9739-0831-22
27 Screw 9997-0850-16
28 Guard 1134-3654-01
29 Nut 9739-0631-22
30 Screw 9959-0612-16
31 Electric Pto-Clutch 1134-3638-01
40 Strut 1134-4924-01
41 Screw 9997-1050-16
31A Bushing 1134-5016-01
