Spare parts - Partlist - TITAN 26 H W CABIN TITAN 26 H W CABIN (2010) - Cabin

Everything for your machines

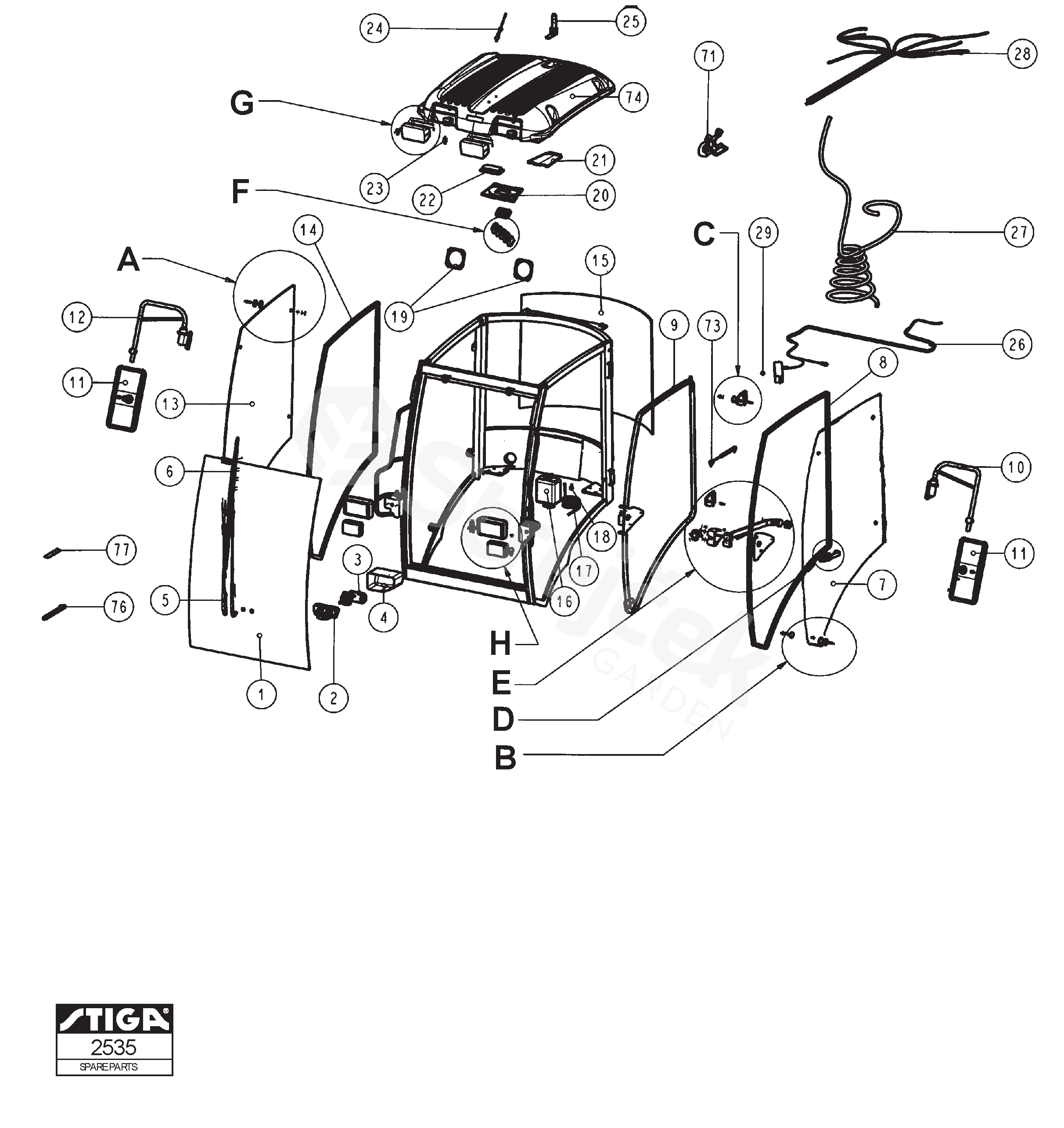

TITAN 26 H W CABIN TITAN 26 H W CABIN (2010)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For TITAN 26 H W CABIN (2010)

1	Wind Screen	1319-1134-01
2	Bracket-Wind Screen Wiper Motor	1319-1149-01
3	Wind Screen Wiper Motor	1319-1150-01
4	Cover	1319-1165-01
5	Wind Screen Wiper Arm	1319-1151-01
6	Wind Screen Wiper Blade	1319-1152-01
7	Door Glass-Lh	1319-1135-01
8	Rubber Seal (Meter) 5,1 Meter Part No/detaljnr per m	1319-1142-01
9	Door frame	1319-1112-01
10	Mirror Arm, Lh	1319-1124-01
11	Mirror	1319-1125-01
12	Mirror Arm, Rh	1319-1123-01
13	Side Glass-Rh	1319-1136-01
14	Rubber Seal (Meter) Part No/detaljnr per m	1319-1142-01
15	Rear Glass	1319-1137-01
16	Water Tank	1319-1119-01
17	Water Hose (Meter) Part No/detaljnr per m	1319-1129-01
18	Valve	1319-1128-01
19	Speaker Cover	1319-1130-01
20	Switch Bracket	1319-1164-01
21	Cover	1319-1163-01
22	Roof Lamp	1319-1122-01
23	Water Nozzle	1319-1118-01
24	Antenna	1319-1131-01
25	Bracket-Beacon	1319-1120-01
26	Cables W Fuse Box	1319-1116-01
27	Lamp Cables	1319-1117-01
28	Front Light Cables	1319-1115-01
29	Fuse 15A	1134-3496-05
71	Roof Handle	1319-1144-01
73	Gas Spring	1319-1132-01
74	Roof Assy Inklusive 24-28.	1319-1162-01
75	Emergency Hammer Not ill./ej ill.	1319-1126-01
76	Sponge 3X130 (Meter) 2,1 Meter. Part No/detaljnr per m	1319-1140-01
77	Sponge 10X15 (Meter) 2,2 Meter . Part No/detaljnr per m	1319-1141-01
