Titan 26H w Cabin + AC Titan 26H w Cabin + AC (2010)
>
Electric system
Back to
Titan 26H w Cabin + AC
Titan 26H w Cabin + AC (2010)

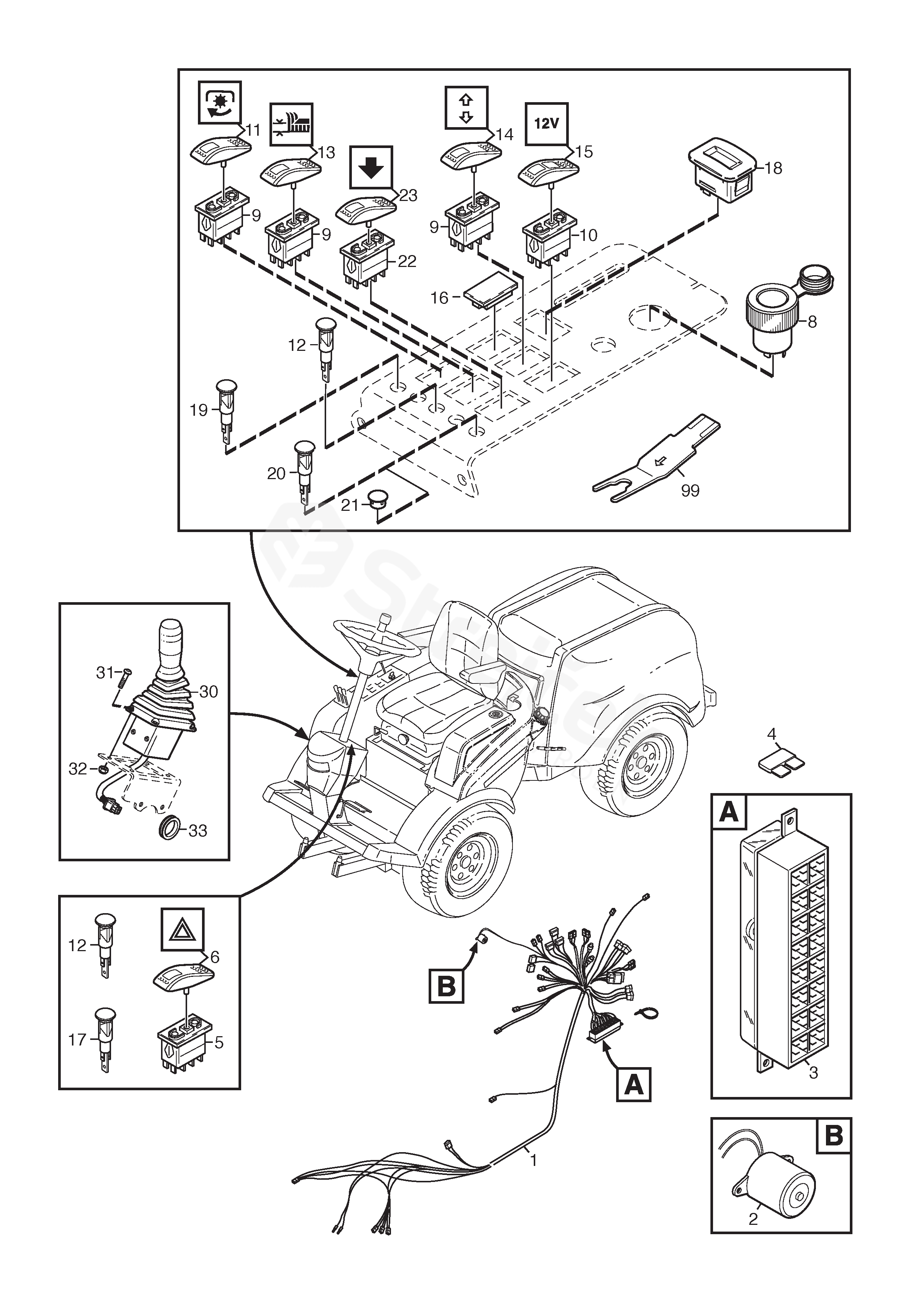

Electric system
Titan 26H w Cabin + AC
Titan 26H w Cabin + AC (2010)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Titan 26H w Cabin + AC (2010)
1
Wire Harness (Front)
-90416
1135-2809-01
2
Buzzer
1134-7530-01
3
Cover-Fuse Box
9400-0350-01
4
Fuse (40A)
40A
1134-3496-08
5
Switch
with cabin/med hytt
9400-0345-01
6
Switch Cover-Warning
with cabin/med hytt
9400-0343-02
8
Auxiliary Accessory Socket
9400-0317-01
9
Switch
9400-0282-01
10
Rocker Switch
9400-0321-01
11
Switch Cover-Pto
PTO
9400-0343-01
12
Control Lamp
9400-0346-01
13
Switch Cover-Height Adjust
9400-0280-03
14
Switch Cover-Rear Rake
9400-0280-04
15
Hub Cover
9400-0322-01
16
Cover
1134-4129-01
17
Control Lamp
with cabin/med hytt
9400-0320-03
18
Hour Meter
1134-6097-01
19
Warning Light (Red)
9400-0320-01
20
Warning Light (Orange)
26H and 32H
9400-0320-02
21
Cover Plug
26B
9403-0054-01
22
Switch
32H
9400-0283-01
23
Switch Cover-Valve
32H
9400-0280-08
30
Light Control Switch
with cabin/med hytt
9400-0336-01
31
Screw
with cabin/med hytt
9997-0416-16
32
Nut
with cabin/med hytt
9747-0421-02
33
Grommet
with cabin/med hytt
9400-0340-01
99
Tool
Acessory/tillbehör
9400-0290-01
