Spare parts > STIGA > Front Mowers > Titan 540 D Titan 540 D (2013) > Lifting Device
Back to

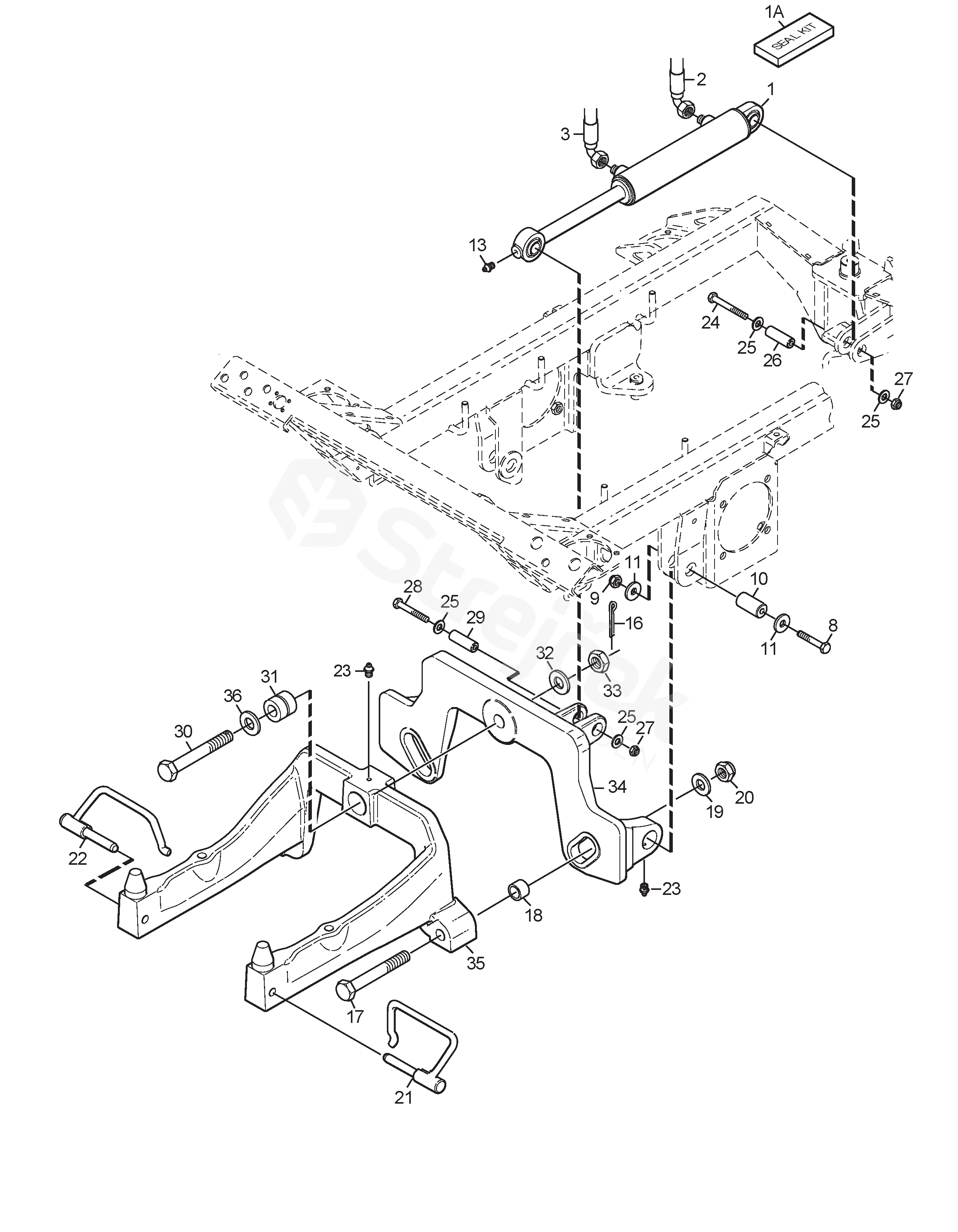

Lifting Device
Titan 540 D Titan 540 D (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Titan 540 D (2013)
1 Lift Cylinder
Stroke = 120 mm 		1134-6801-01
2 Hydraulic Hose 1137-0186-09
3 Hydraulic Hose 1137-0185-21
8 Screw 9997-1070-12
9 Lock Nut 9747-1031-02
10 Pin-Accessory Lift 1134-6991-01
11 Washer 1134-5406-01
16 Cotter Pin 9599-0101-02
17 Screw 082-202-01
18 S.P. 1134-3054-01
19 Washer 9690-0001-02
20 Nut 9747-1631-02
21 Lock Pin-Lh 1134-7842-01
22 Lock Pin-Rh 1134-7842-02
23 Grease Dispenser 9501-0500-00
24 Screw 9997-0860-12
25 Washer 9699-0056-02
26 Shaft 1134-7557-01
27 Nut 9747-0831-02
28 Screw 9997-0870-16
29 Shaft 1134-7557-02
30 Screw 1135-3306-01
31 Bushing 1135-3055-01
32 Washer 9690-0002-02
33 Nut 9747-2031-02
34 Rear Part Access Att. Assy 1135-4092-01
35 Implement Attachment 1135-3003-01
