Spare parts > STIGA > Front Mowers > Titan 740 DC Titan 740 DC (2013) > Cabin
Back to

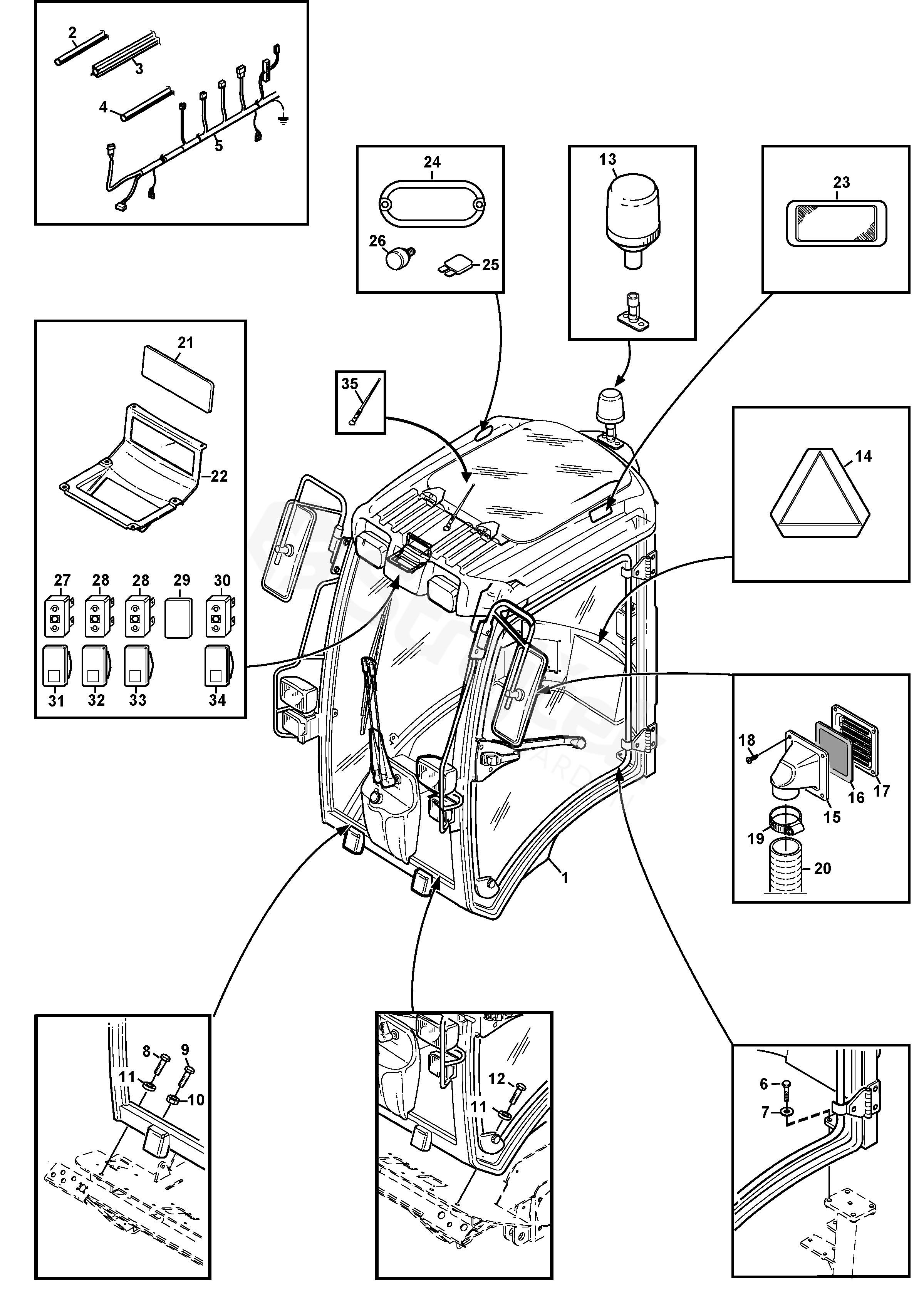

Cabin
Titan 740 DC Titan 740 DC (2013)
Hover mouse on parts list
Wheel: Zoom, left button: Movement
Other parts For Titan 740 DC (2013)
1 Cabin 1137-0734-01
2 Sealing Strip 1135-3967-01
3 Sealing Strip 2010 1135-3768-01
4 Tape Eigenbr. 084-237-01
5 Front Light Cables 1319-1115-01
6 Screw 9997-1035-16
7 Washer 084-232-01
8 Screw 9997-1030-16
9 Screw 9997-1040-16
10 Nut 9739-1031-22
11 Washer 9699-0035-02
12 Screw 9997-1035-16
14 SMW label
Finished product 		13-7962-11
15 Air Intake 1319-1169-01
16 Air Filter 1319-1171-01
17 Filter Grid 1319-1170-01
18 Screw 9893-0616-16
19 Hose clamp 085-018-01
20 Hose D60 (Paper Alu) 1135-2954-01
21 Cover-Worklamps 1319-1104-01
22 Deckel Water Tank 1319-1192-01
23 Inner Light 1319-1184-01
24 Cover 1319-1185-01
25 S.P. 1319-1186-02
26 Washer 1319-1111-01
27 Switch-Worklamps 1319-1109-01
28 Switch-Worklamps 1319-1109-01
29 Cover 1319-1103-01
30 Switch-Wind Screen Wiper 1319-1110-01
31 Washer 1319-1107-01
32 Cover-Beacon 1319-1108-01
33 Cover-Worklamps 1319-1104-01
34 Cover-Wiper 1319-1106-01
35 Antenna 1319-1131-01
