STIGA
>
Front Mowers
>
Titan 740 DCR Titan 740 DCR (2013)
>
Cabin
Back to
Titan 740 DCR
Titan 740 DCR (2013)
Cabin
Titan 740 DCR
Titan 740 DCR (2013)

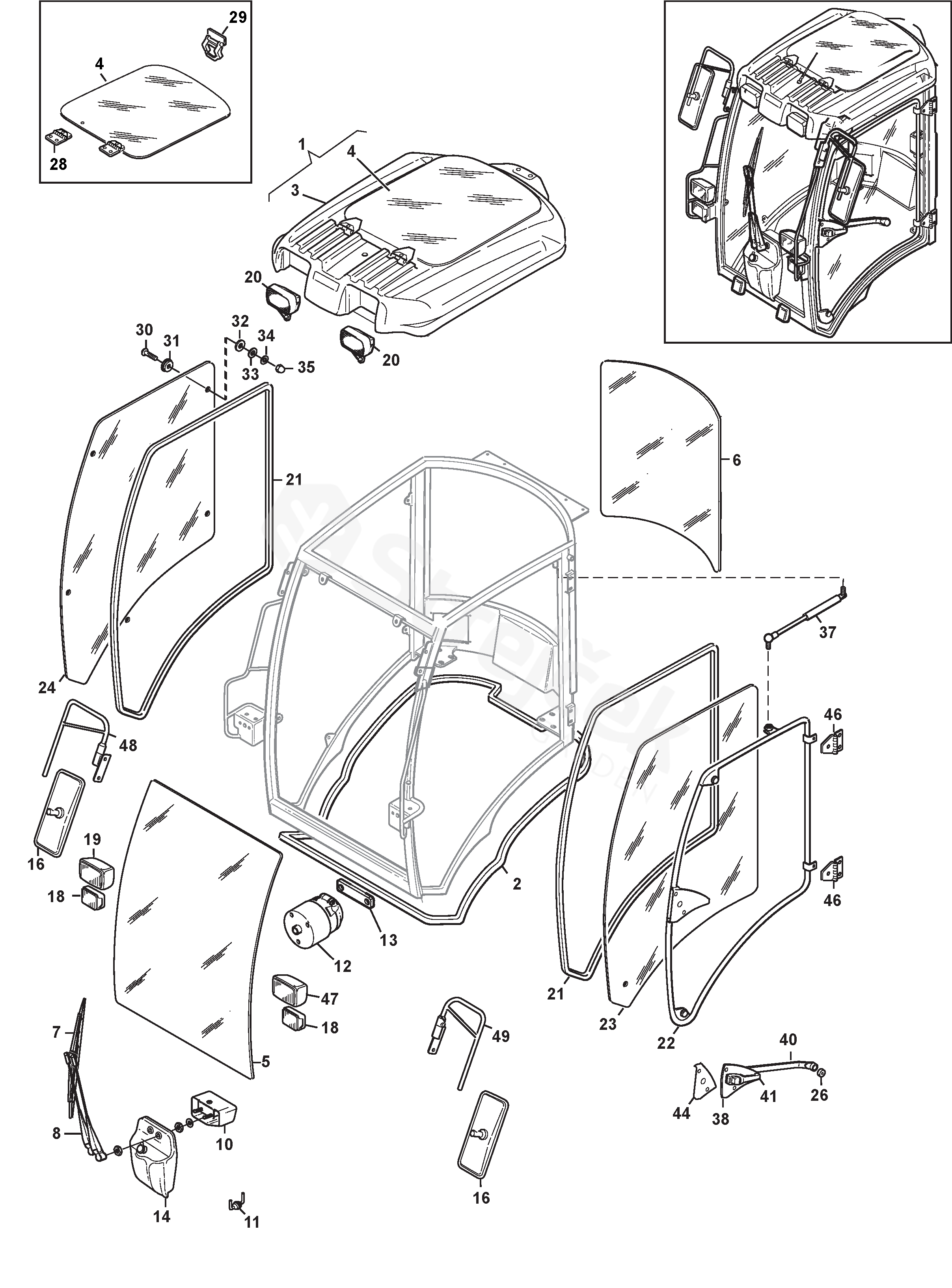

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Titan 740 DCR (2013)
1
Roof Assy
1319-1162-01
2
Cabin support seal
1319-1189-01
3
Roof
1319-1172-01
4
Upper glass
1319-1174-01
5
Wind Screen
1319-1134-01
6
Rear Glass
1319-1137-01
7
Wind Screen Wiper Blade
1319-1152-01
8
Wind Screen Wiper Arm
1319-1151-01
10
Cover
1319-1168-01
11
Valve
1319-1128-01
12
Wind Screen Wiper Motor
1319-1150-01
13
Bracket-Wind Screen Wiper Motor
1319-1149-01
14
Water tank assy
1319-1190-01
16
Mirror
1319-1125-01
18
Direction Light
1319-1100-01
19
Headlamp-Rh
1319-1101-01
20
Work Lamp
1319-1121-01
21
Rubber Seal (Meter)
1319-1142-01
22
Door frame
1319-1180-01
23
Door Glass-Lh
1319-1135-01
24
Side Glass-Rh
1319-1136-01
26
Spacer
1319-1127-01
28
Hinge
1319-1173-01
29
Handle
1319-1175-01
30
Screw
083-509-01
31
Plate
1319-1158-01
32
Rubber Gasket
1319-1160-01
33
Gasket
1319-1178-01
34
Washer
9699-0056-02
35
Cover nut
1319-1177-01
37
Gas Spring
1319-1132-01
38
Hinge
1319-1133-01
40
Door Lock-Lh
1319-1148-01
41
Door Handle W Keys
Mednyckel/With keys
1319-1143-01
44
Bolt
1319-1147-01
46
Hinge
1319-1133-01
47
Headlamp-Lh
1319-1102-01
48
Mirror Arm, Rh
1319-1123-01
49
Mirror Arm, Lh
1319-1124-01
