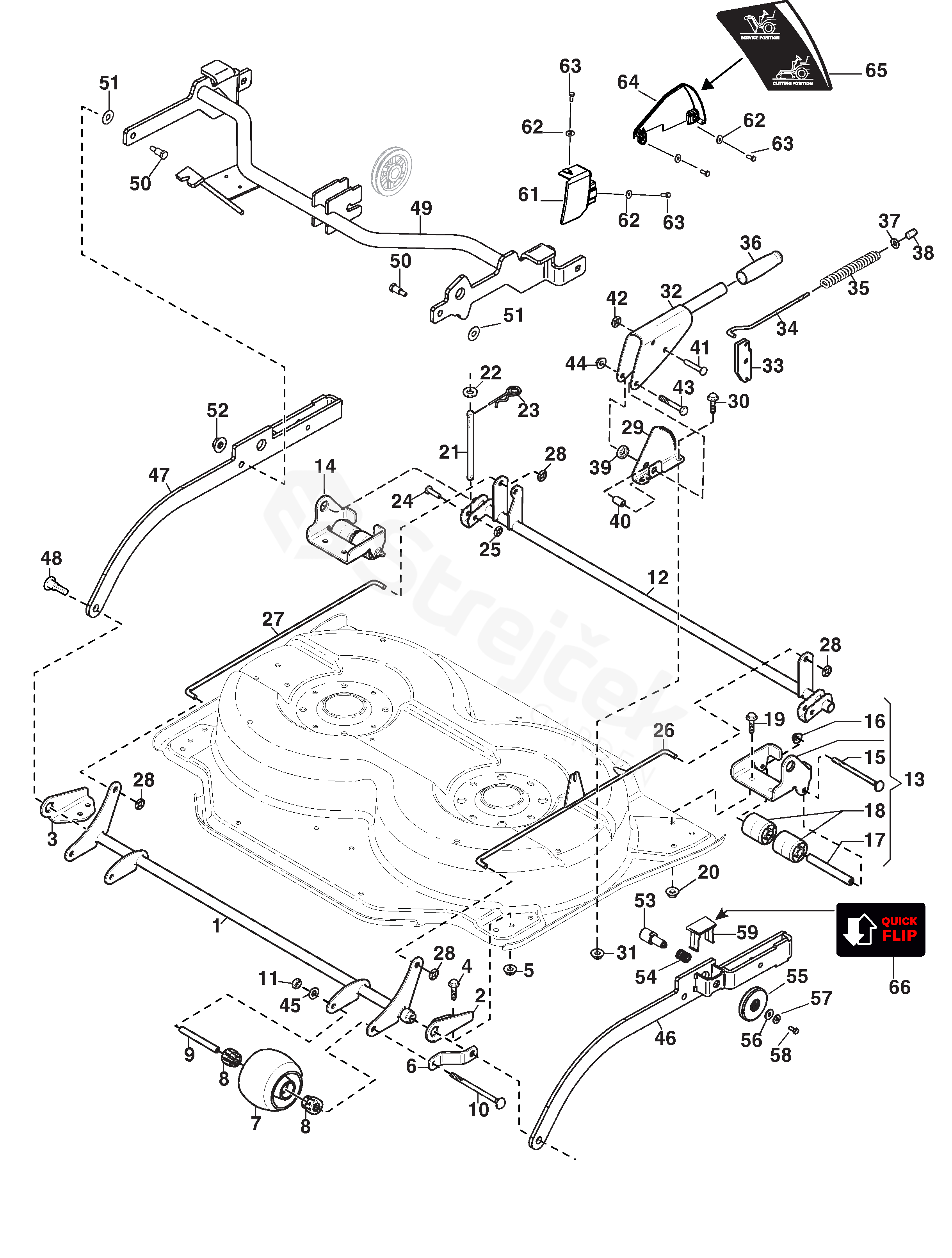

Spare parts - Partlist - Deck Park 85 Combi QF Deck Park 85 Combi QF (2016) - Controls

Everything for your machines

Deck Park 85 Combi QF Deck Park 85 Combi QF (2016)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 85 Combi QF (2016)

1	Front Axle-Yellow	1134-6275-01
2	Bracket Front-Lh (Yellow)	1134-6214-01
3	Bracket Front-Rh (Yellow)	1134-6214-02
4	Screw	112800815/0
5	Nut	112154220/0
6	Guide-Grey	387318275/0
7	Wheel	1134-4284-01
8	Bearing	1134-4319-01
9	Wheel Axle	1134-4318-01
10	Screw	9897-0813-02
11	Nut	112155000/0
12	Rear Axle-Yellow	1134-6197-01
13	Roller-Lh W.Bracket Inkl. pos 15 - 18	1134-6282-01
14	Roller-Rh W.Bracket Inkl. pos 15 - 18	1134-6282-02
15	Screw	9897-0813-02
16	Nut	112154220/0
17	Wheel Axle	1134-4318-01
18	Support Rollers Sats 2 st/kit of 2	1134-9126-01
19	Screw	112800815/0
20	Nut	112154220/0
21	Pin	137510321/0
22	Washer	9699-0104-02
23	Spring Pin	9598-2001-02
24	Rivet	9646-0098-22
25	Crown Fastener	112604899/0
26	Push Rod, Left	387000309/0
27	Push Rod, Right	137033105/0
28	Washer	112604903/0
29	Height Adjust Quadrant	1137-0259-01
30	Screw	112800815/0
31	Nut	112154220/0
32	Height Adjust Lever-Grey	387318273/0
33	Catch Assy	1134-6254-01
34	Push rod	1134-5444-01
35	Spring	1134-5445-01
36	Handle	1134-5503-01
37	Washer	9699-0087-02
38	Locking Knob	1134-3051-01
39	Spacer	1134-6286-03
40	Spacer	1134-1565-16
41	Rivet	9646-0105-22
42	Lock washer	9672-0006-02
43	Screw	112691400/0
44	Nut	112155000/0
45	Washer	9699-0028-02
46	Grey Mower Deck Arm, Left	387785233/0
47	Grey Mower Deck Arm, Right	387785231/0
48	Shoulder Bolt	1134-6279-01
49	Rear Axle-Yellow	387800021/1
50	Pin	137510305/0
51	Antifriction Washer	322672151/0
52	Nut	112154210/0
53	Pin	137510306/0
54	Spring	137430104/0
55	Knob	137394203/0
56	Washer	112523040/0
57	Grower	112582101/0
58	Screw	112727802/0
59	Cap	337394202/0
61	Belt cover	337060026/0
62	Washer	112523040/0
63	Screw	9893-0616-16
64	Belt cover	337060025/0
65	Label	114369577/0
66	Label Quick Flip	114369309/0
