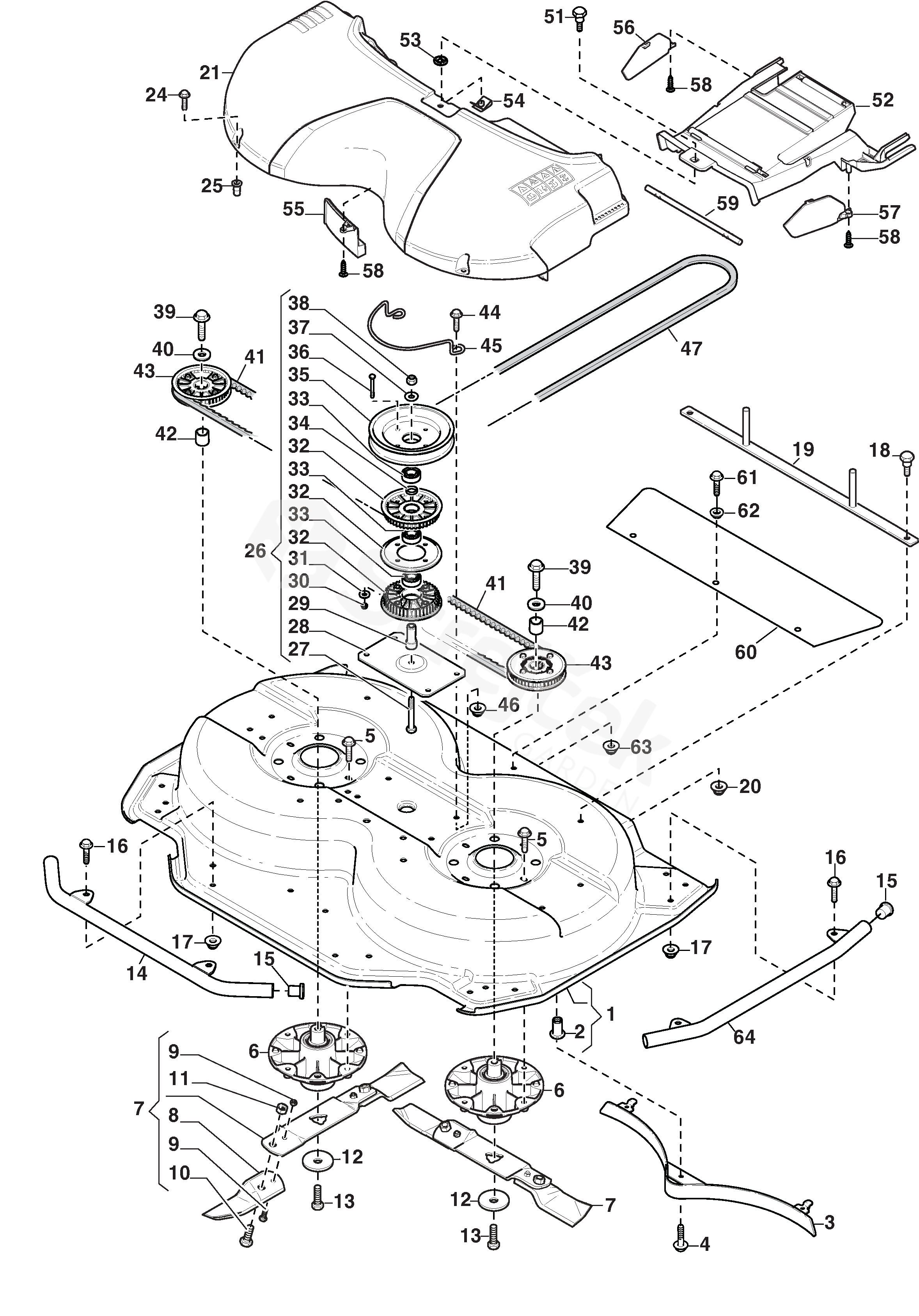

Spare parts - Partlist - Deck Park 95 Combi Deck Park 95 Combi (2015) - Transmission and Blades

Everything for your machines

Deck Park 95 Combi Deck Park 95 Combi (2015)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 95 Combi (2015)

1	Casing-Yellow 95C	1134-6190-01
2	Nut	1134-5595-01
3	Mulch Plug 95C	1134-6229-01
4	Screw	9959-0820-16
5	Screw	9945-0825-16
6	Bearing Box Assy	1134-5831-01
7	Blade Bar Assy (95C) Sats 2 st/kit of 2	1134-9117-01
8	Blade Kit Assy 2 knivar/2 blade tips	1134-9119-01
9	Shear Bolt Kit	1134-9054-01
10	Bolt 7/16” UNF	1134-6311-01
11	Nut 7/16” UNF	1134-6312-01
12	Washer	1134-6211-01
13	Screw	112692395/1
14	Front Guard Tube-Grey	1134-6208-01
15	End Plug, Grey	9403-0025-80
16	Screw	112800815/0
17	Nut	112154220/0
18	Shoulder screw	1134-0240-01
19	Bracket	1137-1082-01
20	Nut	112154220/0
21	Transmission Cover-Grey	1134-6280-04
24	Screw	9945-0825-16
25	Nut	1134-5595-01
26	Pulley Inkl. pos 31 - 42	1137-1149-01
27	Screw	9997-1070-12
28	Bracket	1134-6209-01
29	Shaft	1134-6205-02
30	Lock Nut	9747-0631-02
31	Washer	9699-0060-02
32	Toothed Belt Pulley	1134-9128-02
33	Ball Bearing	9549-0019-00
34	Spacer H = 1.5 mm	1134-3725-06
35	Pulley Ø = 154 mm	1137-0013-01
36	Screw	9997-0650-12
37	Washer	9699-0030-02
38	Nut	9731-1031-22
39	Screw	112692395/1
40	Washer	1134-5406-01
41	Toothed Belt	9585-0164-01
42	Spacer	1134-5400-04
43	Toothed Belt Pulley Sats 2 st/kit of 2	1134-9127-01
44	Screw	9959-0820-16
45	Belt Guide	1134-6431-01
46	Nut	112154220/0
47	V-Belt 9585-0198-01 2WD	1134-9148-01
51	Screw	1134-0240-00
52	Belt cover	337600002/0
53	Starlock	9675-0016-02
54	Nut	1134-4620-02
55	Belt cover	337600006/0
56	Belt cover	337600004/0
57	Belt cover	337600005/0
58	Screw	9838-8822-19
59	Pin	1137-1090-01
60	Rubber Guard	1134-6281-02
61	Screw	112800815/0
62	Flange Washer	1134-4185-01
63	Nut	112154220/0
64	Side Guard Tube-Grey 95C	1134-6222-01
