DECK PARK 95 C/2+4W DECK PARK 95 C/2+4WD (ANSI) (2010)
>

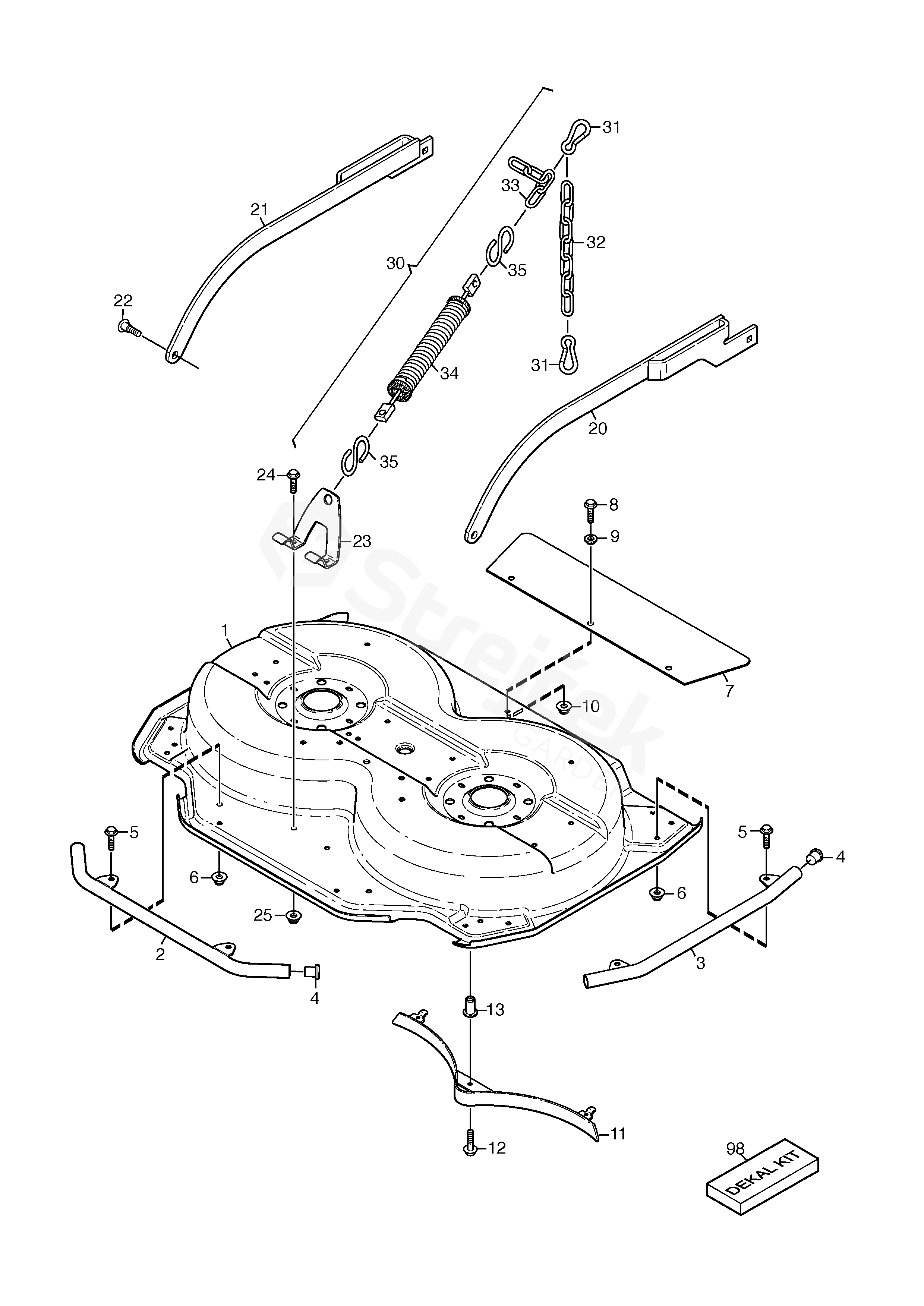

Frame
Back to
DECK PARK 95 C/2+4W
DECK PARK 95 C/2+4WD (ANSI) (2010)
Frame
DECK PARK 95 C/2+4W
DECK PARK 95 C/2+4WD (ANSI) (2010)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
DECK PARK 95 C/2+4WD (ANSI) (2010)
1
Casing-Red 95C
Inkl. pos 13 (3 st)
1134-6190-03
2
Front Guard Tube-Black
1134-6208-02
3
Side Guard Tube-Grey 95C
1134-6222-01
4
End Plug, Black
9403-0025-70
7
Rubber Guard
1134-6281-02
9
Flange Washer
1134-4185-01
10
Nut
9739-0831-22
11
Mulch Plug 95C
1134-6229-01
12
Screw
9959-0816-16
13
Nut
1134-5595-01
20
Grey Mower Deck Arm, Left
1134-6237-03
21
Grey Mower Deck Arm, Right
1134-6237-04
22
Shoulder Bolt
1134-6279-01
23
Lift Bracket-Grey
1134-6315-01
30
Lift Spring Assy
Inkl. pos 31 - 35
1134-6362-01
31
Snap Hook
1134-5528-01
32
Chain
7 links
1134-6368-02
33
Chain
4 links
1134-6368-01
34
Spring
1134-6365-03
35
S-Hook
1134-4623-01
98
Label
1134-5594-02
99
Owner’s Manual
Ej ill/not ill.
8211-7000-90
