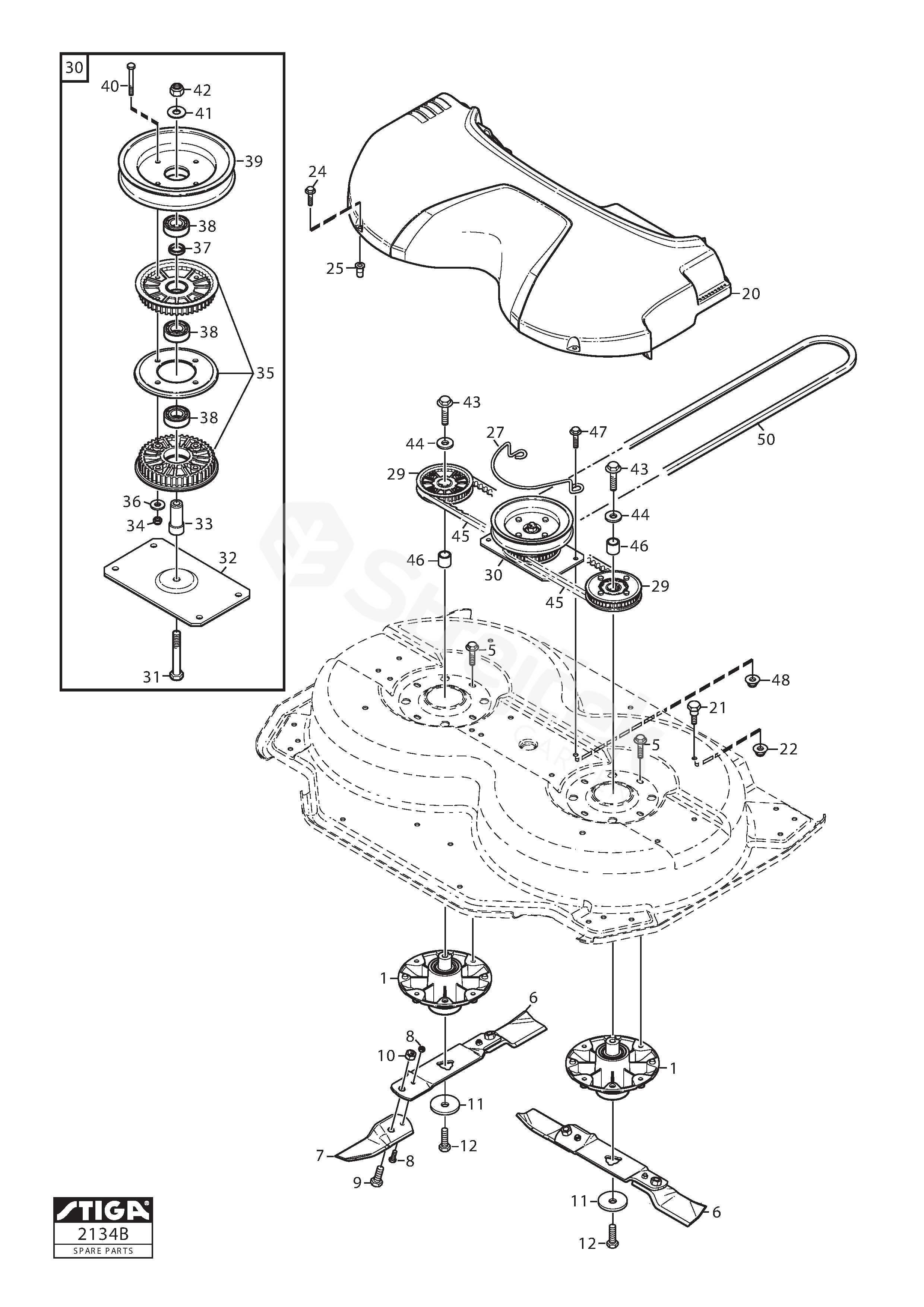

Spare parts - Partlist - DECK PARK 95 C/2+4W DECK PARK 95 C/2+4WD (ANSI) (2010) - Transmission

Everything for your machines

DECK PARK 95 C/2+4W DECK PARK 95 C/2+4WD (ANSI) (2010)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For DECK PARK 95 C/2+4WD (ANSI) (2010)

1	Bearing Box Assy	1134-5831-01
6	Blade Bar Assy (95C) Sats 2 st/kit of 2	1134-9117-01
7	Blade Kit Assy 2 knivar/2 blade tips	1134-9119-01
8	Shear Bolt Kit	1134-9054-01
9	Bolt 7/16" UNF	1134-6311-01
10	Nut 7/16" UNF	1134-6312-01
11	Washer	1134-6211-01
12	Screw	9997-1060-12
20	Transmission Cover-Grey 2WD	1134-6280-01
21	Shoulder screw	1134-0240-01
22	Nut	9739-0831-22
24	Screw	9945-0825-16
25	Nut	1134-5595-01
27	Belt Guide	1134-6431-01
29	Toothed Belt Pulley Sats 2 st/kit of 2	1134-9127-01
30	Toothed Pulley Assy (P95C) Inkl. pos 31 - 42	1137-0116-01
31	Screw	9997-1070-12
32	Bracket	1134-6209-01
33	Shaft	1134-6205-02
34	Lock Nut	9747-0631-02
35	Toothed Belt Pulley	1134-9128-02
36	Washer	9699-0060-02
37	Spacer H = 1.5 mm	1134-3725-06
38	Ball Bearing	9549-0019-00
39	Pulley Ø = 154 mm	1137-0013-01
40	Screw	9997-0650-12
41	Washer	9699-0030-02
42	Nut	9731-1031-22
44	Washer	1134-5406-01
45	Toothed Belt	9585-0164-01
46	Spacer	1134-5400-04
47	Screw	9959-0820-16
50	V-Belt Replaced by Service Code: 1134-9147-01	9585-0197-01
