Spare parts
Everything for your machines
Spare parts
>
STIGA
>
Front Mowers
>
Deck Park 95 Combi El Deck Park 95 Combi El (2014)
>
Frame
Back to
Deck Park 95 Combi El
Deck Park 95 Combi El (2014)
Frame
Deck Park 95 Combi El
Deck Park 95 Combi El (2014)

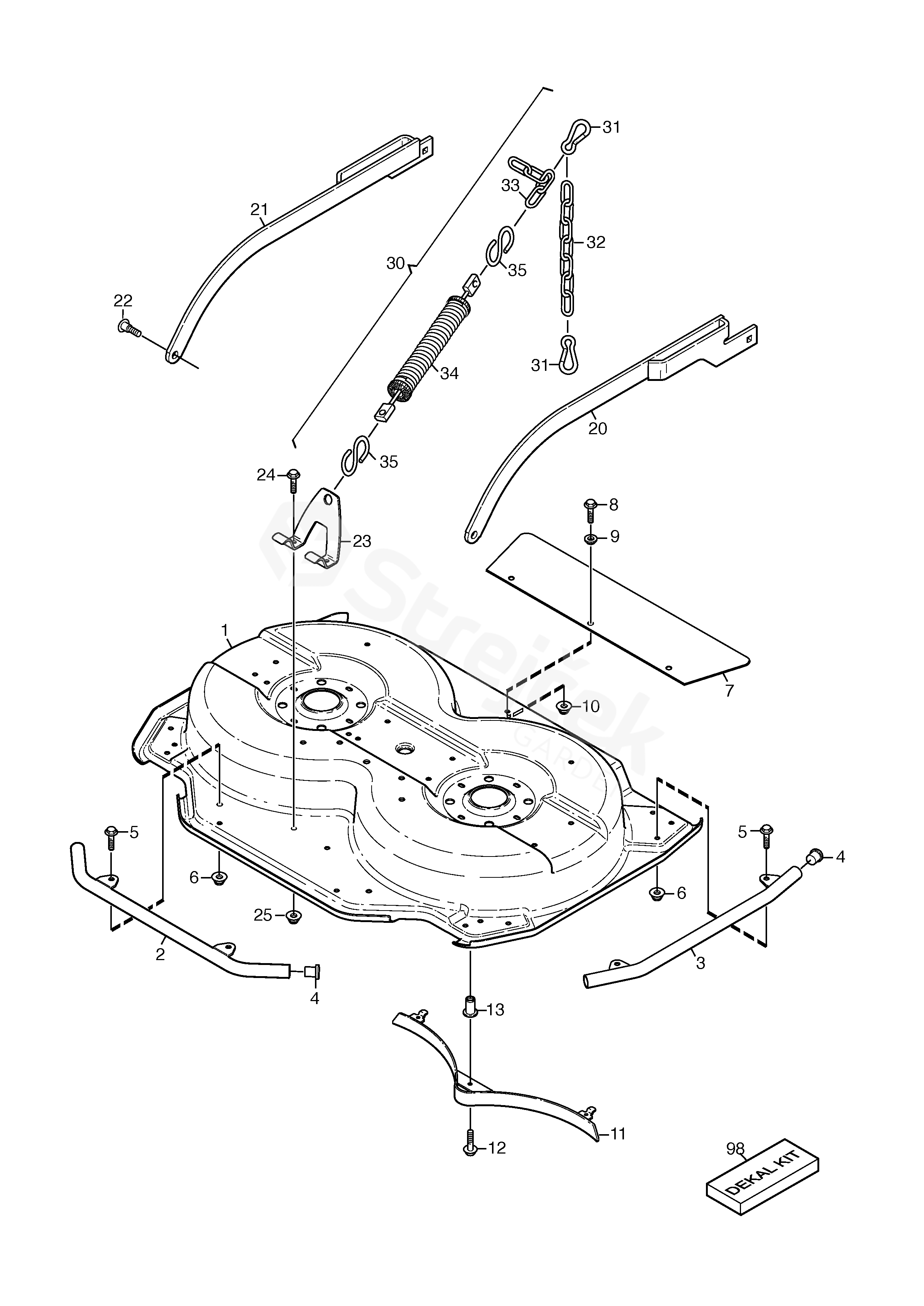

Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Deck Park 95 Combi El (2014)
1
Casing-Red 95C
Inkl. pos 13 (3 st)
1134-6190-03
2
Front Guard Tube-Grey
1134-6208-01
3
Side Guard Tube-Grey 95C
1134-6222-01
4
End Plug, Black
9403-0025-70
7
Rubber Guard
1134-6281-02
9
Flange Washer
1134-4185-01
10
Nut
9739-0831-22
11
Mulch Plug 95C
1134-6229-01
12
Screw
9959-0816-16
13
Nut
1134-5595-01
20
Grey Mower Deck Arm, Left
1134-6237-03
21
Black Mower Deck Arm, Right
1134-6237-10
22
Shoulder Bolt
1134-6279-01
23
Lift Bracket-Grey
1134-6315-01
30
Lift Spring Assy
Inkl. pos 31 - 35
1134-6362-01
31
Snap Hook
1134-5528-01
32
Chain
7 links
1134-6368-02
33
Chain
4 links
1134-6368-01
34
Spring
1134-6365-03
35
S-Hook
1134-4623-01
98
Label
1134-5594-02
99
Owner’s Manual
Ej ill/not ill.
8211-7000-90
