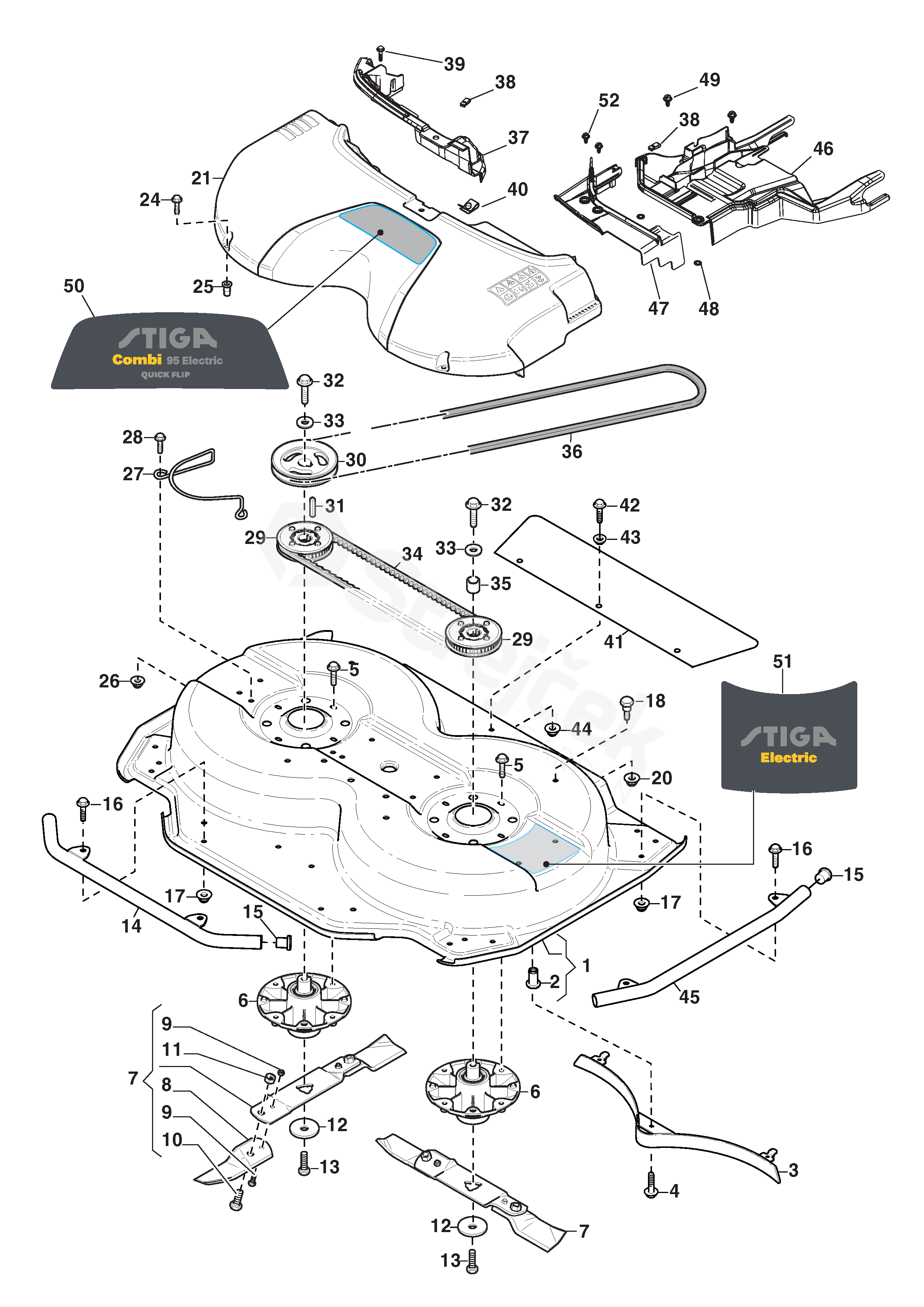

Spare parts - Partlist - Deck Park 95 Combi EL QF Deck Park 95 Combi EL QF (2017) - Transmission and Blades

Everything for your machines

Deck Park 95 Combi EL QF Deck Park 95 Combi EL QF (2017)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 95 Combi EL QF (2017)

1	Casing-Yellow 95C	387561501/0
2	Nut	1134-5595-01
3	Mulch Plug 95C	1134-6229-01
4	Screw	9959-0820-16
5	Screw	9945-0825-16
6	Bearing Box Assy	1134-5831-01
7	Blade Bar Assy (95C) Sats 2 st/kit of 2	1134-9117-01
8	Blade Kit Assy 2 knivar/2 blade tips	1134-9119-01
9	Shear Bolt Kit	1134-9054-01
10	Bolt 7/16” UNF	1134-6311-01
11	Nut 7/16” UNF	1134-6312-01
12	Washer	1134-6211-01
13	Screw	112692395/1
14	Front Guard Tube-Grey	387869259/0
15	End Plug, Grey	9403-0025-80
16	Screw	112800815/0
17	Nut	112154220/0
18	Shoulder screw	1134-0240-01
20	Nut	112154220/0
21	Belt cover	337060024/0
24	Screw	9945-0825-16
25	Nut	1134-5595-01
26	Nut	112154210/0
27	Belt Guide	1134-6429-01
28	Screw	9959-0820-16
29	Toothed Belt Pulley Sats 2 st/kit of 2	1134-9127-01
30	Pulley Ø = 161 mm	1137-0011-01
31	Key	9600-0168-01
32	Screw	112692395/1
33	Washer	1134-5406-01
34	Toothed Belt contains 9585-0162-01	1134-9183-01
35	Spacer	1134-5400-04
36	V-Belt contains 135062025/0	1134-9187-01
37	Belt cover	337060020/0
38	Plate	112437504/0
39	Screw	112728440/0
40	Nut	1134-4620-02
41	Rubber Guard	1134-6281-02
42	Screw	112800815/0
43	Flange Washer	1134-4185-01
44	Nut	112154220/0
45	Side Guard Tube-Grey 95C	387869261/0
46	Belt cover	337060021/0
47	Belt cover	337600038/0
48	Crown Fastener	112604899/0
49	Screw	125943011/0
50	Label Combi 95 Electric Quick Flip	114369311/0
51	Label Stiga Electric	114368564/0
