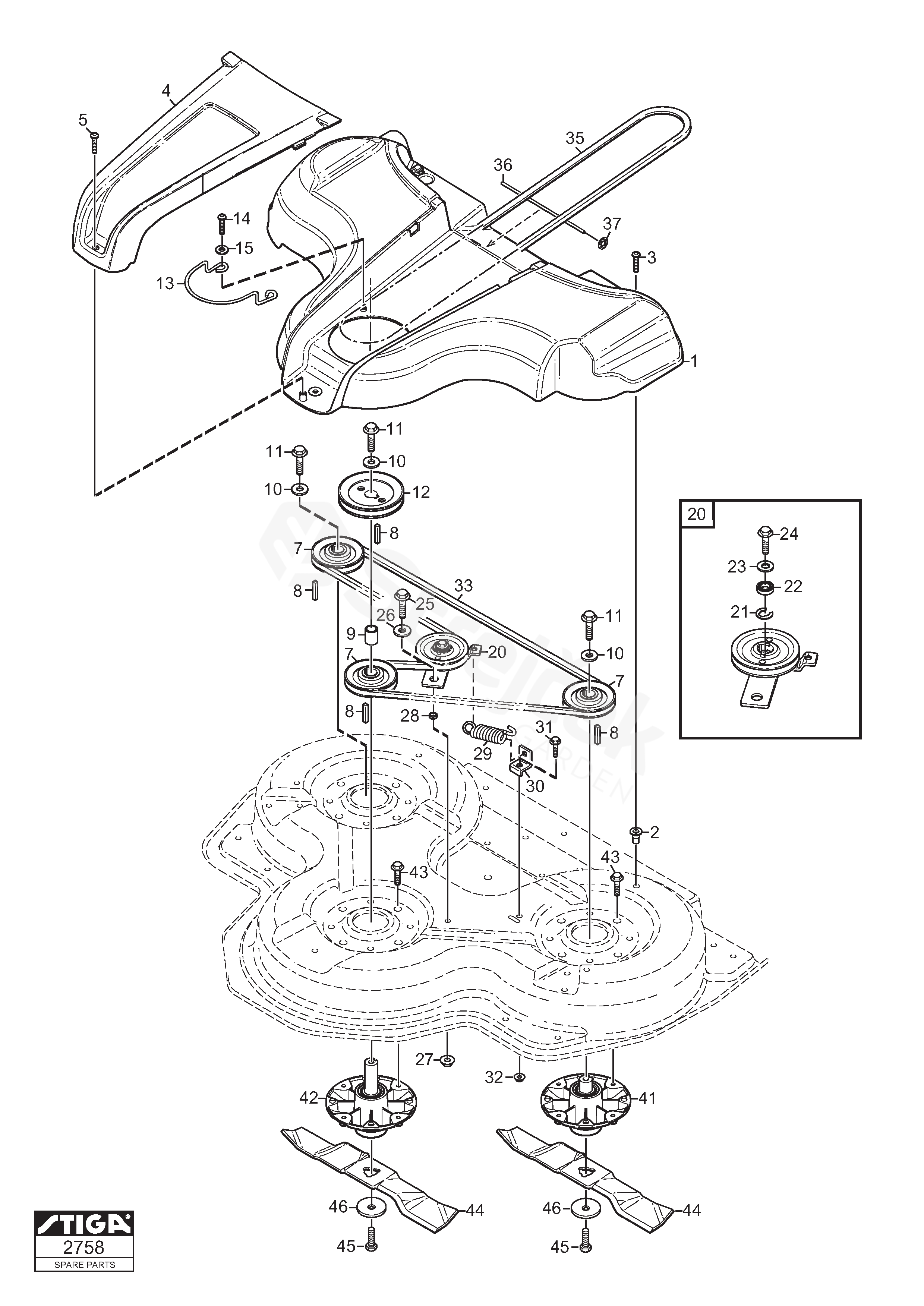

Spare parts - Partlist - Deck Park 100 Combi 3 Deck Park 100 Combi 3 (2014) - Transmission-blades

Everything for your machines

Deck Park 100 Combi 3 Deck Park 100 Combi 3 (2014)

Hover mouse on parts list

Wheel: Zoom, left button: Movement

Other parts For Deck Park 100 Combi 3 (2014)

1	Transmission Cover	1137-0156-01
2	Nut	1134-5595-01
3	Screw	9945-0825-16
4	Cover	1137-0157-01
7	Pulley	1137-0015-01
8	Key	9600-0171-01
9	Spacer	1134-5400-03
10	Washer	1134-5406-01
11	Screw	9997-1060-12
12	Pulley Ï = 140 mm	1137-0016-01
13	Belt Guide	1137-0158-01
14	Screw	9838-9516-12
15	Washer	9699-0087-02
20	Tension Roller Assy Inkl. pos 21 - 24	1134-7611-01
21	Circlip	9651-0035-04
22	Bearing	9549-0061-01
23	Washer	9699-0056-02
24	Screw	9945-0816-16
25	Screw	9959-0816-16
26	Washer	9699-0109-02
27	Nut	9739-0831-22
28	Spacer	1134-7618-01
29	Spring	1134-0327-00
30	Spring	1134-5415-01
33	Drive Belt Replaced by Service Code: 1134-9066-01	9585-0125-01
35	V-Belt Replaced by Service Code: 1134-9157-01	9585-0206-01
36	Rod	1137-0171-01
37	Starlock	9675-0009-02
41	Bearing Box Assy	1134-5831-01
42	Bearing Box Assy	1134-5831-02
44	Blade Kit (100 Combi3) Sats 3 st/kit of 3	1134-9158-01
46	Washer	1134-6211-01
