STIGA
>
Front Mowers
>
Cuttingdeck PARK 105 COMBI EL QF Cuttingdeck PARK 105 COMBI EL QF (2020)
>
Controls
Back to
Cuttingdeck PARK 105 COMBI EL QF
Cuttingdeck PARK 105 COMBI EL QF (2020)
Controls

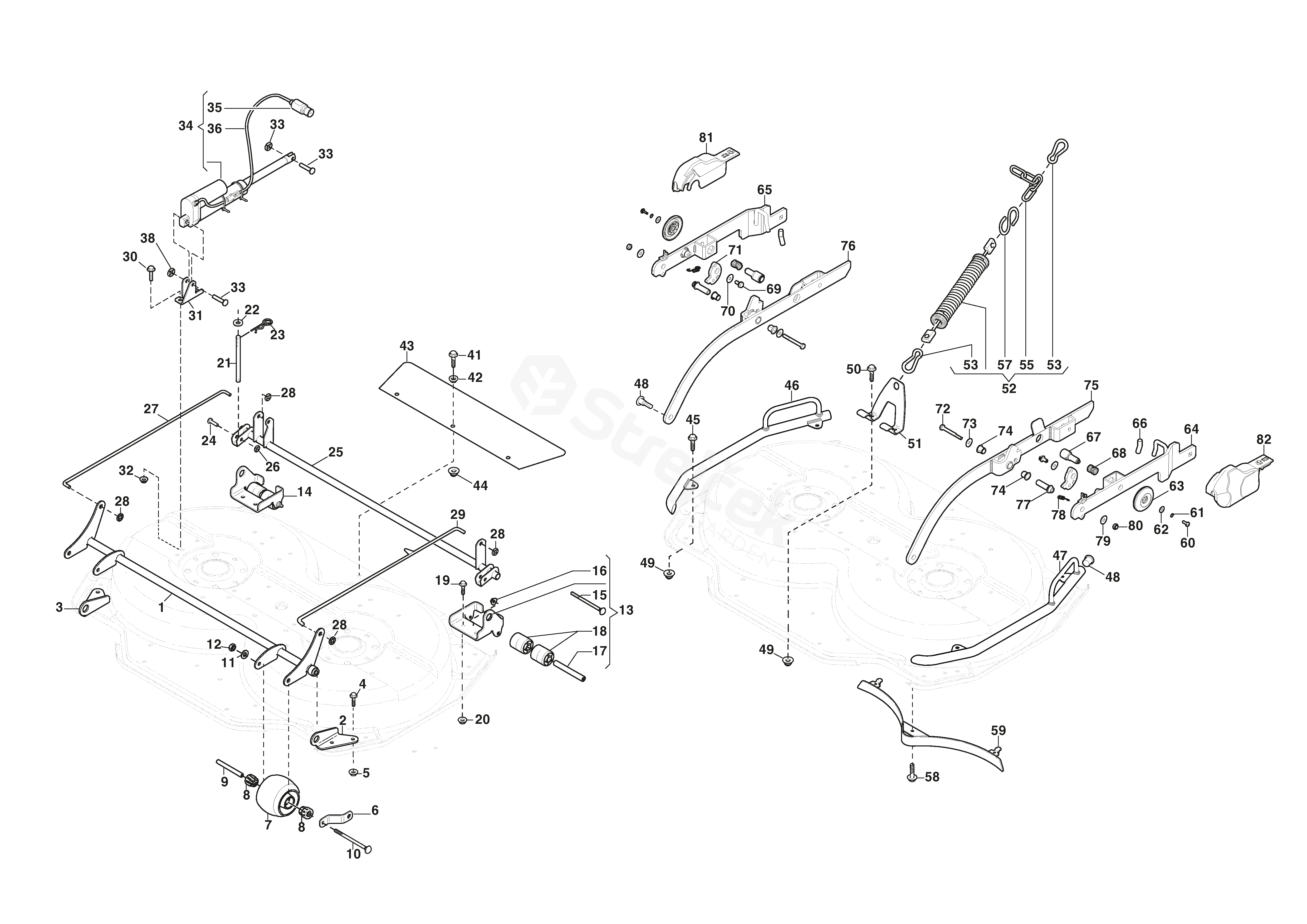

Cuttingdeck PARK 105 COMBI EL QF
Cuttingdeck PARK 105 COMBI EL QF (2020)
Hover mouse on parts list
Wheel:
Zoom, left button:
Movement
Other parts
For
Cuttingdeck PARK 105 COMBI EL QF (2020)
1
Front Axle-Yellow
1134-6275-01
2
Bracket Front-Lh (Yellow)
1134-6215-01
3
Bracket Front-Rh (Yellow)
1134-6215-02
4
Screw
112800815/0
5
Nut
112154220/0
6
Guide-Grey
387318275/0
7
Wheel
1134-4284-01
8
Bearing
1134-4319-01
9
Wheel Axle
1134-4318-01
10
Screw
9897-0813-02
11
Washer
9699-0028-02
12
Nut
112155000/0
13
Roller-Lh W.Bracket
1134-6282-01
14
Roller-Rh W.Bracket
1134-6282-02
15
Screw
9897-0813-02
16
Nut
9739-0831-22
17
Wheel Axle
1134-4318-01
18
Support Rollers
1134-9126-01
19
Screw
112800815/0
20
Nut
112154220/0
21
Stud
1134-6198-01
22
Washer
9699-0104-02
23
Spring Pin
9598-2001-02
24
Rivet
9646-0098-22
25
Rear Axle-Yellow
1134-6197-01
26
Crown Fastener
112604899/0
27
Push Rod, Right
1134-6246-01
28
Washer
112604903/0
29
Push Rod, Left
From S/N 19JA1FMC000299
387000319/0
30
Screw
112800815/0
31
Bracket
1134-6192-01
32
Nut
112154220/0
33
Rivet
9646-0098-22
34
Electric Lifter
118001004/1
35
Male Terminal
1134-6182-01
36
Cable
387149301/0
38
Crown Fastener
112604899/0
41
Screw
112800815/0
42
Flange Washer
1134-4185-01
43
Rubber Guard
1134-6281-03
44
Nut
112154220/0
45
Screw
112800815/0
46
Side Guard Tube-Grey 105C
From S/N 19JA1FMC000299
387869541/0
47
Side Guard Tube-Grey 105C
From S/N 19JA1FMC000299
387869543/0
48
End Plug, Grey
9403-0025-80
49
Nut
112154220/0
50
Screw
112800815/0
51
Lift Bracket-Grey
387773535/0
53
Snap Hook
1134-5528-01
55
Chain
1134-6368-01
57
S-Hook
1134-4623-01
58
Screw
9959-0820-16
59
Mulch Plug 105C
1134-6231-01
60
Screw
112727802/0
61
Grower
112582101/0
62
Washer
112523040/0
63
Knob
337394207/0
64
Bracket
387773573/0
65
Bracket
387773571/0
67
Pin
137510306/0
68
Spring
137430104/0
69
Screw
112800815/0
70
Washer
112523060/0
71
Spike
337022757/0
72
Screw
112691600/0
73
Washer
112523060/0
74
Bushing
137038011/0
75
Cutting Deck Arm Assy Lh
From S/N 19JA1FMC000299
387106291/0
76
Cutting Deck Arm Assy Rh
From S/N 19JA1FMC000299
387106289/0
77
Pin
137510334/0
78
Spring
137430113/0
79
Washer
112523060/0
80
Nut
112155000/0
81
Guard
337600049/0
82
Guard
337600050/0
